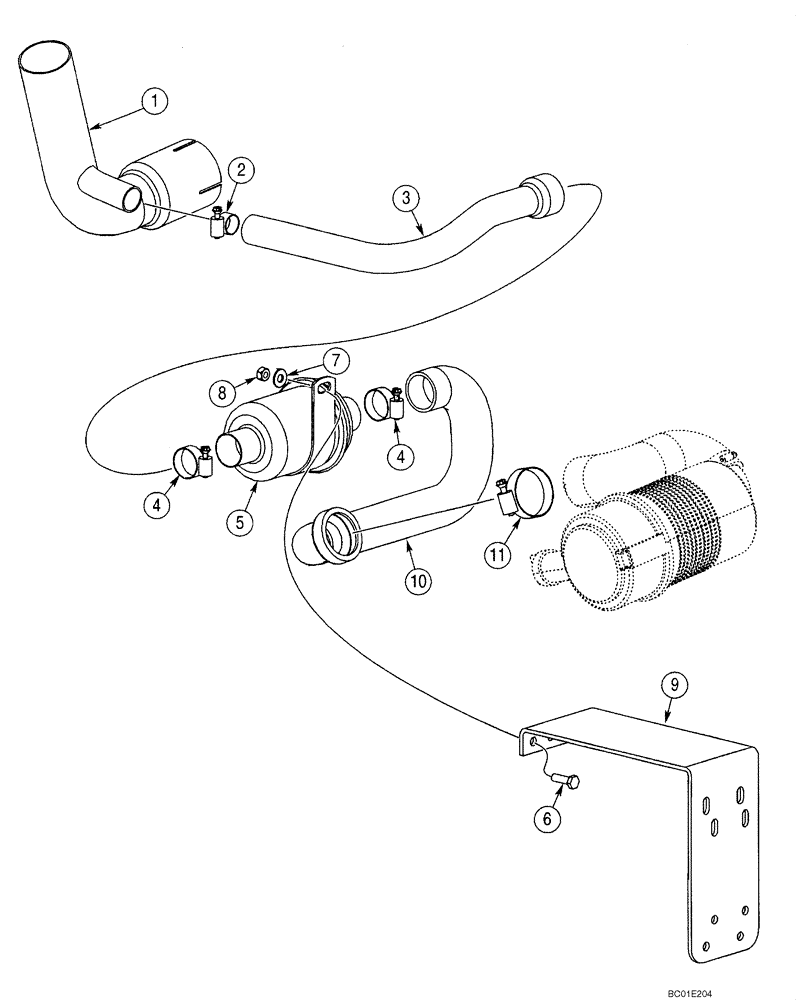

Запчасти Case 40XT (02-05) - ASPIRATOR (02) - ENGINE

1

434734A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Extension

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

3

412538A1

HOSE

Aspirator Exaust

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

5

406089A2

VALVE

Check

1шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

8

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

9

411211A1

BRACKET

1шт.

10

411210A1

HOSE

Aspirator Intake

1шт.

11

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.
