Запчасти Case 40XT (08-21) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

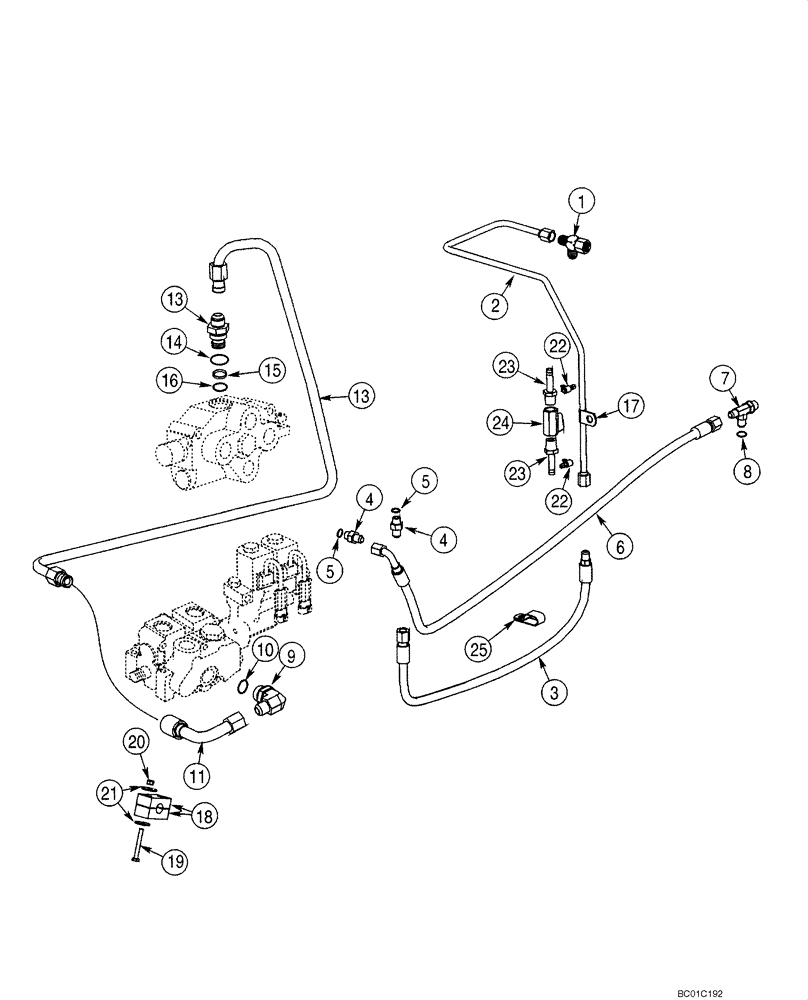

Схема запчастей Case 40XT - (08-21) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS
9
1
22
3
13
2
5
17
21
14
25
4
20
24
10
23
22
6
16
7
4
19
5
23
18
13
8
15
11

Артикул

Название

Примечание

Количество

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Attaches To 404281A1; See Figure 06-03

1шт.

2

384060A2

TUBE,9.53 mm OD, 326, 320 mm Length

Charge Pressure

1шт.

3

390445A2

HOSE ASSY.

945 mm, 37-1/4 in.; Charge Pressure

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

2шт.

6

389542A2

HOSE ASSY.

1795 mm, 70-21/32 in.; Pilot Return

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

For Attaching Parts See Figure 06-03; Incl. 8

1шт.

9

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

435992A1

HOSE ASSY.

385 mm, 15-5/32 in.; Front Power Beyond

1шт.

12

436053A1

TUBE

Front Power Beyond

1шт.

13

129878A1

FITTING

Sleeve Assy; Attaches To H674465; See Figure 08-15; Incl. 14 - 16

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

A52424

BACK-UP RING

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4" Tube

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

18

254830A1

CLAMP BRACKET

2 Piece

1шт.

19

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

20

832-41406

NUT,M6 x 1, Cl 8

2шт.

21

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

23

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8 stem x PT

2шт.

24

397431A1

VALVE

Poppet

1шт.

25

D47783

CLAMP

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 25
