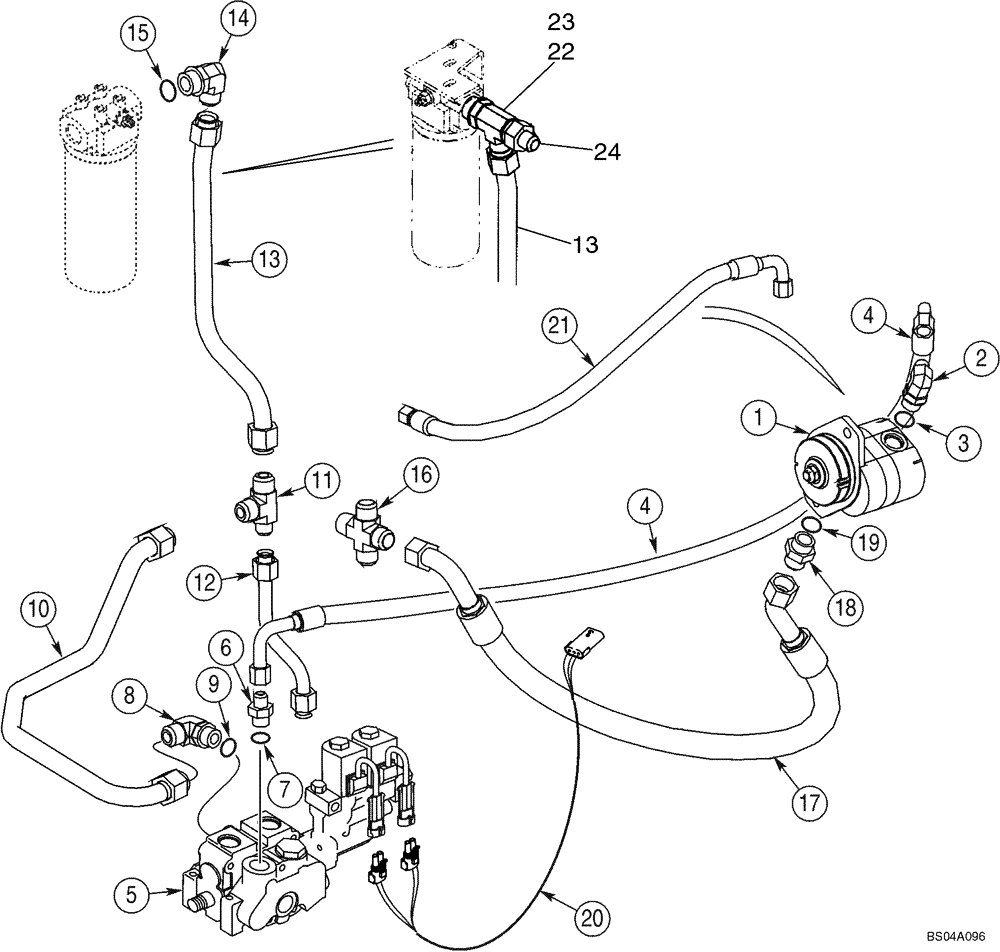

Запчасти Case 40XT (08-20) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

1

395712A1

PUMP, HYDRAULIC

High Flow; Component Parts Not Serviced Separately

1шт.

2

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

389535A1

HOSE ASSY.

624 mm, 24-5/8 in.; Gear Pump To Valve

1шт.

5

372194A2

VALVE

Control, High Flow; See Figure 08-25

1шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 or; Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

411244A2

TUBE

return

1шт.

11

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

Tee

1шт.

12

411246A2

TUBE

Lower Filter; For Attaching Parts See Figure 06-02, Ref 23

1шт.

13

411248A1

TUBE

Upper Filter

1шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

391762A1

FITTING

1шт.

17

389540A1

HOSE ASSY.

1060 mm, 41-3/4 in.; Suction

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

381005A1

HARNESS

High Flow; See Figure 04-09

1шт.

21

435654A1

HOSE ASSY.

850 mm, 33-15/32 in.; Pump To Loader Valve

1шт.

21

87422158

HOSE ASSY.

850 mm, 33-15/32 in.; Pump To Loader Valve; Replaces 435654A1

1шт.

22

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16 fl br x fl x Or; Incl. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

218-1705

REDUCER,37º, 1 5/16"-12, Fem x 1 1/16"-12 Male

1 X 3/4

1шт.
