Запчасти Case 40XT (08-17B) - CYLINDER - TILT (08) - HYDRAULICS

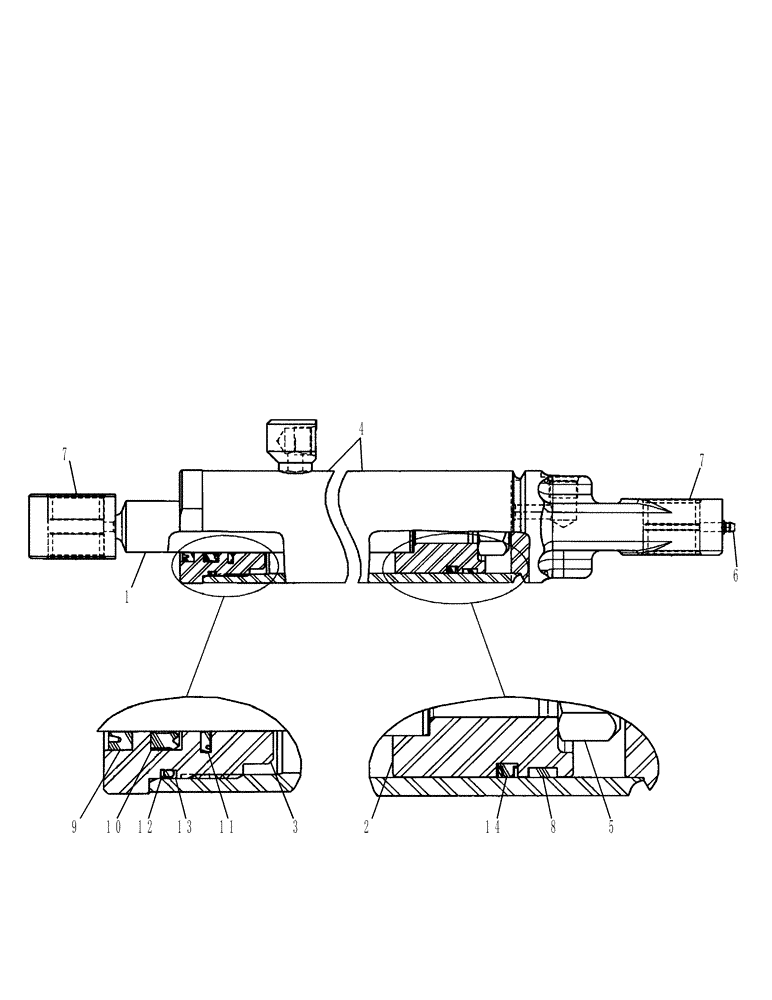

Схема запчастей Case 40XT - (08-17B) - CYLINDER - TILT (08) - HYDRAULICS
5
4
13
8
14
3
1
7
10
2
6
-
12
-
7
11
9

Артикул

Название

Примечание

Количество

87438183

CYLINDER ASSY.

Tilt; 2.50 Bore, 14.52 Stroke; Incl. 1 - 6 and Seal Kit 86640088 (Ref 8 - 14)

2шт.

87461812R

REMAN-HYD CYLINDER

40XT Reman for new P/N 87438183

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

1

87442320

PISTON

Rod, 1.38

1шт.

2

87442318

PISTON

1шт.

3

86640013

CYLINDER END CAP

2.5 x 1.38

1шт.

4

86611745

CYLINDER

1шт.

5

87301257

NUT,7/8"-14, GC

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

86640088

SEAL KIT

2.5 x 1.38; Incl. 7 - 13

1шт.

8

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

1шт.

9

86631609

WIPER SEAL,33.02mm ID x 47.73mm OD x 7.92mm Thk

1.38 Wiper

1шт.

10

86631606

SEAL,33.27mm ID x 48.84mm OD x 9.53mm Thk

1.38 Rod

1шт.

11

86631615

SEAL,34.54mm ID x 50.6mm OD x 3.12mm Thk

1.38 Buffer

1шт.

12

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

Backup

1шт.

13

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

14

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

2.5 Piston

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2 ea. Rod End and Tube End (Not Shown)

4шт.

Выбрано товаров: 19
