Запчасти Case 40XT (08-16B) - CYLINDER - LIFT (08) - HYDRAULICS

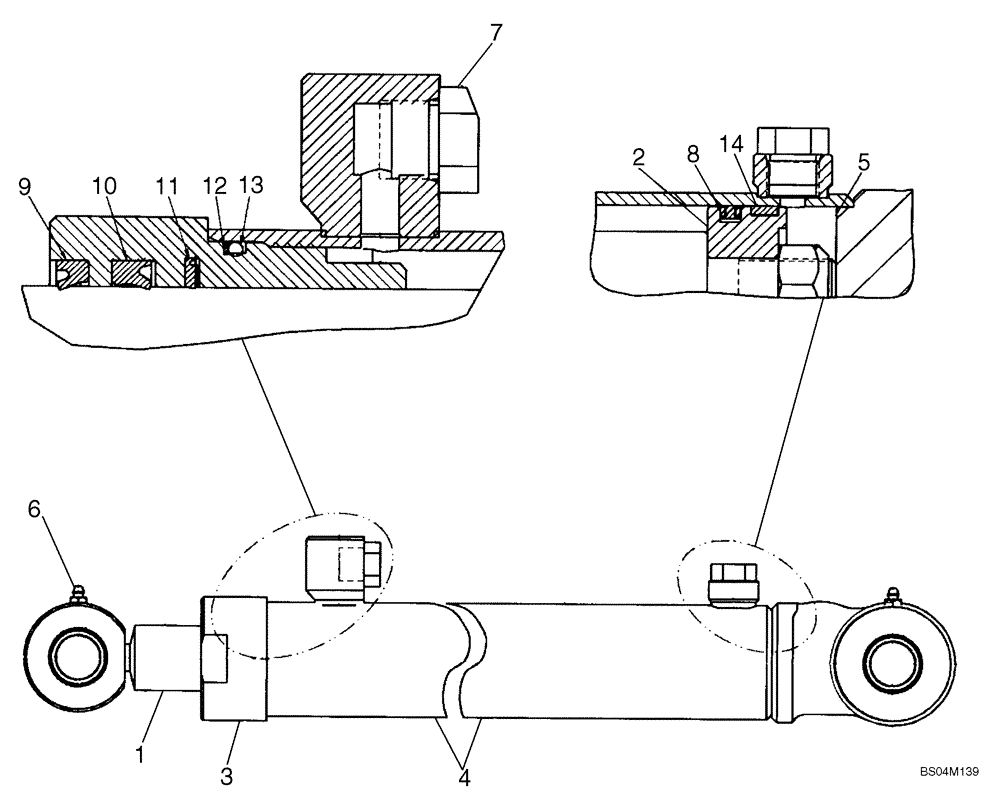

Схема запчастей Case 40XT - (08-16B) - CYLINDER - LIFT (08) - HYDRAULICS
1
8
10
7
12
14
11
13
3
5
9
6
4
2

Артикул

Название

Примечание

Количество

87438185

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 893mm Stroke

2.250 Bore, 35.16 Stroke; Incl. 1 - 7 And Seal Kit 86613644 (Ref 8 - 14)

2шт.

1

86611757

ROD

Piston, Incl. Bushings 86624451

1шт.

86624451

BUSHING

2шт.

2

771703

PISTON

2.25

1шт.

3

86611759

HEAD (CYLINDER)

1шт.

4

86611755

CYLINDER

Incl. Bushings 86624451

1шт.

86624451

BUSHING

2шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

214389

PLUG,3/4" - 16 ORB

1/2" OD Tube

2шт.

86613644

SEAL KIT

Seal, Incl. 8 - 14

1шт.

8

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

2.25

1шт.

9

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

1.5 Wiper

1шт.

10

86631607

SEAL,37.08mm ID x 52.58mm OD x 9.53mm Thk

1.5 Rod

1шт.

11

86631616

SEAL,37.85mm ID x 55.12mm OD x 3.12mm Thk

1.5 Buffer

1шт.

12

86502489

WASHER,54.08mm ID x 58.06mm OD x 1.09mm Thk

1шт.

13

510121

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

14

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

1шт.

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2 ea. Rod End and Tube End (Not Shown)

4шт.

Выбрано товаров: 19
