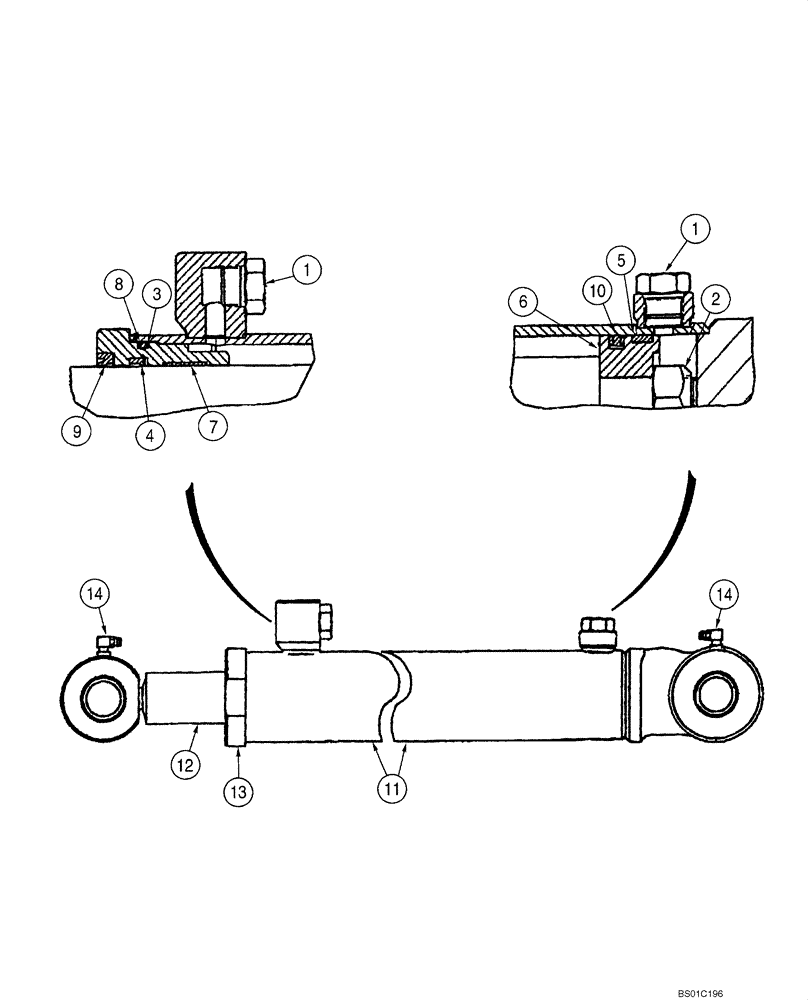

Запчасти Case 40XT (08-16) - CYLINDER - LOADER LIFT, NA, BSN JAF0374549 , EUROPE, BSN JAF0348068 (08) - HYDRAULICS

REF

INSTRUCTION

North America BSN JAF0374549 , European Models BSN JAF034806

1шт.

86614636

CYLINDER ASSY.

2-1/4 x 35-5/32; Incl. 86611754

2шт.

1

214389

PLUG,3/4" - 16 ORB

Includes O-Ring 237-6008; Replaces 214389

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" OD

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

510121

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

4

86631607

SEAL,37.08mm ID x 52.58mm OD x 9.53mm Thk

1шт.

5

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

Ring wear

1шт.

6

771703

PISTON

Piston

1шт.

7

86631616

SEAL,37.85mm ID x 55.12mm OD x 3.12mm Thk

1шт.

8

86502489

WASHER,54.08mm ID x 58.06mm OD x 1.09mm Thk

Ring Backup

1шт.

9

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

1шт.

10

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

Seal

1шт.

11

86611755

CYLINDER

Tube; Incl. Bushing G35361

1шт.

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

12

86611757

ROD

Piston; Incl. Bushing G35361

1шт.

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

13

86611759

HEAD (CYLINDER)

Cap

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Replaces 87415

2шт.

86613644

SEAL KIT

Seal; Incl. 3 - 5 and 7 - 10

1шт.
