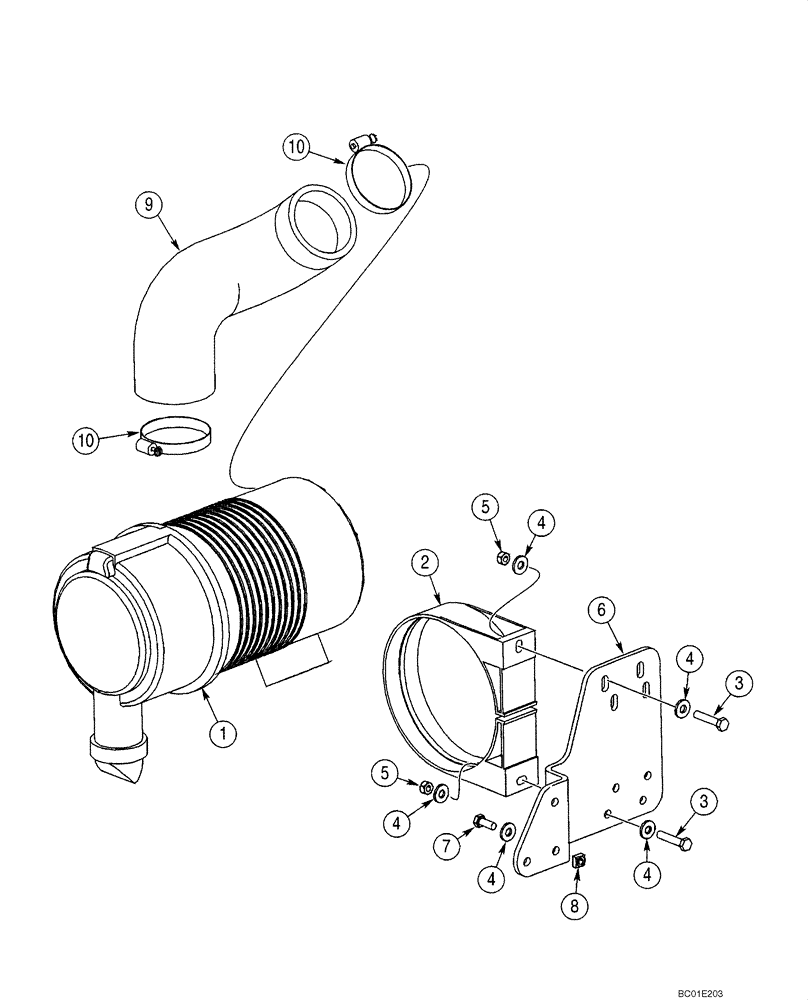

Запчасти Case 40XT (02-04) - AIR CLEANER - ENGINE (02) - ENGINE

1

382074A1

AIR CLEANER

Includes: Ref. 1A - 1F, Component Parts Not Illustrated Separately

1шт.

1a

NSS

NOT SOLD SEPARAT

BODY Air Cleaner

1шт.

1b

222425A1

AIR FILTER

Primary

1шт.

1c

222429A1

AIR FILTER

Secondary

1шт.

1d

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

1e

440831A1

FILTER COVER

1шт.

1f

236690A1

PLUG

1шт.

2

315052A1

BRACKET

1шт.

3

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

7шт.

5

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

6

384722A2

BRACKET

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

9

305507A1

INTAKE AIR HOSE,76.00 mm ID x 170.00 mm, SAE J200

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.
