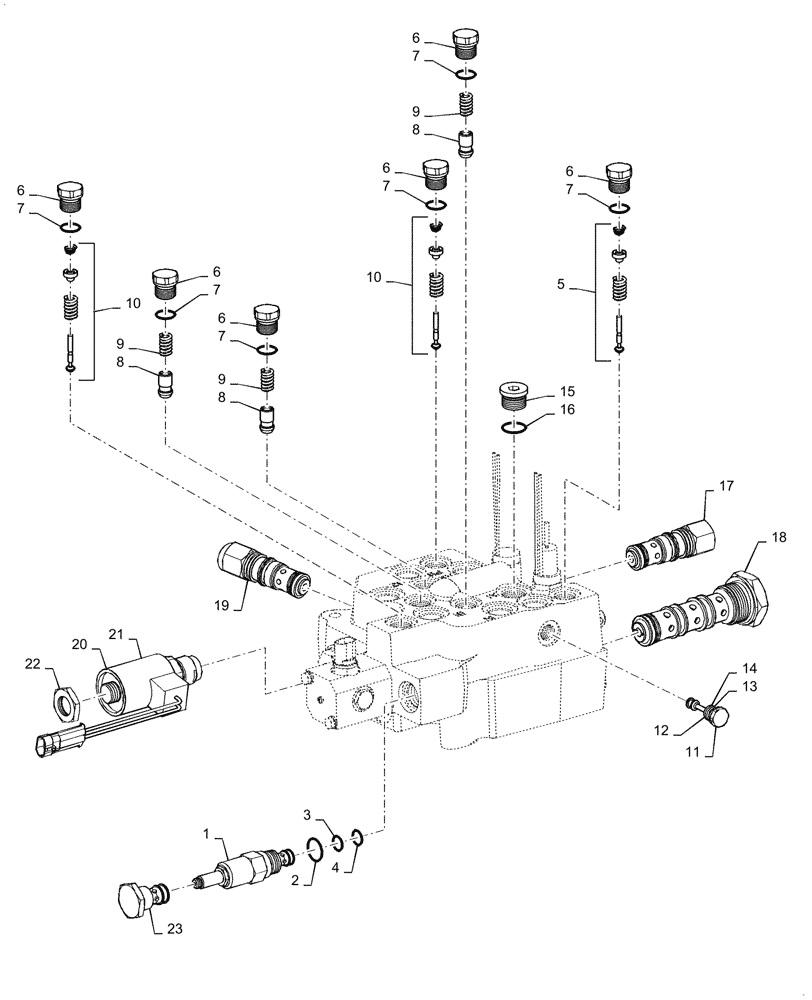

Запчасти Case 40XT (08-13) - VALVE ASSY, CONTROL - SELF-LEVELING, DUAL (08) - HYDRAULICS

409057A1

VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14

1шт.

409057A2

VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14; Replaces 409057A1

1шт.

409057A3

VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14; Replaces 409057A2; No Longer Available; Order 451496A1

1шт.

87431795

VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14; Replaces 409057A3; If Used

1шт.

451496A1

CONTROL VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14; Replaces 409057A3; If Used

1шт.

87431789

CONTROL VALVE

Control, Dual Self Level; Incl. Ref. 1 - 24; Incl. Fig. 08-13 - 08-14; Replaces 451496A1; If Used

1шт.

129842A2

VALVE, PRESSURE RELI

EF Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

G110098

KIT

Seal; Incl. 2 - 4

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

Ring; Backup

1шт.

4

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

5

383088A2

VALVE, PRESSURE RELI

EF 3800 psi; Component Parts Not Serviced Separately

3шт.

409025A1

PLUG,Hex, 3/4" - 16 ORB

Incl. Ref. 6 and 7

7шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

392956A1

VALVE POPPET

3шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

3шт.

10

383121A2

VALVE, PRESSURE RELI

EF 3100 psi; Component Parts Not Serviced Separately

1шт.

409920A1

PLUG

Incl. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

13

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

14

G108725

BACK-UP RING

1шт.

15

86625138

PLUG,7/18" - 14

Includes Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

411366A1

CARTRIDGE

Counterbalance Valve; Incl. 396978A1; Used With 409057A1

1шт.

17

419368A1

CARTRIDGE

Counterbalance Valve; Incl. 396978A1; Used With 409057A2

1шт.

17

446619A1

VALVE

Counterbalance Valve; Incl. 396978A1; Used With 409057A3, 87431795, 451496A1, 87431789

1шт.

396978A1

SEAL KIT

Package

1шт.

18

397412A1

CARTRIDGE

Flow Control; Incl. 396977A1; Used With 409057A1, 409057A2

1шт.

18

397412A2

CARTRIDGE

Flow Control; Incl. 396977A1; Used With 409057A3, 87431795

1шт.

18

451493A1

CARTRIDGE

Flow Control; Incl. 396977A1; Used With 451496A1, 87431789

1шт.

396977A1

SEAL KIT

Package

1шт.

19

377573A1

CARTRIDGE

Counterbalance; Incl. 396978A1

1шт.

396978A1

SEAL KIT

Package

1шт.

20

377576A1

SOLENOID VALVE

Solenoid; Incl. 18 and 396976A1

1шт.

21

417292A2

VALVE

Solenoid; Incl. 22 and 396976A1 Seals, 377575A1 Coil, and 417293A2 Cartridge; Used With 409057A2, 409057A3, 87431795, 451496A1, 87431789

1шт.

417293A2

CARTRIDGE

1шт.

377575A1

COIL

1шт.

22

396975A1

NUT

1шт.

396976A1

SEAL KIT

Package

1шт.

23

440489A1

CARTRIDGE

Valve Check; Incl. 396974A1

1шт.

396974A1

SEAL KIT

1шт.

24

440490A1

PISTON

Incl. 440491A1

1шт.

440491A1

SEAL KIT

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
