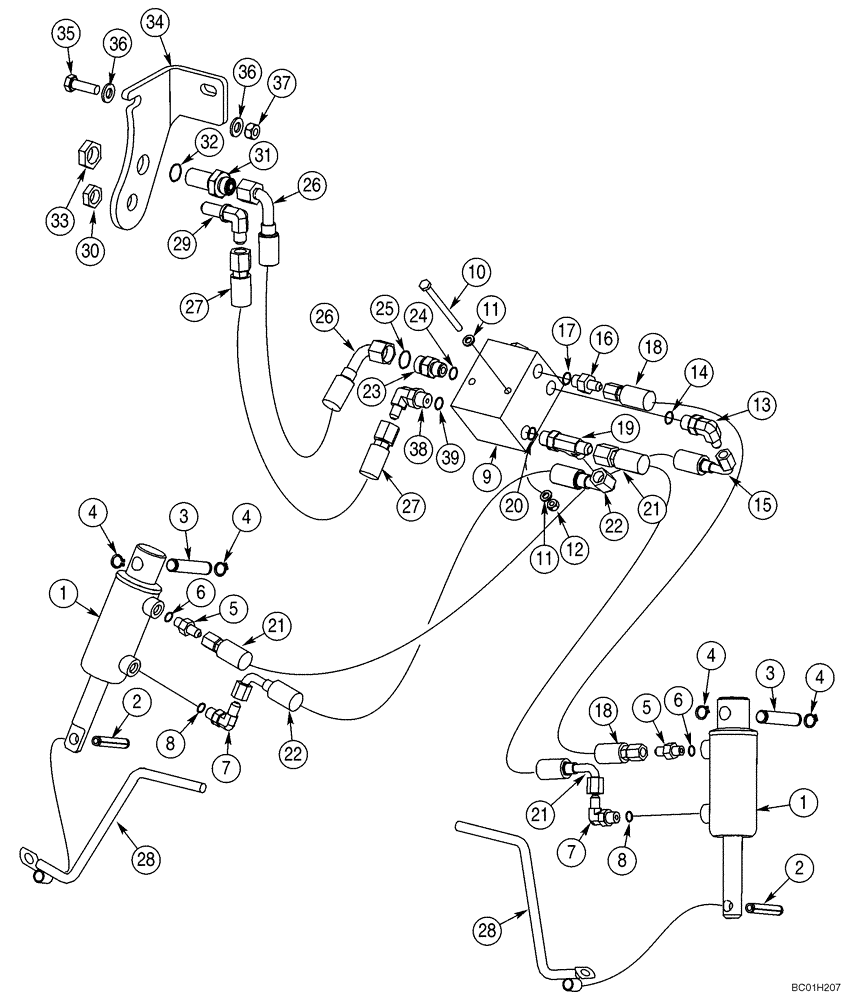

Запчасти Case 40XT (08-08) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

1

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Coupler; Component Parts Not Serviced Separately; Replaces 86614533, 86616996

2шт.

2

87610718

PIN,9.53mm OD x 57.15mm L

Replaces 38-32436

2шт.

3

87387540

PIN,12.7mm OD x 67.55mm L

Replaces 395968A1; Handle Pivot

2шт.

4

87612753

RETAINER,#50, 0.46", Ext

Retaining Ring Ext. #50; Replaces 100-1650

4шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj or, 90°; Incl. 8

2шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

294741A1

CHECK VALVE

1шт.

10

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

11

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

6шт.

12

832-41406

NUT,M6 x 1, Cl 8

3шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 or, 90°; Incl. 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

395527A3

HOSE ASSY.

365 mm (14-3/8 in.); Left Hand Base End

1шт.

15

395527A3

HOSE ASSY.

365 mm (14-3/8 in.); Left Hand Base End 395527A3

1шт.

16

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

395525A2

TUBE ASSY.

372 mm (14-5/8 in.); Right Hand Base End

1шт.

18

87440566

HOSE ASSY.

372 mm (14-5/8 in.); Right Hand Base End; Replaces 395525A2

1шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

395526A2

TUBE ASSY.

337 mm (13-1/4 in.); Right Hand Rod End

1шт.

21

87440568

HOSE ASSY.

337 mm (13-1/4); Right Hand Rod End; Replaces 395526A2

1шт.

22

395528A3

HOSE ASSY.

363 mm (14-5/16 in.); Left Hand Rod End

1шт.

22

87440570

HOSE ASSY.

363 mm (14-5/16 in.); Left Hand Rod End; Replaces 395528A3

1шт.

23

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 24, 25

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

26

406906A1

TUBE ASSY.

793 mm (31-1/4 in.); Step To Coupler

1шт.

27

406903A1

TUBE ASSY.

717 mm (28-1/4 in.); Step To Coupler

1шт.

28

396052A2

FLAG

For Decal 284152A1, See Figure 09-59

2шт.

29

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Attaches to 406899A1; See Figure 08-07, Ref 8

1шт.

30

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

31

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc; Attaches To 406899A1; See Figure 08-07, Ref 9

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

34

406969A2

BRACKET

Bulkhead

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

36

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

37

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

38

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, 90°; Incl. 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
