(08-06) - HYDRAULICS - COUPLER SYSTEM

Запчасти Case 40XT (08-06) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

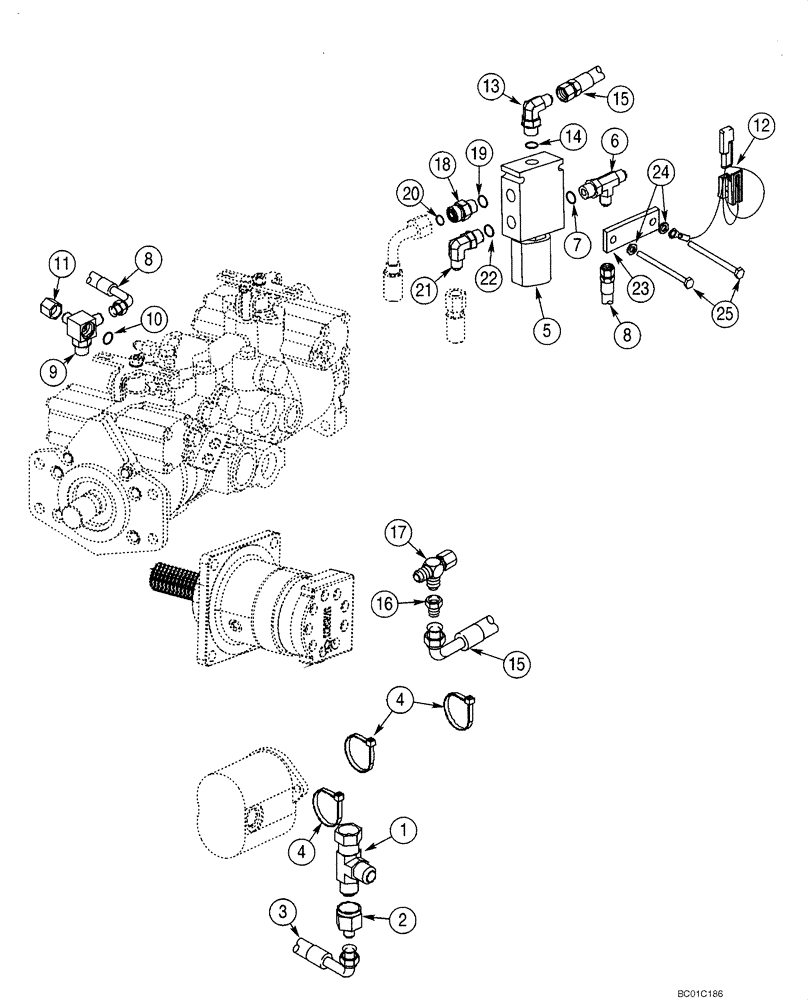

Схема запчастей Case 40XT - (08-06) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS
4
16
8
25
13
19
24
12
6
10
4
2
3
7
15
9
11
14
8
22
1
18
5
21
17
15
20
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Attaches To Gear Pump

1шт.

2

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

1шт.

3

395518A1

HOSE ASSY.

1960 mm, 77-1/8 in.; System Pressure; Pump To Valve

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.

5

187505C91

VALVE

Solenoid, See Figure 08-18

1шт.

6

376352A1

TEE

.952 mm, 3/8 in.; Incl. 7

1шт.

8

395519A1

HOSE ASSY.

809 mm, 31-7/8 in.; Charge Pressure; Pump To Valve

1шт.

9

409306A1

TEE

Attaches To Tandem Pump; Incl. 10

1шт.

11

218-754

CAP,37 Degree, 9/16"-18

1шт.

12

394910A1

HARNESS

Flyback Diode Jumper; For Attaching Parts, See Figure 04-09

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, 90°; Incl. Ref. 14

2шт.

15

395520A1

HOSE ASSY.

534 mm, 21 in.; To Tank

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches To Drive Motor

1шт.

18

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

For Attaching Parts, See Figure 08-07, Ref 18; Incl 19, 20

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, 90°; For Attaching Parts See Figure 08-07, Ref 17; Incl. 22

1шт.

23

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

24

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

25

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

450505A1

HITCH ASSY

Kit To Convert From Manual Coupler To Hydraulic Coupler; Incl. Figure 08-06, Ref 1 - 8, 12 - 25, Figure 08-07, Ref 1, 2, 8A, 9A, 10, 11A, 12A, 13 - 30, Figure 08-08, Ref 1- 19, Figure 09-04, Ref 2, 3, 14, Figure 09-41, Ref 4

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
