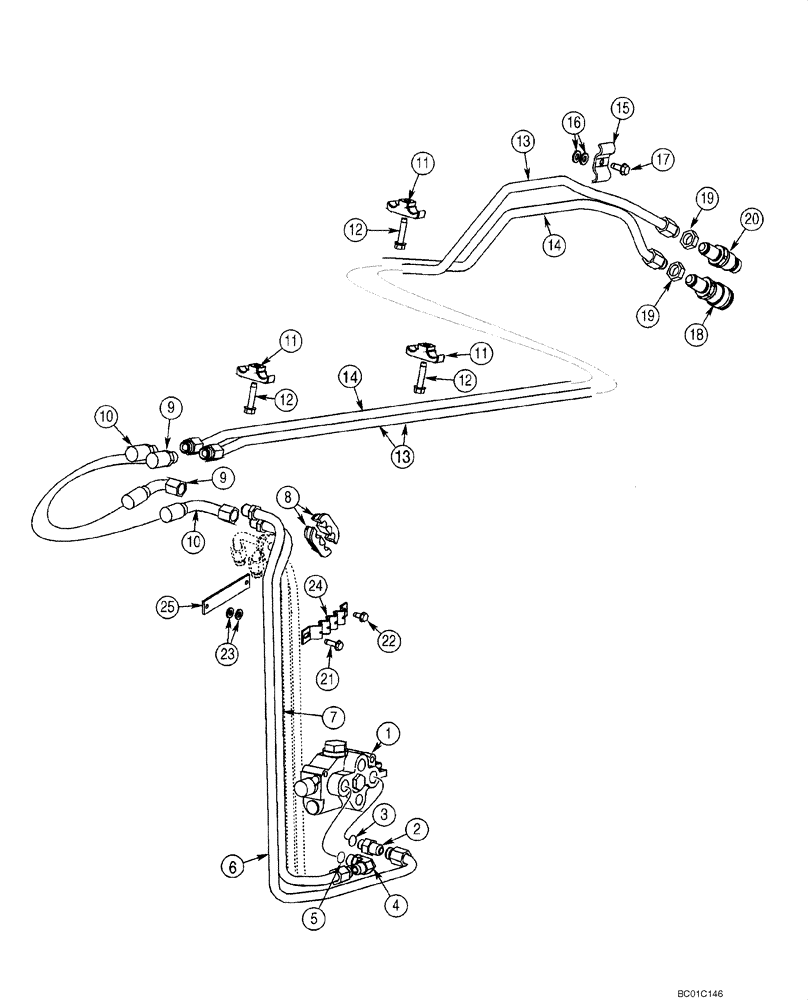

Запчасти Case 40XT (08-04) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

1

H674465

VALVE

Control, Auxiliary; See Figure 08-15

1шт.

1

87435245

VALVE

Control; See Figure 08-15A

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

7/8 fl x 3/4 adj or, 90°; Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

406074A1

TUBE

5/8 in. dia.

1шт.

7

406072A1

TUBE

5/8 in. dia.

1шт.

8

376524A2

SUPPORT,5/8"

5/8 in.

2шт.

9

406240A1

HOSE ASSY.

625 mm, 24-5/8 in.

1шт.

10

406087A1

HOSE ASSY.

650 mm, 25-5/8 in.

1шт.

11

D120613

CLAMP,20mm ID

3шт.

12

281-54928

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 1 3/4"

Screw; 3/8 x 1-3/4

3шт.

13

406070A1

TUBE

5/8 in. dia.

1шт.

14

406068A1

TUBE

5/8 in. dia.

1шт.

15

86501706

CLAMP

1шт.

17

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

3/8 x 7/8

1шт.

18

393394A1

COUPLING, BREAK AWAY

Hydraulic; Female Quick Disconnect; Component Parts Not Serviced Separately

1шт.

19

595460

BHD LOCK NUT,7/8" - 14

7/8

2шт.

20

87417308

COUPLING, BREAK AWAY

Male; Component Parts Not Serviced Separately; Replaces 393395A1; Incl. 20A

1шт.

20a

87426762

RING

Not Illustrated

1шт.

21

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1

1шт.

22

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

1шт.

23

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

3шт.

24

406941A1

BAR

Clamp Face

1шт.

25

406940A1

BAR

Clamp Back

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
