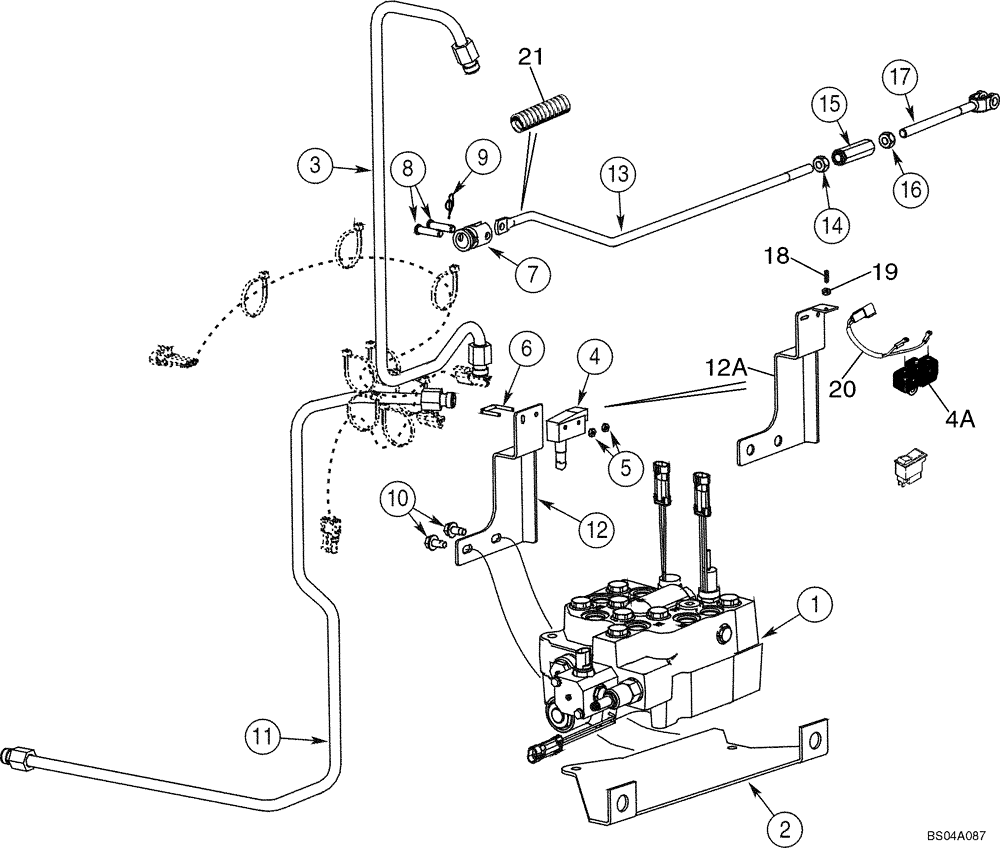

Запчасти Case 40XT (08-03) - HYDRAULICS - SELF-LEVELING, DUAL (08) - HYDRAULICS

1

REF

INSTRUCTION

Control; Dual Self Level; Two Spool; See Figure 08-13

1шт.

2

432469A2

PLATE

Valve Mounting; See Figure 08-10

1шт.

3

407994A1

TUBE

Right Hand; Lower; See Figure 08-01

1шт.

4

413225A1

SWITCH

Attaches To 400611A4; See Figure 04-09; No Longer Available, Order D137363

1шт.

4a

D137363

SWITCH

Attaches To 400611A4; See Figure 04-09; Replaces 413225A1

1шт.

400611A4

HARNESS

Dual Self Level; See Figure 04-18

1шт.

5

193-1003

NUT,Keps, w/LW,#6-32

2шт.

6

H435814

U-BOLT

1шт.

7

413224A2

COLLAR

1шт.

8

427-5125

CLEVIS PIN,5/16" x 1 1/4"

5/16 x 1-1/4; Clevis

2шт.

9

417860A1

COTTER PIN

Retainer

1шт.

10

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

2шт.

11

407996A1

TUBE

Left Hand; Lower; See Figure 08-01

1шт.

12

414128A2

BRACKET

Tip Spool Switch; No Longer Available, Order 444933A2

1шт.

12a

444933A2

BRACKET

Tip Spool Switch; Replaces 414128A2

1шт.

13

431452A1

ROD

Valve Dump Spool

1шт.

14

825-12412

NUT,M12 x 1.75, Cl 8, LH

M12

1шт.

15

431454A1

TURNBUCKLE

1шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

431451A1

ROD

Front Bucket Control; See Figure 09-15, Ref 15

1шт.

18

405103A1

SET SCREW,Hex Skt, M6 x 25mm, Oval Pt

M6 x 1 x 25 Oval

1шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

20

447951A1

HARNESS

Self Level Switch

1шт.

21

434521A1

SLEEVE,12.7mm ID x 57mm L

If Used

1шт.

411173A1

SWITCH

Rocker; See Figure 04-11

1шт.
