Запчасти Case 40XT (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

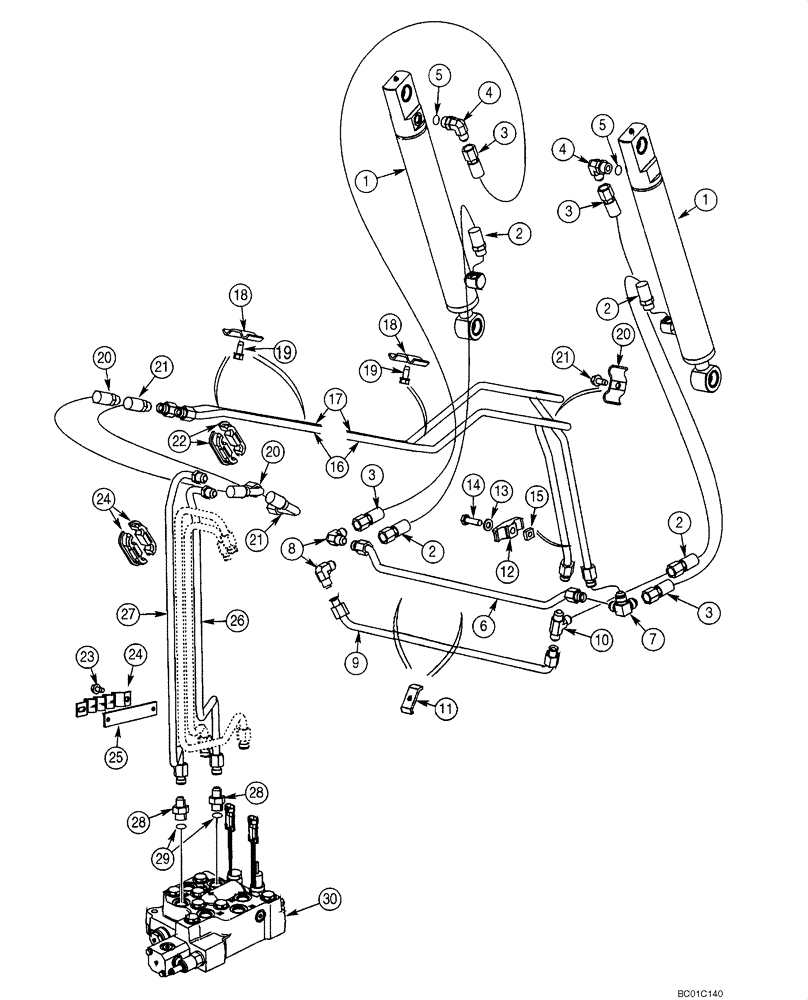

Схема запчастей Case 40XT - (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS
26
3
21
28
3
2
21
30
21
20
5
2
20
1
8
17
1
13
4
23
25
7
2
15
6
27
9
22
28
12
3
18
24
19
20
18
24
16
11
29
10
5
19
4
2
3
14

Артикул

Название

Примечание

Количество

1

86640307

CYLINDER ASSY.

2-1/2 x 14-1/2, 14.52 str; Tilt See Figure 08-17; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

87461812R

REMAN-HYD CYLINDER

40XT BEFORE S/N JAF0374550 Reman for new P/N 86640307

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

1

447169A1

CYLINDER ASSY.

2-1/2 x 14-1/2, 14.52 str; Tilt See Figure 08-17; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After; BSN JAF400555

2шт.

87461812R

REMAN-HYD CYLINDER

40XT S/N JAF0374550 & AFT. BSN JAF400555 Reman for new P/N 447169A1

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

1

87438183

CYLINDER ASSY.

2-1/2 x 14-1/2, 14.52 str; Tilt See Figure 08-17B; Replaces 447169A1; ASN JAF400555

2шт.

87461812R

REMAN-HYD CYLINDER

40XT ASN JAF400555 Reman for new P/N 87438183

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

2

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

460 mm, 18-1/8 in.; Curl, Rod End

2шт.

3

373240A5

HOSE ASSY.

355 mm, 14 in; Dump, Closed End; Replaces 373240A4 (340 mm, 13-3/8 in.)

2шт.

3

87387193

HOSE ASSY.,9.53mm ID x 355mm L

Hose Assy; 355 mm, 14 in; Dump; Replaces 373240A5

2шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

373223A3

TUBE,610, 31 mm Length

1шт.

7

D124661

ELBOW

Manifold

1шт.

8

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

9

373225A3

TUBE,584, 50 mm Length

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

1шт.

11

H434900

CLAMP

2шт.

12

D120679

CLAMP,Tube, 1/2"

1шт.

14

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

16

406082A1

TUBE

1шт.

17

406080A1

TUBE

1шт.

18

86501706

CLAMP

4шт.

19

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

3/8 x 7/8

4шт.

20

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm, 22-7/8 in.; Tip

1шт.

21

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm, 23-5/8 in.; Tip

1шт.

22

376523A2

SUPPORT,1/2"

1/2 in.

2шт.

23

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

2шт.

24

406941A1

BAR

Clamp Face

1шт.

25

406940A1

BAR

Clamp Back

1шт.

26

407992A1

TUBE

1шт.

27

407990A1

TUBE

1шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 31

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

Control Valve, Loader; See Figure 08-10, 08-11

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
