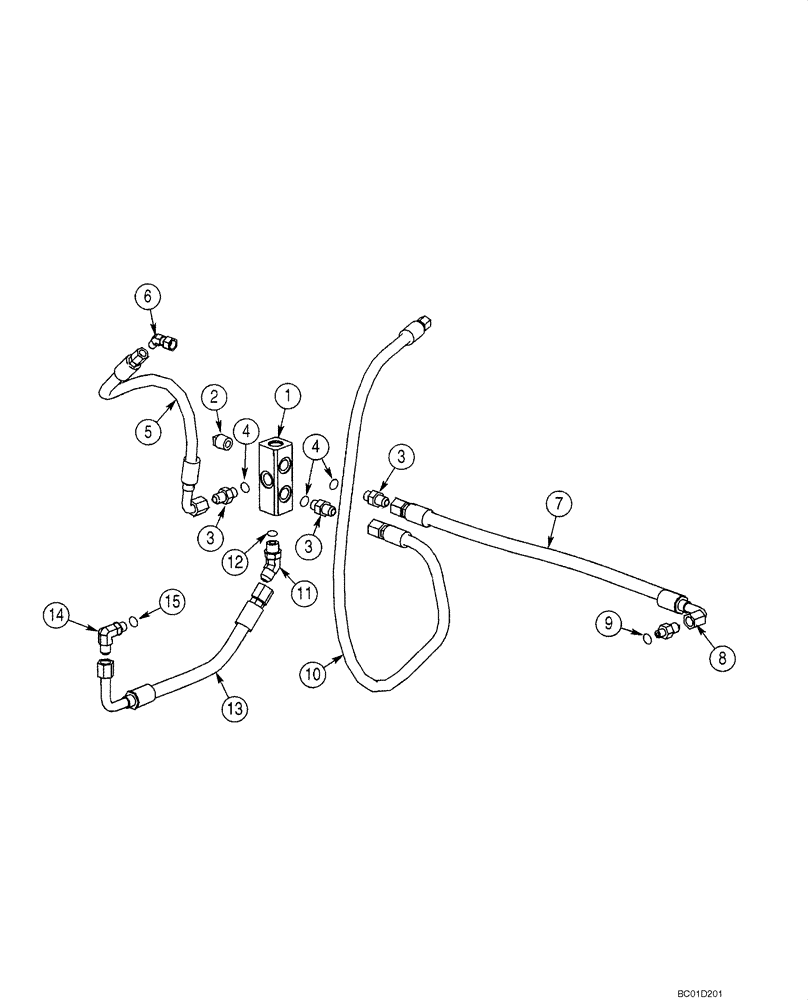

Запчасти Case 40XT (07-03) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

EUROPEAN MODELS, NORTH AMERICAN MODELS WITH HYDRAULIC BRAKES

1шт.

1

400615A2

JUNCTION BOX

Manifold; Brake Pressure

1шт.

2

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT; Replaces 217-407

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

3шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

395817A2

HOSE ASSY.

635 mm, 25 in.; Servo Supply

1шт.

6

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

1шт.

7

394535A2

HOSE ASSY.

495 mm, 19-1/2 in.; Brake Supply; See Figure 07-06, Ref 16; Models With Manual Release

1шт.

8

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

395819A2

HOSE ASSY.

1100 mm, 43-5/16 in.; Servo Supply

1шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

394534A2

HOSE ASSY.

360 mm, 14-3/16 in.; Brake Supply; See Figure 07-06, Ref. 15; Models With Manual Release

1шт.

14

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

LH Brake Release Port; Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
