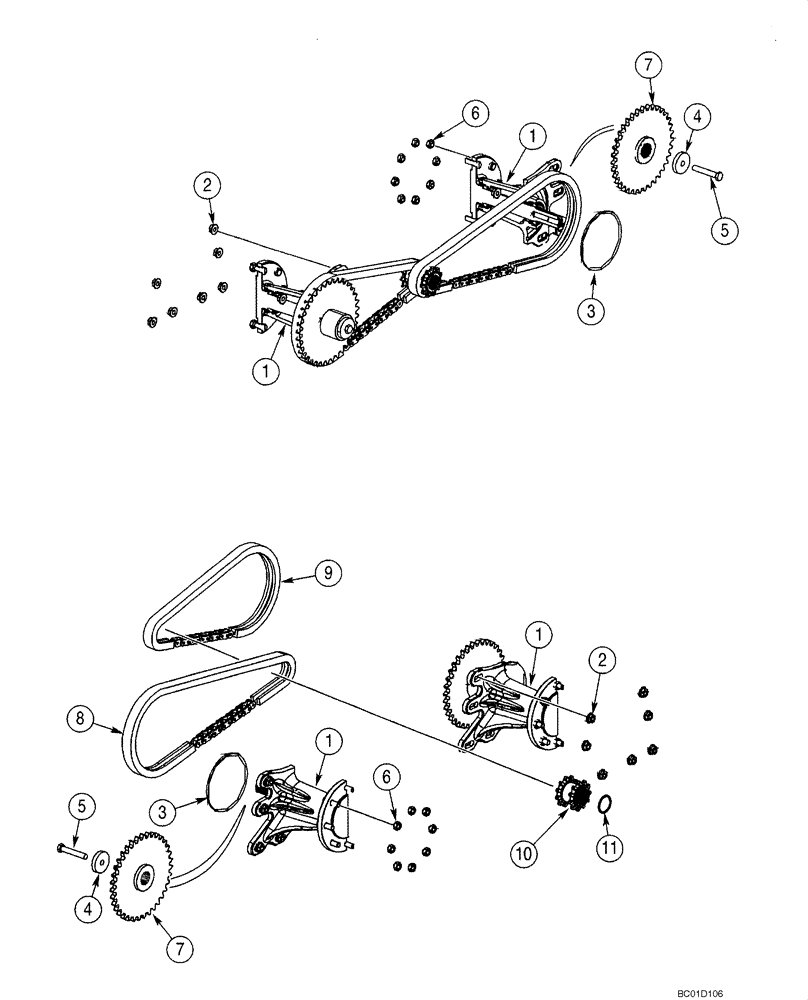

1
REF
INSTRUCTION
Axle Assy; See Figure 06-25
4шт.
2
86512498
FLANGE NUT,M16 x 2, Cl 10
32шт.
3
238-5443
O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro
4шт.
4
429233A1
WASHER,16.67mm ID x 70mm OD x 12.7mm Thk
4шт.
5
827-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 10.9
Replaces 827-16100
4шт.
6
408127A1
WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10
32шт.
7
367851A1
SPROCKET ASSY.
35 Teeth
4шт.
8
378381A1
CHAIN (CE)
80/72P
2шт.
9
378382A1
CHAIN (CE)
80/58P
2шт.
10
396622A1
SPROCKET ASSY.
Drive, 11 Teeth
2шт.
11
410963A1
RETAINER
Ring
2шт.
