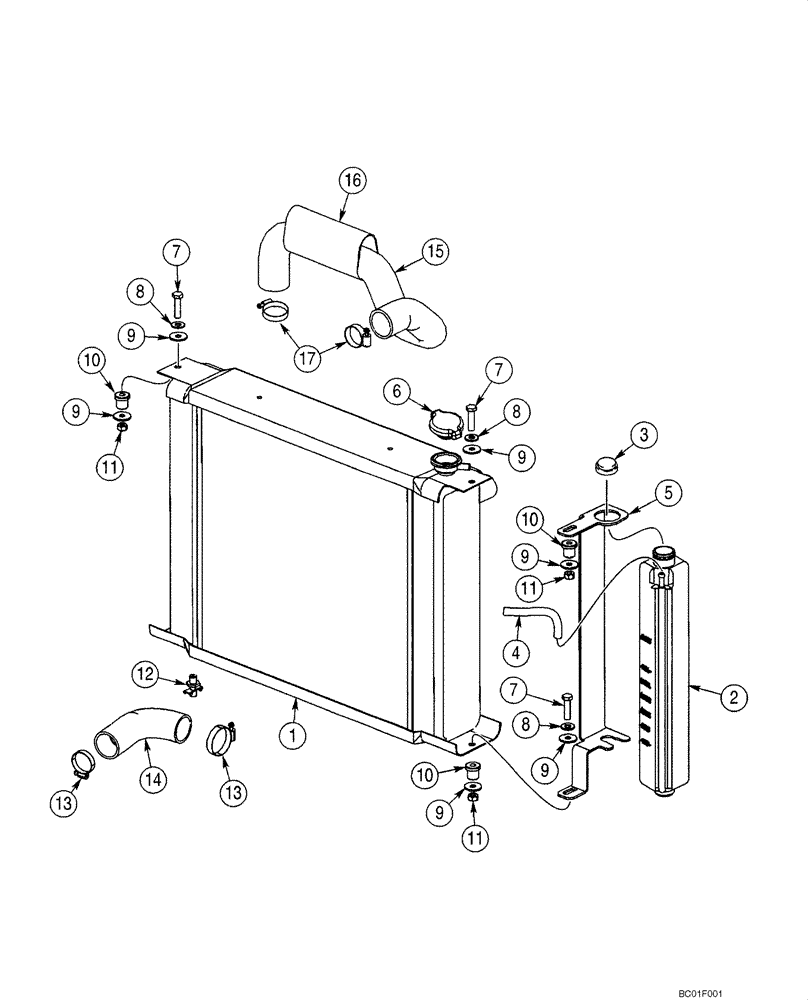

Запчасти Case 40XT (02-01) - RADIATOR - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

386919A2

RADIATOR

1шт.

2

227405A3

RESERVOIR

Coolant, Incl. 3

1шт.

3

257884A1

CAP

CAP

1шт.

4

394573A2

HOSE

Coolant Recovery

1шт.

5

394151A1

BRACKET

If Used

1шт.

6

A170241

RADIATOR CAP

15 psi

1шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

8шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Radiator

4шт.

11

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

12

H434809

COCK, DRAIN

1шт.

13

86625031

CLAMP,52.32mm ID

2-1/16 - 3

2шт.

14

395107A1

LARGE HOSE,57.00 mm ID x 205.00 mm, SAE J20 20R4 CLASS C

HOSE,LARGE Lower

1шт.

15

395106A1

HOSE, BULK,45.00 mm ID x 435.00 mm, SAE J20 20R4 CLASS C

HOSE, METERS Upper

1шт.

16

405228A1

TUBE

1шт.

17

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

18

A171099

HOSE CLAMP,13.2mm - 15.4mm

Not Illustrated

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
