Запчасти Case 1845S (130) - A137578 DISTRIBUTOR, (159) SPARK IGNITION ENGINE (10) - ENGINE

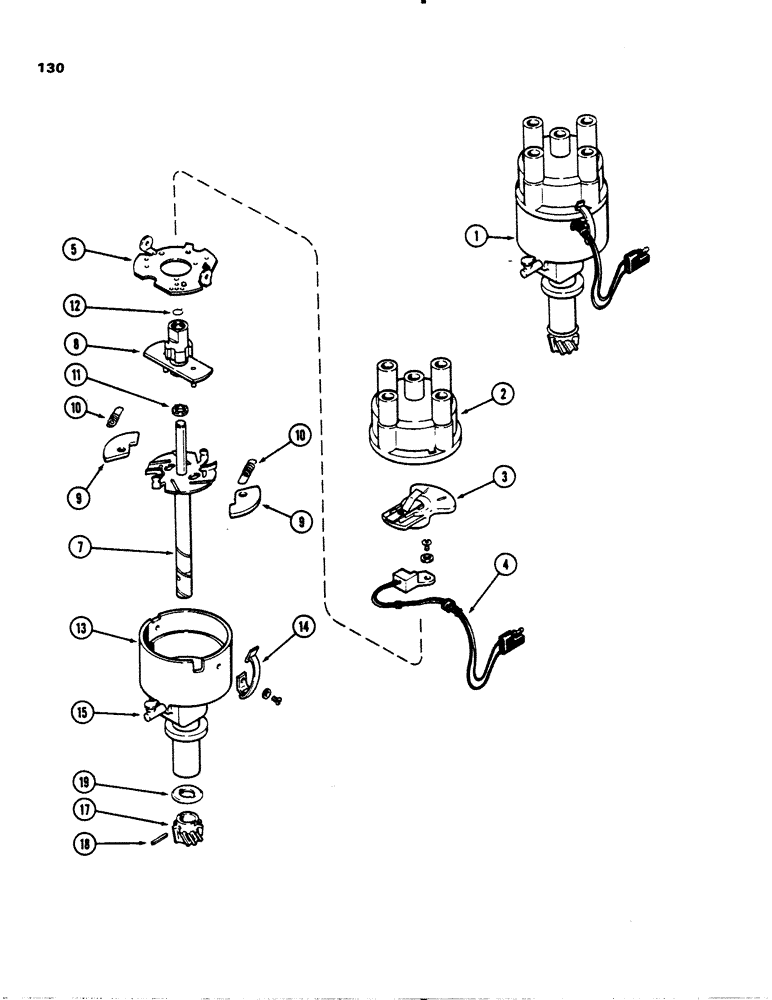

Схема запчастей Case 1845S - (130) - A137578 DISTRIBUTOR, (159) SPARK IGNITION ENGINE (10) - ENGINE
18
13
9
1
10
15
9
17
5
3
4
7
8
14
10
19
11
12
2

Артикул

Название

Примечание

Количество

1

A137578

DISTRIBUTOR

ASSEMBLY, Prestolite #IDJ-4007, Includes Ref. 2-15 and P/N A40323

1шт.

2

A44429

CAP

ASSEMBLY

1шт.

3

A44430

ROTOR

ASSEMBLY

1шт.

4

A45310

SENSOR

ASSEMBLY, with lead

1шт.

5

A45309

PLATE base

1шт.

A44365

SHAFT

ASSEMBL,Y distributor, Includes Ref. 7-12

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT distributor

1шт.

8

NSS

NOT SOLD SEPARAT

CAM distributor

1шт.

9

NSS

NOT SOLD SEPARAT

WEIGHT governor, Includes Ref. 10

1шт.

10

A45635

SPRING SET governor weight, set of 2

1шт.

11

NSS

NOT SOLD SEPARAT

WICK cam oiler

1шт.

12

NSS

NOT SOLD SEPARAT

RING snap, cam retaining

1шт.

13

NSS

NOT SOLD SEPARAT

BASE distributor

1шт.

14

A40329

SPRING

CLAMP ASSEMBLY, cap retaining

2шт.

15

A24887

OILER shaft

1шт.

A40323

GEAR

KIT distributor drive, Includes Ref. 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR drive

1шт.

18

NSS

NOT SOLD SEPARAT

PIN drive gear retaining

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER thrust, drive gear

1шт.

Выбрано товаров: 19
