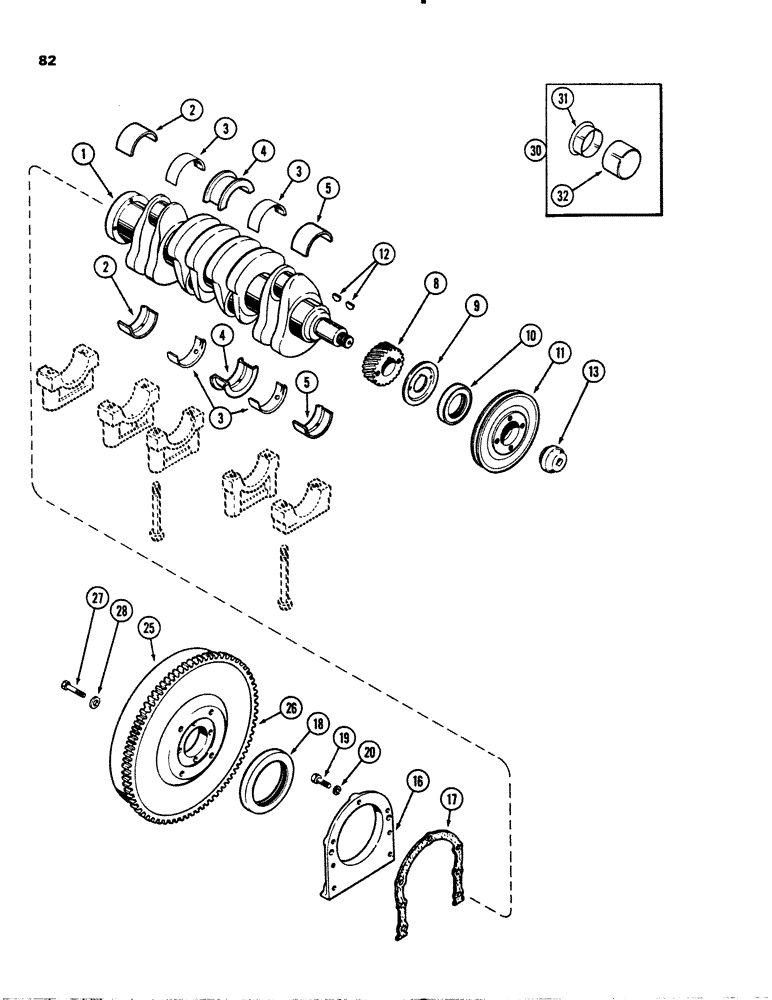

Запчасти Case 1845S (082) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (10) - ENGINE

1

A151015

CRANKSHAFT

Replaces: A39146

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSET main bearing, rear standard, set of 2

1шт.

2

A36496

LINING

INSET main bearing, rear, 0.002" undersize, 0.0508 mm, set of 2

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSET main bearing, rear, 0.010" undersize, O.254 mm, set of 2

1шт.

2

A36498

KIT

INSET main bearing, rear, 0.020" undersize, 0.508 mm, set of 2

1шт.

2

A36499

BEARING LINER

INSET main bearing, rear, 0.030" undersize, 0.762 mm, set of 2

1шт.

3

A36485

LINING

INSET main bearing, intermediate, standard, set of 2

2шт.

3

A36486

LINING

INSET main bearing, intermediate, 0.002" undersize, 0.0508 mm, set of 2

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSET main bearing, intermediate, 0.010" undersize, 0.254 mm, set of 2

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSET main bearing, intermediate, 0.020" undersize, 0.508 mm, set of 2

2шт.

3

A36489

LINING

INSET main bearing, intermediate, 0.030" undersize, 0.762 mm, set of 2

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSET main bearing, center, standard, set of 2

1шт.

4

A36491

LINING

INSET main bearing, center, 0.002" undersize, 0.0508 mm, set of 2

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSET main bearing, center, 0.010" undersize, 0.254 mm, set of 2

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSET main bearing, center, 0.020" undersize, 0.508 mm, set of 2

1шт.

4

A36494

LINING

INSET main bearing, center, 0.030" undersize, 0.762 mm, set of 2

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSET main bearing, front, standard, set of 2

1шт.

5

A36481

LINING

INSET main bearing, front, 0.002" undersize, 0.0508 mm, set of 2

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSET main bearing, front, 0.010" undersize, 0.254 mm, set of 2

1шт.

5

A36483

LINING

INSET main bearing, front, 0.020" undersize, 0.508 mm, set of 2

1шт.

5

A36484

LINING

INSET main bearing, front, 0.030" undersize, 0.762 mm, set of 2

1шт.

8

A39288

GEAR

crankshaft

1шт.

9

A29259

SLINGER

oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front, 2" x 3" x 1/2", 50.8 mm x 76.2 mm x 12.7 mm

1шт.

11

A155856

PULLEY

fan drive, Replaces: A39931

1шт.

12

A39132

KEY

pulley and gear

2шт.

13

A35673

NUT

pulley retaining

1шт.

16

A38390

RETAINER

rear oil seal

1шт.

17

A39188

GASKET

retainer

1шт.

18

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

oil, rear, 4" x 5" x 1/2", 101.6 mm x 127.0 mm x 12.7 mm

1шт.

19

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

retainer, 1/4" x 3/4" NC hex

4шт.

19

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

retainer, 1/4" x 1" NC hex

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

25

A135781

FLYWHEEL

ASSEMBLY, Includes Ref. 26

1шт.

26

G11710

GEAR

ring

1шт.

27

A37216

BOLT

flywheel, 7/16" x 2" NF hex

4шт.

28

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flywheel bolt, 7/16" x 3/4" x 1/16", 11.11 mm x 19.05 mm x 1.59 mm

4шт.

30

A155893

SLEEVE

KIT wear seal, front oil seal, Includes Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
