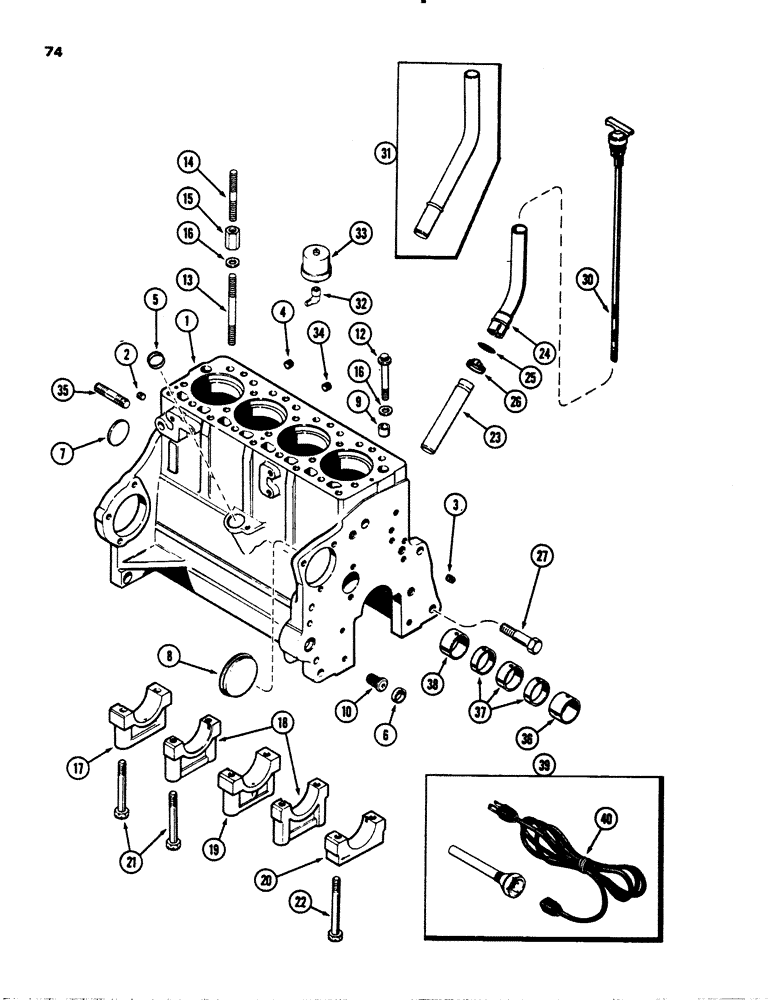

Запчасти Case 1845S (074) - CYLINDER BLOCK, (188) DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO. 2836084, BLOCK HEATER (10) - ENGINE

A46356

BLOCK

ASSEMBLY, cylinder, short, Includes: stripped block, crankshaft and bearings, connecting rods and bearings, piston assembly, camshaft, oil pump and timing gears, Includes Ref. 1

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY, stripped, casting No. A136813, Includes Ref. 2-27

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

oil gallery, drilled head, 1/4" PT

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG drilled head, 3/8" PT

1шт.

5

A38534

PLUG

tachometer drive hole,1-1/16" cup type, 26.99 mm

1шт.

6

41-1016

PLUG,Cup, 1"

adapter hole, 1" cup type, 25.4 mm

1шт.

7

A39241

PLUG,Exp, 2.12" dia

camshaft hole, 2-1/8" expansion, 53.97 mm

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

auxiliary pump hole, 3-1/4" cup type, 82.55 mm

1шт.

9

G49608

RING

dowel, head locating

2шт.

10

A153552

ADAPTER

oil filter

1шт.

12

A39047

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 3-1/2" NC

4шт.

12

A39048

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 5-1/8" NC

11шт.

12

A39049

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 5-5/8" NC

2шт.

13

A36902

STUD

cylinder head, lower, 1/2" NC x 5-5/8"

2шт.

14

A51271

STUD

cylinder head, cover, 3/8" NC x 3-3/4"

2шт.

15

A51114

NUT

head studs, 1/2" NC and 3/8" NC

1шт.

16

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

1/2" x 7/8" x 1/8", 12.7 mm x 22.22 mm x 3.17 mm

19шт.

17

A38385

CAP

main bearing, rear, Replaces: A51057

1шт.

18

G2128

CAP

main bearing, intermediate, Replaces: A51055

2шт.

19

G2127

CAP

main bearing, center, Replaces: A51056

1шт.

20

G2126

CAP

main bearing, front, Replaces: A51054

1шт.

21

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

bearing caps, 1/2" x 4-1/2" NC hex

8шт.

22

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

bearing caps, 1/2" x 5-1/8" NC hex

2шт.

23

A37149

TUBE

oil filler and dipstick, see Ref. 31, used in repair block only

1шт.

24

A37407

TUBE

EXTENSION oil filler tube, see Ref. 31, used with A37149 oil filler tube only

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

tube, 1-1/8" x 1-3/8" x 1/8", 28.57 mm x 34.92 mm x 3.17 mm

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube, 1-3/16" to 1-3/4", 30.16 mm to 44.45 mm

1шт.

27

A38303

BOLT

BOLT front support, 5/8" x 3-3/16" NC hex, not used this application

1шт.

30

A136379

DIPSTICK

ASSEMBLY, engine oil level

1шт.

31

A140185

COUPLING

oil filler and dipstick, order separately, used in JI Case Installed block only

1шт.

32

221-401

ELBOW,45 Degree, 1/8"-27, NPT

sending unit, 90 degree street

1шт.

33

A35031

SENDER UNIT

UNIT sending, engine oil pressure

1шт.

34

221-662

PLUG,Hex Hd, 1/4"-18

drain, cylinder block, hex head, 1/4" PT

1шт.

35

A51412

STUD

5/8" NF x 1-3/4"

1шт.

36

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

camshaft front, 1-1/4" wide, 31.75 mm

1шт.

37

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING camshaft intermediate, 1/2" wide, 12.7 mm

3шт.

38

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

camshaft rear, 31/32" wide, 24.61 mm

1шт.

39

A44815

HEATER

ASSEMBLY, cylinder block, Includes Ref. 40, block heater

1шт.

40

A44814

ELECTRIC CABLE

CORD ASSEMBLY, heater 12" long, 304.8 mm, block heater

1шт.
