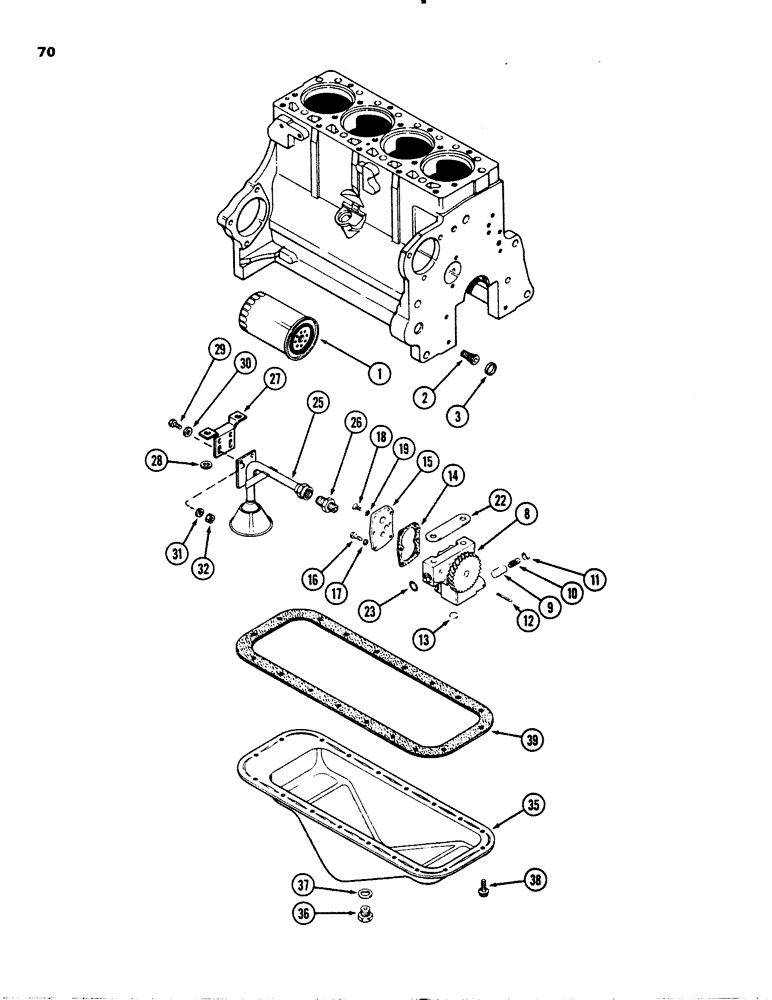

Запчасти Case 1845S (070) - OIL FILTER, (188) DIESEL ENGINE, ENGINE SERIAL NO. 4309700 AND AFTER, OIL PUMP, OIL PAN (10) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine oil

1шт.

2

A153552

ADAPTER

ADAPTER, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG cup type, 1" diameter, 25.4 mm

1шт.

8

A38372

PUMP

PUMP ASSEMBLY, oil, Includes Ref. 9-19, oil pump

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

A155144

VALVE, PRESSURE RELI

EF VALVE relief, Replaces: A29279, oil pump

1шт.

10

G48500

SPRING

SPRING relief valve, oil pump

1шт.

11

A29260

RETAINER

RETAINER spring, oil pump

1шт.

13

A39321

PLUG,Cup, 7/16"

PLUG cup type, 1/2", 12.7 mm diameter, oil pump

1шт.

14

G46852

GASKET

GASKET pump cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump body, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW flat head, 1/4" x 5/8" NC, oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

G11337

SHIM,.002" Thk

SHIM, , Pump mounting (0.0508 mm), Oil pump .002" Thk

1шт.

22

G11338

SHIM,.005" Thk

SHIM, , Pump mounting (0.127 mm), Oil pump .005" Thk

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING oil port, oil pump

1шт.

25

A156794

FILTER SCREEN

SCREEN ASSEMBLY, suction, oil pump

1шт.

26

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR 5/8" tube x 3/8" PT, oil pump

1шт.

27

A156845

BRACKET

BRACKET screen support, Replaces: A155169, oil pump

1шт.

28

G35009

WASHER

WASHER hardened, 17/32" x 1-1/16" x 7/64", 13.49 mm x 26.99 mm x 2.78 mm, Replaces: G49494, oil pump

2шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

30

95-4

WASHER,1/4"

WASHER 5/16" x 3/4" x 1/16", 7.94 mm x 19.05 mm x 1.59 mm, oil pump

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

2шт.

32

25-104

NUT,1/4"-20, G5

NUT, , Oil pump 1/4"-20, G5

2шт.

35

A36782

PAN

PAN ASSEMBLY, oil, Includes Ref. 36 and 37, oil pan

1шт.

36

A140222

PLUG

PLUG drain, oil pan

37шт.

37

A58608

GASKET

GASKET drain plug, oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT 5/16" x 3/4" NC hex, Sems, oil pan

18шт.

39

REF

INSTRUCTION

GASKET pan to block, order A44758 Figure 84, oil pan

1шт.

12

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Oil pump 1/8" x 2"

1шт.
