Запчасти Case 1845S (068) - OIL FILTER, (188) DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO. 4309700, OIL PUMP, OIL PAN (10) - ENGINE

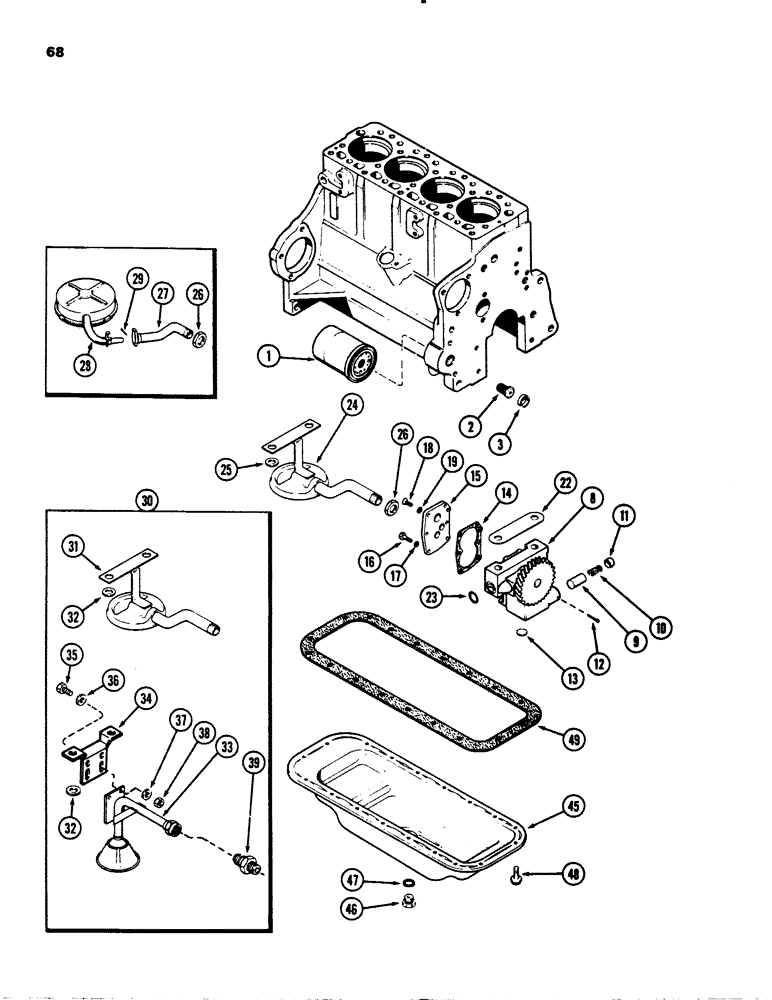

Схема запчастей Case 1845S - (068) - OIL FILTER, (188) DIESEL ENGINE, PRIOR TO ENGINE SERIAL NO. 4309700, OIL PUMP, OIL PAN (10) - ENGINE
36
9
46
48
29
19
27
30
3
32
39
12
34
25
45
24
49
11
16
26
1
13
18
26
35
17
14
22
47
37
33
32
2
15
8
23
38
29
31
18

Артикул

Название

Примечание

Количество

1

A146696

ENGINE OIL FILTER

FILTER engine oil, Replaces: A37189

1шт.

2

A153552

ADAPTER

ADAPTER, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG adapter cover, 1" cup type, 25.4 mm

1шт.

8

A38372

PUMP

PUMP ASSEMBLY, oil, Includes Ref. 9-19, oil pump

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

A155144

VALVE, PRESSURE RELI

EF VALVE relief, Replaces: A29279, oil pump

1шт.

10

G48500

SPRING

SPRING relief valve, oil pump

1шт.

11

A29260

RETAINER

RETAINER relief valve spring, oil pump

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

13

A39321

PLUG,Cup, 7/16"

PLUG pump body, 1/2" cup type, 12.7 mm, oil pump

1шт.

14

G46852

GASKET

GASKET pump cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump body, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Cover, oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Cover, oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW cover, flat head, 1/4" x 5/8" NC, oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap (0.0508 mm), Oil pump .002" Thk

1шт.

22

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap (0.1270 mm), Oil pump .005" Thk

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING oil port, 3/4" x 15/16" x 3/32", 19.05 mm x 23.81 mm x 2.38 mm, oil pump

1шт.

24

REF

INSTRUCTION

SCREEN oil pump, JI Case installed, order Ref. 30, oil pump

1шт.

25

G49404

WASHER

WASHER screen bracket to bearing cap, 1/2" x 7/8" x 1/16", 12.7 mm x 22.22 mm x 1.59 mm, oil pump

2шт.

26

223-207

LOCK NUT

NUT suction pipe to pump, oil pump

1шт.

27

A39035

TUBE

PIPE suction, float to pump, repairs only, order Ref. 30, oil pump

1шт.

28

REF

INSTRUCTION

FLOAT ASSEMBLY, oil suction, repairs only, order Ref. 30, oil pump

1шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

30

A155221

KIT

KIT oil pump screens, Replaces: A39035 and A39036, Includes Ref. 31-39, oil pump

1шт.

31

A39896

FILTER SCREEN

SCREEN oil pump, use with shallow oil pan, oil pump

1шт.

32

G35009

WASHER

WASHER screen bracket to bearing cap, hardened, 17/32" x 1-1/16" x 7/64", 13.49 mm x 26.99 mm x 2.78 mm, oil pump

2шт.

33

A156794

FILTER SCREEN

SCREEN oil pump, use with deep oil pan, oil pump

1шт.

34

A156845

BRACKET

BRACKET screen support, Replaces: A155169, oil pump

1шт.

35

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , Bracket to screen, Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

36

95-4

WASHER,1/4"

WASHER 5/16" x 3/4" x 1/16", 7.94 mm x 19.05 mm x 1.59 mm, oil pump

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

2шт.

38

25-104

NUT,1/4"-20, G5

NUT, , Oil pump 1/4"-20, G5

2шт.

Replaced by 425-104, 03/20/96

1шт.

39

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR straight, 37 degree flared, oil pump

1шт.

A36717

PAN

PAN ASSEMBLY, oil, Includes 45-47, oil pan

1шт.

45

NSS

NOT SOLD SEPARAT

PAN oil, oil pan

1шт.

46

A140222

PLUG

PLUG drain, Replaces: A14280, oil pan

1шт.

47

A58608

GASKET

GASKET drain plug, oil pan

1шт.

48

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT oil pan, 5/16" x 3/4" NC hex Sems, oil pan

18шт.

49

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A44758, Figure 84, oil pan

1шт.

Выбрано товаров: 44
