Запчасти Case 1845S (062) - EXHAUST MANIFOLD, 188 DIESEL ENGINE (10) - ENGINE

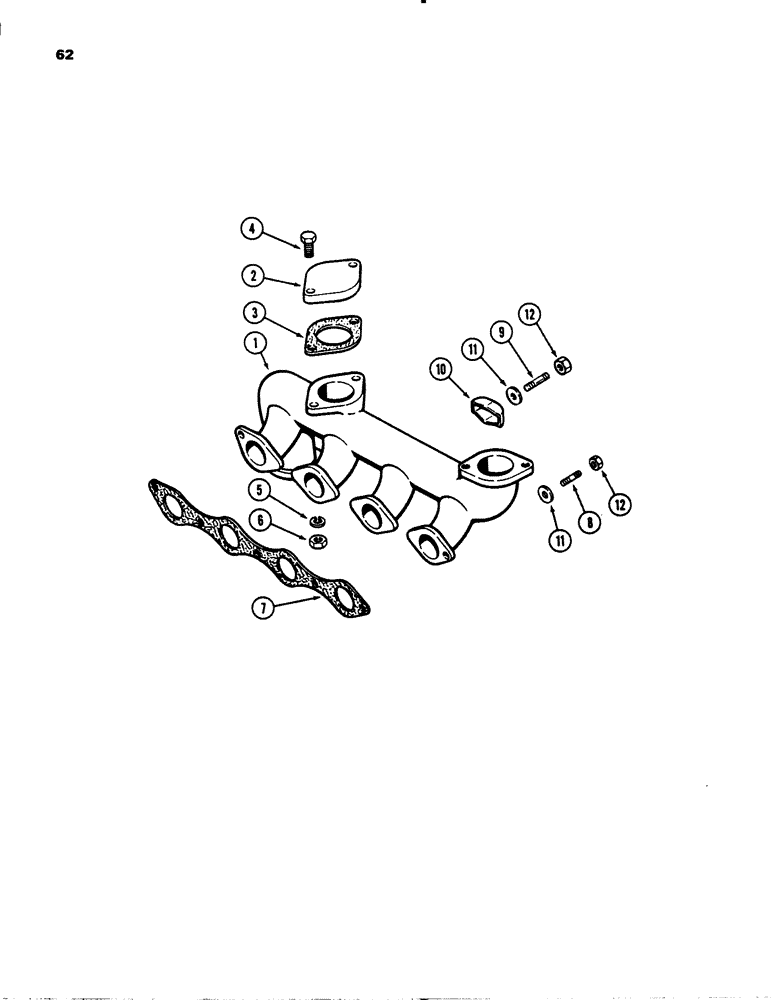

Схема запчастей Case 1845S - (062) - EXHAUST MANIFOLD, 188 DIESEL ENGINE (10) - ENGINE
5
4
10
7
6
8
12
1
11
9
3
2
11
12

Артикул

Название

Примечание

Количество

1

A39233

MANIFOLD

ASSEMBLY, exhaust, Includes Ref. 2-6

1шт.

2

A38188

PLATE

cover

2шт.

3

G46853

MANIFOLD GASKET

cover plate

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

5

195-25

WASHER,3/8"

lock 3/8"

4шт.

6

131-903

NUT,3/8"-16

NUT Seez-pruf, 3/8" NC

4шт.

7

G46872

MANIFOLD GASKET

exhaust manifold

1шт.

8

A29431

STUD

manifold ends, 3/8" NC x 1-3/4"

2шт.

9

A39129

STUD

manifold clamps, 3/8" NC x 2-1/16"

3шт.

10

A35028

CLAMP

manifold

3шт.

11

195-25

WASHER,3/8"

x 13/16" x 1/16", 9.52 mm x 20.64 mm x 1.59 mm 3/8"

5шт.

12

131-903

NUT,3/8"-16

NUT Seez-pruf, 3/8" NC

5шт.

Выбрано товаров: 12
