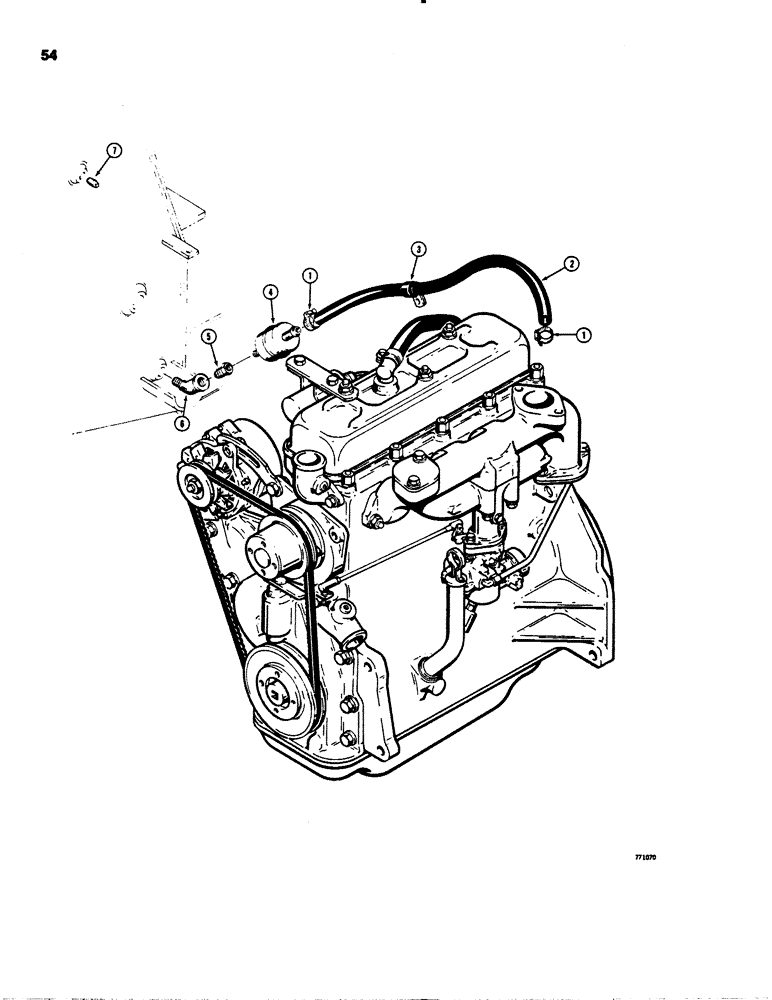

Запчасти Case 1845S (054) - FUEL LINES - GASOLINE MODELS (10) - ENGINE

Схема запчастей Case 1845S - (054) - FUEL LINES - GASOLINE MODELS (10) - ENGINE
5
4
1
7
3
1
2
6

Артикул

Название

Примечание

Количество

1

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose

2шт.

2

D71666

FUEL HOSE,0.31" ID x 20.00", SAE 30R1

1шт.

3

49771

CLAMP

hose, P-style

1шт.

4

D53499

FILTER

fuel

1шт.

5

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING reducer

1шт.

6

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

FITTING 45 degree, 1/4" NPT

1шт.

7

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG square head, 1/8"

1шт.

Выбрано товаров: 7
