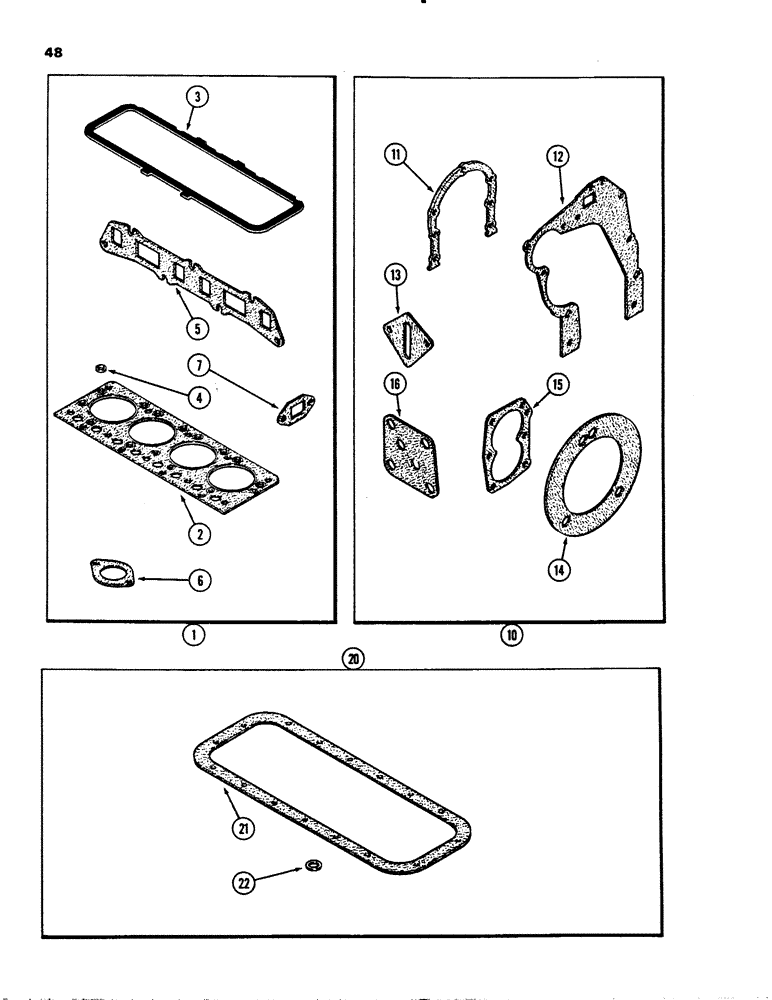

Запчасти Case 1845S (048) - ENGINE GASKET KITS, (159) SPARK IGNIITON ENGINE, VALVE GRIND KIT, CYLNDR BLOCK KIT, OIL PAN KIT (10) - ENGINE

1

G11963

GASKET

KIT valve grind, Includes Ref. 2-7

1шт.

For complete engine overhaul, order 1-G11963, 1-A41465, and 1-A40710

1шт.

2

G46870

CYLINDER HEAD GASKET

cylinder head

1шт.

3

A43021

GASKET

valve cover

1шт.

4

G46851

SEAL

valve stem

4шт.

5

A30030

GASKET

manifold

1шт.

6

G46826

GASKET

cauburetor

1шт.

Replaced by 1342824C1, 03/20/96

1шт.

7

A30003

GASKET

water outlet elbow

1шт.

10

A41465

GASKET

KIT cylinder block, Includes Ref. 11-16, cylinder block kit

1шт.

For complete engine overhaul, order 1-G11963, 1-A41465, and 1-A40710

1шт.

11

A39188

GASKET

rear oil seal retainer, cylinder block kit

1шт.

12

A38226

GASKET

timing gear cover, cylinder block kit

1шт.

13

A65561

GASKET

fuel pump opening, cylinder block kit

1шт.

14

A38083

GASKET

water pump, cylinder block kit

1шт.

15

G46852

GASKET

oil pump cover, cylinder block kit

1шт.

16

G46843

X

GASKET oil filter bracket, not used this application, cylinder block kit

1шт.

20

A40710

KIT

GASKET KIT oil pan, Includes Ref. 21-22, oil pan kit

1шт.

For complete engine overhaul, order 1-G11963, 1-A41465, and 1-A40710

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET oil pan kit

1шт.

22

A58608

GASKET

drain plug, nylon, 3/4" x 1" x 1/16", 19.05 mm x 25.4 mm x 1.59 mm, oil pan kit

1шт.

22

A34827

GASKET

drain plug, copper, 7/8" x 1-1/8" x 1/16", 22.22 mm x 28.57 mm x 1.59 mm, oil pan kit

1шт.
