Запчасти Case 1845S (044) - CRANKSHAFT AND FLYWHEEL, (159) SPARK IGNITION ENGINE (10) - ENGINE

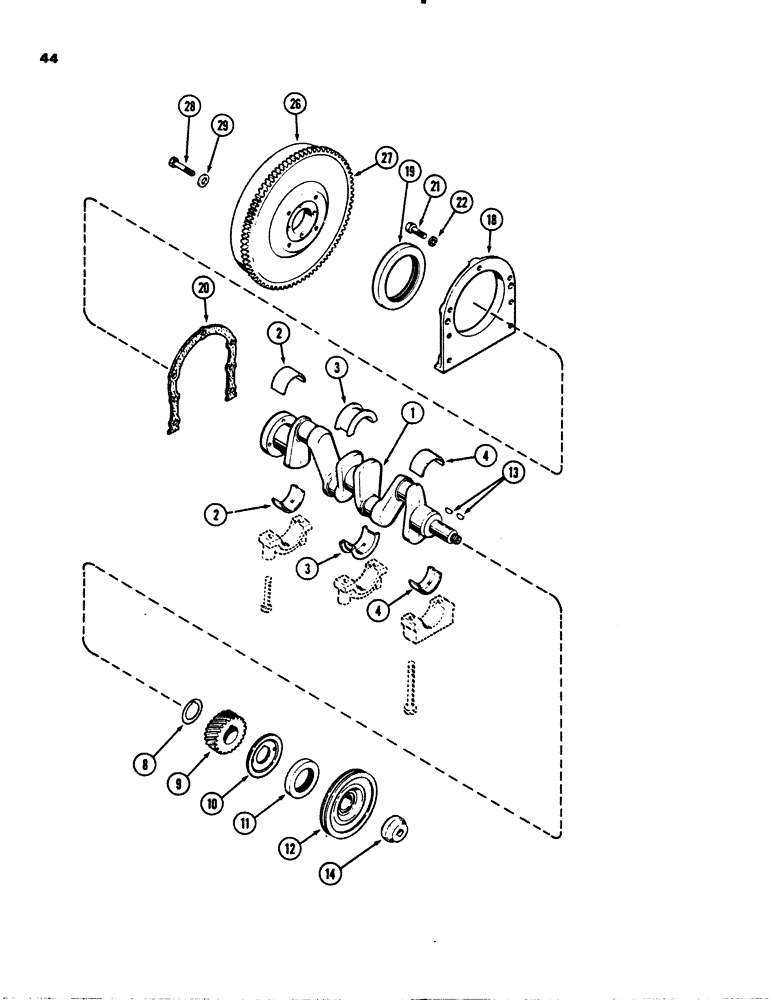

Схема запчастей Case 1845S - (044) - CRANKSHAFT AND FLYWHEEL, (159) SPARK IGNITION ENGINE (10) - ENGINE
8
4
11
26
3
28
27
14
20
19
10
21
9
22
2
18
2
29
3
1
4
13
12

Артикул

Название

Примечание

Количество

1

A37210

CRANKSHAFT

engine

1шт.

2

G37051

KIT

INSERT main bearing, rear, standard, set of 2

1шт.

2

G37052

KIT

INSERT main bearing, rear, set of 2, 0.002" undersize, 0.0508 mm

1шт.

2

A42322

FIP KIT

INSERT main bearing, rear, set of 2, 0.101" undersize, 0.254 mm

1шт.

2

G37053

KIT

INSERT main bearing, rear, set of 2, 0.202" undersize, 0.508 mm

1шт.

2

G37054

KIT

INSERT main bearing, rear, set of 2, 0.040" undersize, 1.016 mm

1шт.

3

G37047

KIT

INSERT main bearing, center, standard, set of 2

1шт.

3

G37048

KIT

INSERT main bearing, center, set of 2, 0.002" undersize, 0.0508 mm

1шт.

3

A42321

FIP KIT

INSERT main bearing, center, set of 2, 0.101" undersize, 0.254 mm

1шт.

3

G37049

KIT

INSERT main bearing, center, set of 2, 0.020" undersize, 0.508 mm

1шт.

3

G37050

KIT

INSERT main bearing, center, set of 2, 0.040" undersize, 1.016 mm

1шт.

4

G37043

KIT

INSERT main bearing, front, standard, set of 2

1шт.

4

G37044

KIT

INSERT main bearing, front, set of 2, 0.002" undersize, 0.0508 mm

1шт.

4

A42320

BEARING LINER

INSERT main bearing, front, set of 2, 0.010" undersize, 0.254 mm

1шт.

4

G37045

KIT

INSERT main bearing, front, set of 2, 0.020" undersize, 0.508 mm

1шт.

4

G37046

KIT

INSERT main bearing, front, set of 2, 0.040" undersize, 1.016 mm

1шт.

8

A29293

SHIM,.010" Thk

Thrust (0.254 mm) .010" Thk

1шт.

9

A39288

GEAR

crankshaft

1шт.

10

A29259

SLINGER

oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front, 2" x 3" x 1/2", 50.8 mm x 76.2 mm x 12.7 mm

1шт.

12

A50962

PULLEY

fan drive

1шт.

13

A39132

KEY

pulley and gear

2шт.

14

A35673

NUT

pulley retaining

1шт.

18

A38390

RETAINER

rear oil seal

1шт.

19

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

oil, rear, 4" x 5"x 1/2", 101.6 mm x 127.0 mm x 12.7 mm

1шт.

20

A39188

GASKET

rear seal retainer

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

retainer, 1/4" x 3/4" NC hex

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

retainer, 1/4" x 1" NC hex

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A135781

FLYWHEEL

ASSEMBLY, Includes Ref. 27

1шт.

27

G11710

GEAR

ring, starter

1шт.

28

A37216

BOLT

flywheel, 7/16" x 2" NF hex

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

7/16" x 3/4" x 1/16", 11.11 mm x 19.05 mm x 1.59 mm

4шт.

Выбрано товаров: 33
