Запчасти Case 1845S (040) - CAMSHAFT, (159) SPARK IGNITION ENGINE (10) - ENGINE

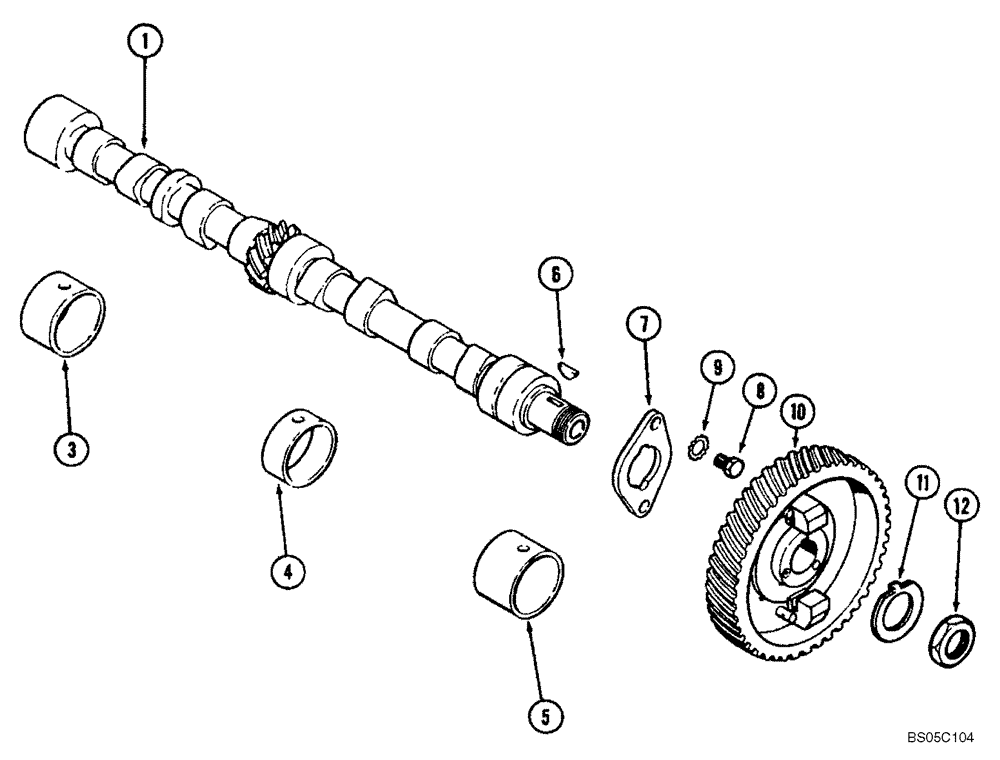

Схема запчастей Case 1845S - (040) - CAMSHAFT, (159) SPARK IGNITION ENGINE (10) - ENGINE
11
6
1
7
4
8
12
10
3
5
9

Артикул

Название

Примечание

Количество

1

G2049

CAMSHAFT

engine

1шт.

A41225

KIT

BUSHING SET camshaft, Includes Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING rear, 1-3/16" wide, 30.16 mm

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING center, 3/4" wide, 19.05 mm

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING front, 1-5/16" wide, 33.34 mm

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

7

A29290

PLATE

thrust

1шт.

8

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER external shakeproof, 3/8"

2шт.

10

G37066

GEAR

camshaft, with governor weights

1шт.

11

A29438

LOCK NUT

WASHER lock, camshaft nut, Tab

1шт.

12

A30063

NUT

camshaft gear retaining

1шт.

Выбрано товаров: 12
