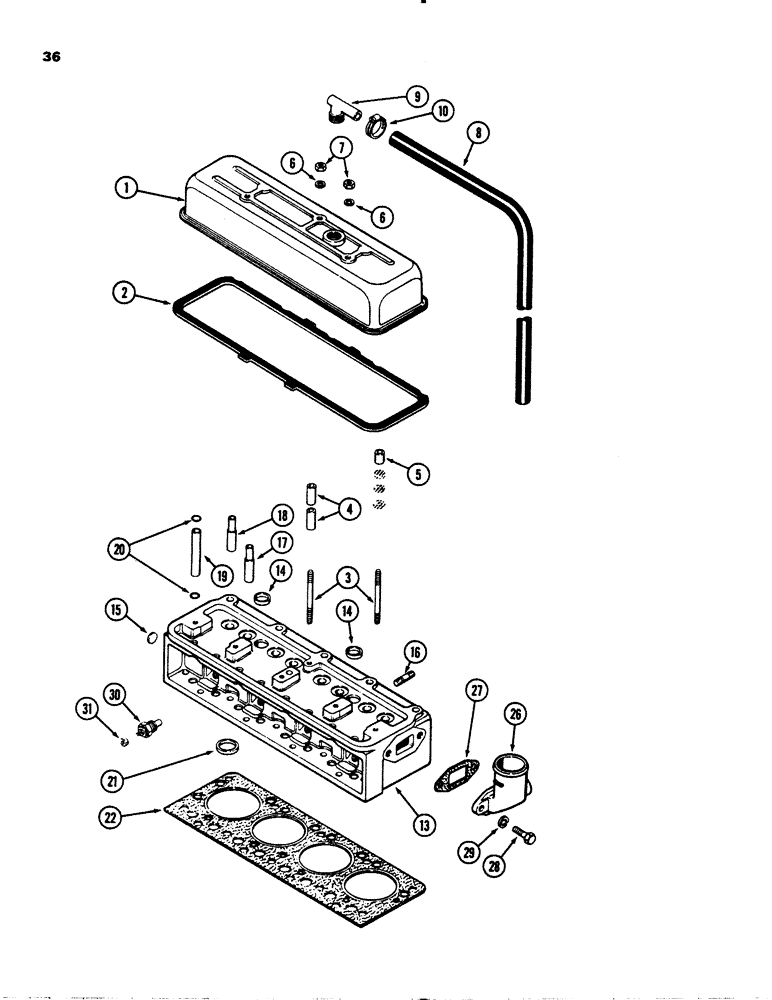

Запчасти Case 1845S (036) - CYLINDER HEAD AND COVER, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A37212

COVER

ASSEMBLY, cylinder head

1шт.

2

A43021

GASKET

, Serial Range: cover-head

1шт.

3

G49505

STUD

cylinder head cover, 3/8" NC x 4-5/8"

3шт.

4

A29999

SPACER

cover, center, 5/8" long, 15.87 mm

2шт.

5

A30065

SPACER

cover, ends, 1/2" long, 12.7 mm

2шт.

6

A29277

WASHER

cover, 3/8" x 1" x 1/8", 9.52 mm x 25.4 mm x 3.17 mm

3шт.

7

25-106

NUT,3/8"-16, G5

cover studs, 3/8" NC hex

3шт.

8

A39570

HOSE

breather

1шт.

9

A9155

90 ELBOW

breather, Serial Range: tube-cover

1шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP tube, 9/16" to 1-1/16"

1шт.

13

G11874

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, casting No. G2088, Includes Ref. 14-21

1шт.

14

41-1016

PLUG,Cup, 1"

1" cup type, 25.4 mm

2шт.

15

41-18

PLUG

1-1/8" expansion, 28.57 mm

1шт.

16

A29431

STUD

manifold, 3/8" NC x 1-3/4"

7шт.

17

A29955

GUIDE

intake valve, 2-7/16" long, 61.91 mm

4шт.

18

A29954

GUIDE

exhaust valve, 2-11/16" long, 68.26 mm

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

push rod

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

tube, 11/16" x 7/8" x 1/16", 17.46 mm x 22.22 mm x 1.59 mm

16шт.

21

G2106

INSERT

exhaust valve seat

4шт.

22

REF

INSTRUCTION

GASKET cylinder head to block, see Figure 48

1шт.

26

G11965

ELBOW

water outlet and thermostat body

1шт.

27

A30003

GASKET

elbow to cylinder head

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A21462

SENDER UNIT

SENDING UNIT temperature

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

#10 NF Keps

1шт.
