Запчасти Case 1845S (034) - OIL FILTER, (159) SPARK IGNITION ENGINE, ENGINE S/N 4309700 & AFTER, OIL PUMP, OIL PAN (10) - ENGINE

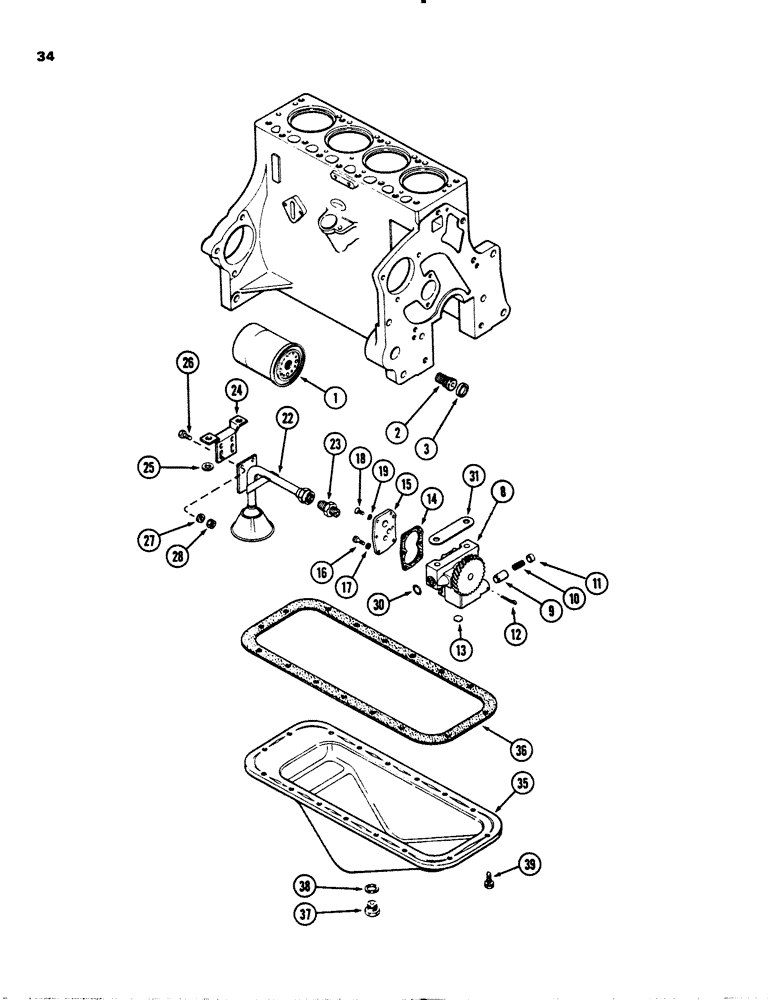

Схема запчастей Case 1845S - (034) - OIL FILTER, (159) SPARK IGNITION ENGINE, ENGINE S/N 4309700 & AFTER, OIL PUMP, OIL PAN (10) - ENGINE
27
2
31
37
26
15
24
3
18
16
25
8
10
12
17
38
11
13
28
30
35
9
23
19
39
22
1
14
36

Артикул

Название

Примечание

Количество

1

A146696

ENGINE OIL FILTER

FILTER engine oil

1шт.

2

A153552

ADAPTER

filter

1шт.

3

41-1016

PLUG,Cup, 1"

cup type, 1", 25.4 mm

1шт.

8

A38369

PUMP

ASSEMBLY, oil, Includes Ref. 9-19, oil pump

1шт.

9

A155144

VALVE, PRESSURE RELI

VALVE relief, oil pump

1шт.

10

G48513

VALVE SPRING

SPRING relief, oil pump

1шт.

11

A29260

RETAINER

spring, oil pump

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

13

A39321

PLUG,Cup, 7/16"

cup, 1/2", 12.7 mm diameter, oil pump

2шт.

14

G46852

GASKET

cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump, oil

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

flat head, 1/4 x 5/8" NC, oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

A156794

FILTER SCREEN

SCREEN ASSEMBLY, suction, oil pump

1шт.

23

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR 5/8" tube x 3/8" PT, oil pump

1шт.

24

A156845

BRACKET

screen support, Replaces: A155169, oil pump

1шт.

25

G35009

WASHER

hardened, 17/32" x 1-1/16" x 7/64", 13.49 mm x 26.99 mm x 2.78 mm, Replaces: G49404, oil pump

2шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

Oil pump 1/4"-20, G5

2шт.

30

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

pump body, oil pump

1шт.

31

G11337

SHIM,.002" Thk

Pump to bearing cap (0.0508 mm), Oil pump .002" Thk

1шт.

31

G11338

SHIM,.005" Thk

Pump to bearing cap (0.1270 mm), Oil pump .005" Thk

1шт.

35

A36785

ENGINE OIL PAN

PAN oil, oil pan

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET pan to block, order A40710 from Figure 48, oil pan

1шт.

37

A140222

PLUG

drain, oil pan

1шт.

38

A58608

GASKET

drain plug, oil pan

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT Sems, 5/16" x 3/4" NC hex, oil pan

16шт.

Выбрано товаров: 31
