Запчасти Case 1845S (030) - TIMING GEAR COVER, (159) SPARK IGNITION ENGINE, WATER PUMP (10) - ENGINE

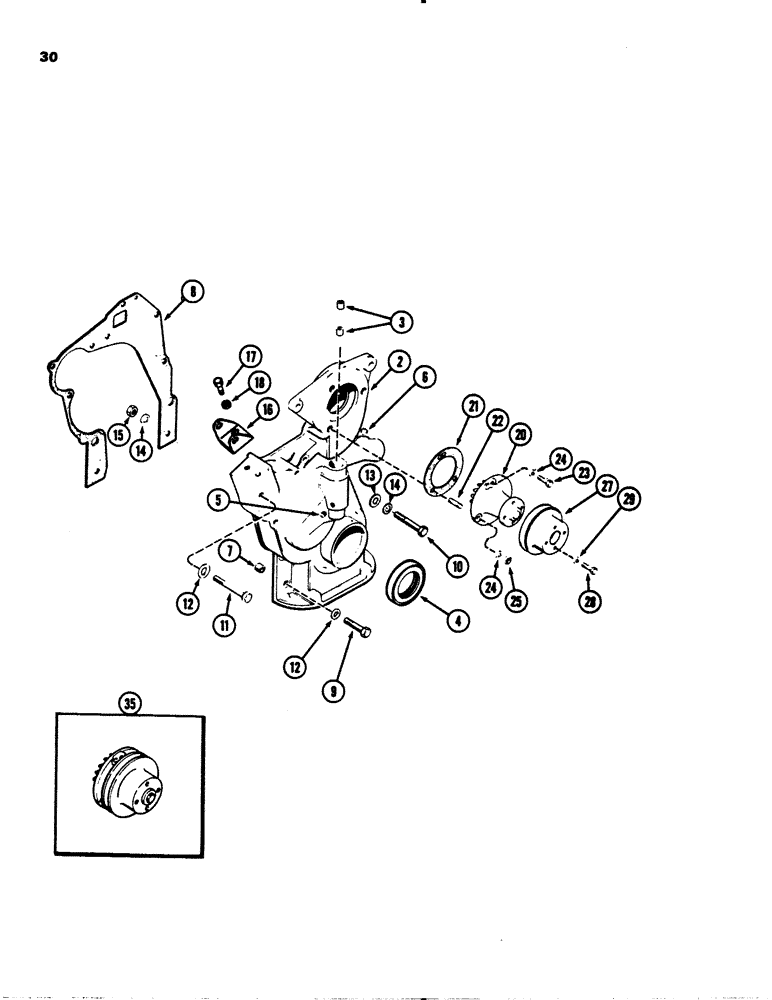

Схема запчастей Case 1845S - (030) - TIMING GEAR COVER, (159) SPARK IGNITION ENGINE, WATER PUMP (10) - ENGINE
17
7
22
27
16
2
5
35
9
4
18
15
21
14
11
12
10
3
6
8
28
29
23
20
24
14
12
25
24
13

Артикул

Название

Примечание

Количество

A39102

COVER

COVER ASSEMBLY, timing gear, Includes Ref. 2-6

1шт.

2

NSS

NOT SOLD SEPARAT

COVER timing gear

1шт.

3

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, governor shaft

2шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL oil, crankshaft, front, 2" x 3" x 1/2", 50.8 mm x 76.2 mm x 12.7 mm

1шт.

5

A30016

FITTING

PLUG slotted head, 1/8" PT

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

PLUG hex socket head, 1/8" PT

1шт.

7

A29442

RING

RING dowel, cover locating

2шт.

8

A38226

GASKET

GASKET, Serial Range: cover-block

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT cover, 3/8" x 1-1/2" NC hex

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Cover Hex, 3/8"-16 x 2", G5

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Cover Hex, 3/8"-16 x 2 1/4", G5

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT cover, 3/8" x 3-1/4" NC hex

3шт.

12

195-25

WASHER,3/8"

WASHER x 13-16" x 1/16", 9.52 mm x 20.64 mm x 1.59 mm 3/8"

5шт.

13

G49400

WASHER

WASHER 3/8" x 1-1/8" x 3/64", 9.52 mm x 28.57 mm x 1.19 mm

1шт.

14

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

10шт.

15

25-106

NUT,3/8"-16, G5

NUT 3/8" NC hex

3шт.

16

A160391

BRACKET

BRACKETalternator mounting

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY, water, Replaces: A39074, see Ref. 35, Includes Ref. 21, water pump

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET pump to timing gear cover, water pump

1шт.

22

A29433

STUD

STUD 3/8" NC x 1", water pump

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT 3/8" x 2-3/4" NC hex, water pump

1шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

NUT 3/8" NC hex, water pump

1шт.

27

G11339

PULLEY

PULLEY fan, water pump

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Pulley, Water pump Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

29

92-5

LOCK WASHER,5/16"

LOCK WASHER, , water pump 5/16"

4шт.

35

A51767

PUMP

PUMP ASSEMBLY, water, Includes fan pulley, for optional noise control package, water pump

1шт.

Выбрано товаров: 36
