Запчасти Case 1845S (024) - PRE-CLEANERS AND AIR CLEANER (10) - ENGINE

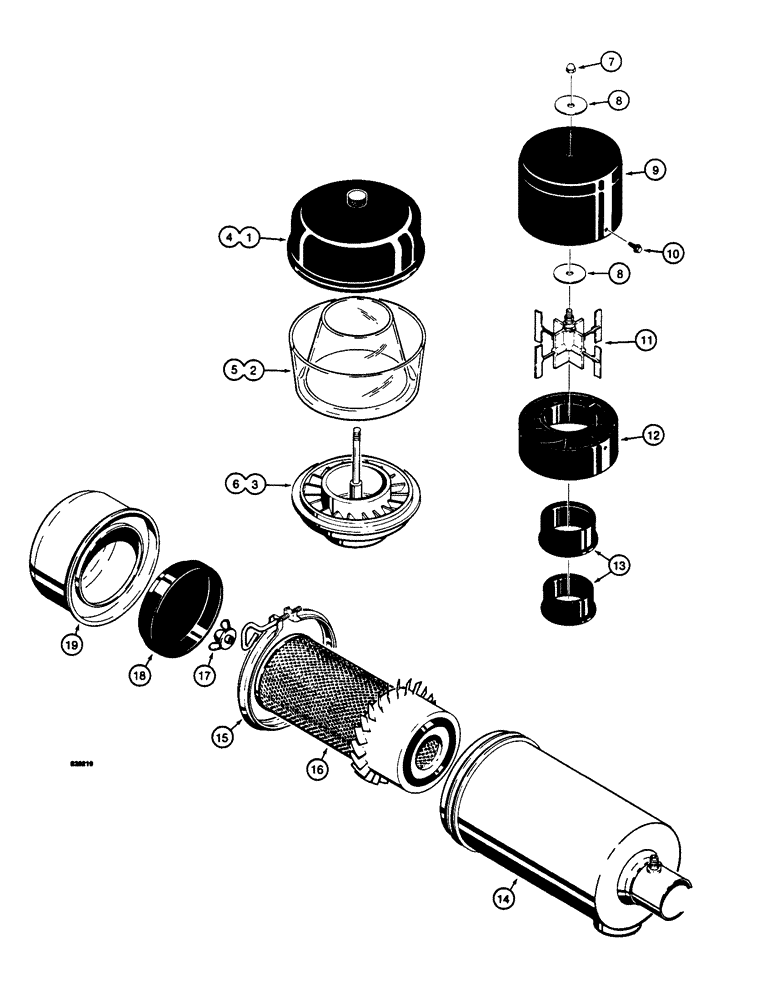

Схема запчастей Case 1845S - (024) - PRE-CLEANERS AND AIR CLEANER (10) - ENGINE
13
11
12
10
9
8
18
4
2
14
16
5
17
15
3
19
8
1
6
7

Артикул

Название

Примечание

Количество

A64589

PRECLEANER

PRE CLEANER Donaldson, use on 1845 diesel only, Includes Ref. 1-3

1шт.

1

73187

COVER

CAP pre cleaner

1шт.

2

365413R1

BOWL

pre cleaner

1шт.

3

NSS

NOT SOLD SEPARAT

BASE pre cleaner

1шт.

D20604

PRECLEANER

PRE CLEANER Donaldson, use on 1845S gas models only, Includes Ref. 4-13

1шт.

4

D30676

COVER

CAP pre cleaner

1шт.

5

D30675

BODY

BOWL pre cleaner

1шт.

6

D30677

SLEEVE

BASE pre cleaner, Includes precleaner D82128

1шт.

D82128

PRECLEANER

PRE CLEANER Medalic manufactured, use on 1845 gas or diesel

1шт.

7

129-888

CROWN NUT,Crown, 1/4"-28

acorn, 1/4" - 28 NF

1шт.

8

195-2016

WASHER

flat, 1/4"

2шт.

9

NSS

NOT SOLD SEPARAT

COVER pre cleaner

1шт.

10

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW self- apping, No. 8 x 1/2"

3шт.

11

N6640

ROTOR

pre cleaner

1шт.

12

NSS

NOT SOLD SEPARAT

BODY pre cleaner

1шт.

13

N6641

ADAPTER

pre cleaner to air cleaner

1шт.

D64003

CLEANER

AIR CLEANER ASSEMBLY, dry type, use on 1845 gas or diesel, Includes Ref. 14-19

1шт.

14

NSS

NOT SOLD SEPARAT

BODY

1шт.

15

F84999

CLAMP,168.28mm

ASSEMBLY, cup retaining

1шт.

Hardware referred to is l303388 screw & 25-225 nut, 03/20/96

1шт.

16

A42274

AIR FILTER

ELEMENT filter

1шт.

17

D78354

WING NUT

NUT AND WASHER wing

1шт.

D37976 is washer for Ref. 17, 03/20/96

1шт.

18

F22312

BAFFLE

air cleaner

1шт.

19

F91760

CUP

cleaner

1шт.

Выбрано товаров: 25
