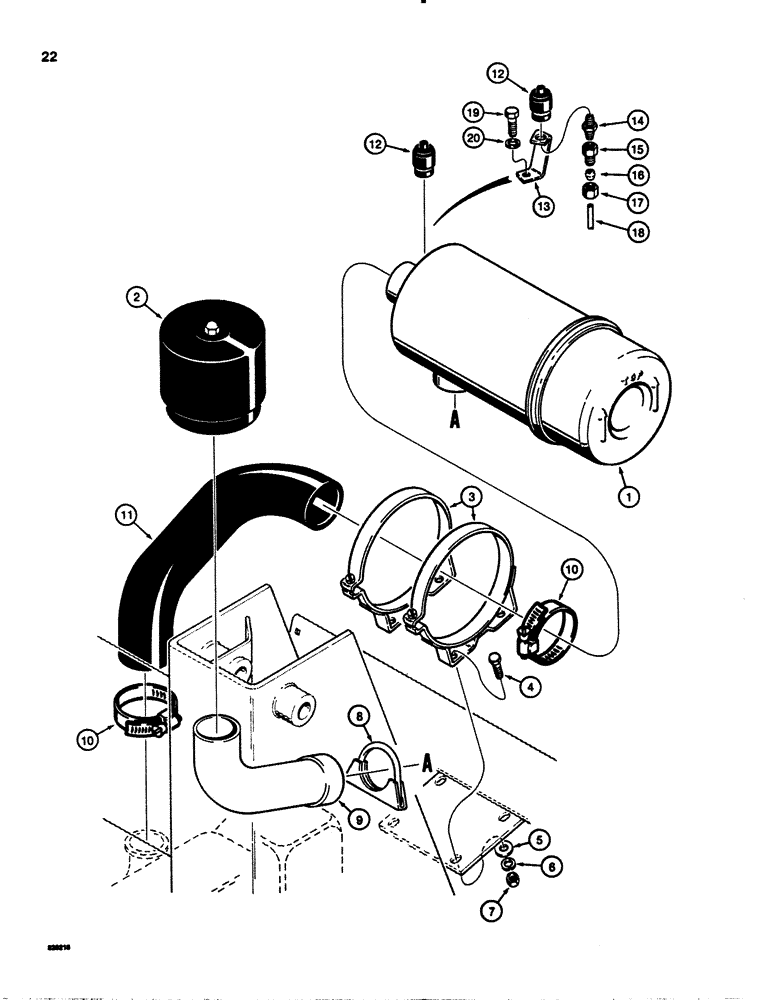

Запчасти Case 1845S (022) - AIR CLEANER AND PRE-CLEANER MOUNTING PARTS, MACHINE WITH DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY, dry type, parts list Figure 24

1шт.

2

REF

INSTRUCTION

PRE-CLEANER ASSEMBLY, includes mounting clamp, pre cleaner parts list Figure 24

1шт.

3

L11247

BAND

ASSEMBLY, air cleaner, Includes hardware

2шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

195-25

WASHER,3/8"

flat, 3/8"

4шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

8

A62875

CLAMP

tube

1шт.

9

D83888

AIR INTAKE TUBE,2.5" OD x 4.22, 7.6" L

TUBE pre cleaner

1шт.

10

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP worm screw type

2шт.

11

D64640

INTAKE AIR HOSE,57.20 mm ID x 294.60 mm, SAE 20R4 CLASS R

Air Cleaner 57.20 mm ID x 294.60 mm, SAE 20R4 CLASS R

1шт.

12

A59569

INDICATOR

air restriction

1шт.

13

D76787

BRACKET indicator mounting, used with noise reduction package only

1шт.

14

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

ADAPTER male, straight, 1/8" NPT

1шт.

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

male, straight, 1/8" NPT, Includes Ref. 15-17

2шт.

15

NSS

NOT SOLD SEPARAT

BODY fitting

1шт.

16

222-5185

SLEEVE,1/4" Tube

- , fitting 1/4" Tube

1шт.

17

222-5180

TUBE NUT,7/16"-24

fitting 7/16"-24

1шт.

18

D53924

TUBE nylon, 1/4", 6.3 mm OD x 34", 864 mm long, if used

1шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.
