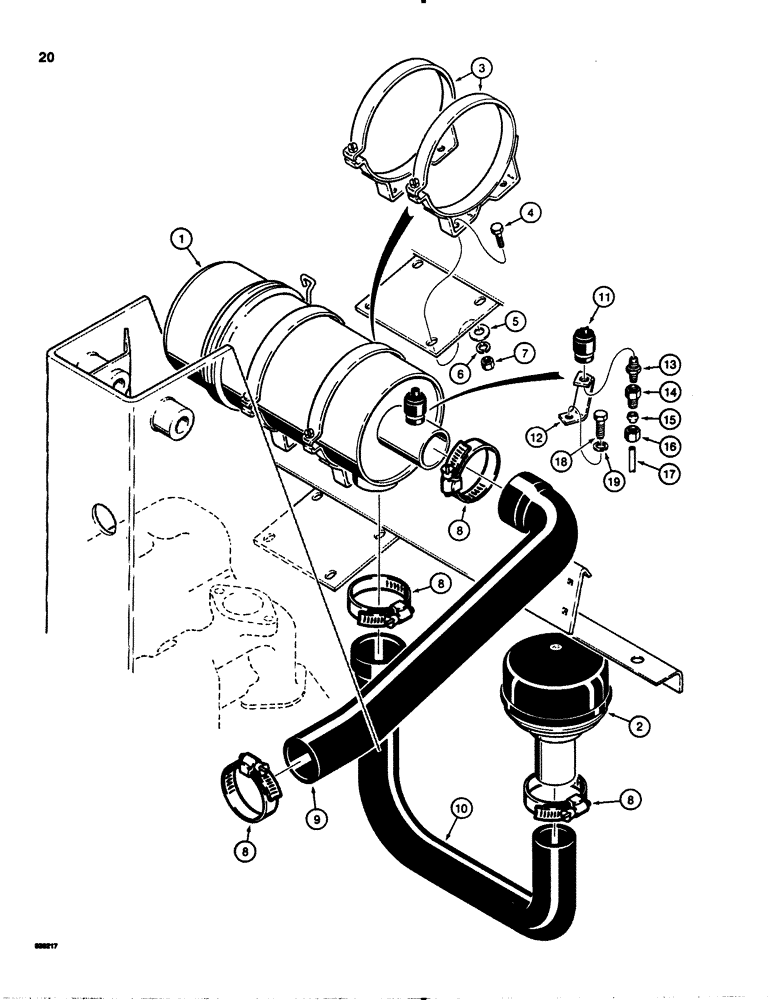

Запчасти Case 1845S (020) - AIR CLEANER AND PRE-CLEANER MOUNTING PARTS, MACHINES WITH GASOLINE ENGINE (10) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY, dry type, parts list Figure 24

1шт.

2

REF

INSTRUCTION

PRE-CLEANER ASSEMBLY, includes mounting clamp, pre cleaner parts list Figure 24

1шт.

3

L11247

BAND

ASSEMBLY, air cleaner, Includes hardware

2шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

195-25

WASHER,3/8"

flat, 3/8"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

8

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP worm screw type

4шт.

9

D64641

INTAKE AIR HOSE,57.20 mm ID x 330.20 mm, SAE 20R4 CLASS R

Air Cleaner, Dry Type 57.20 mm ID x 330.20 mm, SAE 20R4 CLASS R

1шт.

10

D71013

INTAKE AIR HOSE,2.00" ID, 2.50" ID x 13.20", SAE 20R4 CLASS R GRADE 1A

Precleaner, Used on 1845 gasoline only 2.00" ID, 2.50" ID x 13.20", SAE 20R4 CLASS R GRADE 1A

1шт.

11

A59569

INDICATOR

air restriction

1шт.

12

D76787

BRACKET indicator mounting, used with noise reduction package only

1шт.

13

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

ADAPTER male, straight, 1/8" NPT

1шт.

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

straight, for both ends at tube, Includes Ref. 14-16

2шт.

14

NSS

NOT SOLD SEPARAT

BODY fitting

1шт.

15

222-5185

SLEEVE,1/4" Tube

- , fitting 1/4" Tube

1шт.

16

222-5180

TUBE NUT,7/16"-24

fitting 7/16"-24

1шт.

17

D53924

TUBE nylon, 1/4", 6.3 mm OD x 34", 864 mm long, if used

1шт.

18

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.
