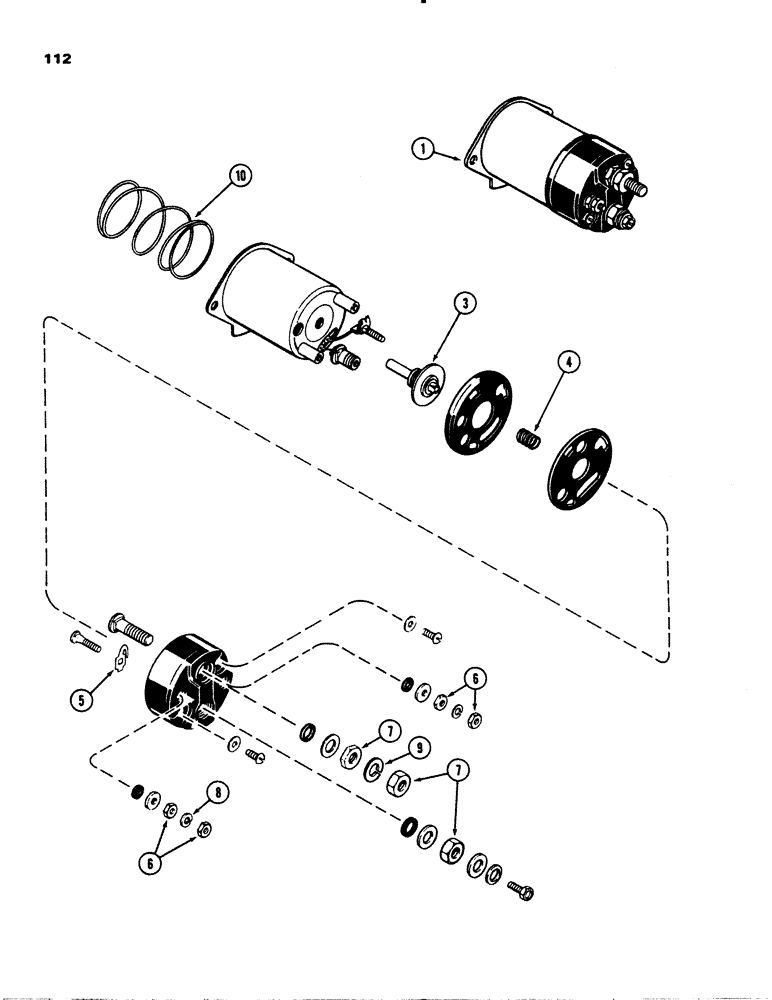

Запчасти Case 1845S (112) - G44891 SOLENOID, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A47539

SOLENOID SWITCH

SOLENOID ASSEMBLY, starter, stamped 1114458 or G44891, serviced as complete assembly only

1шт.

G44891

SOLENOID

ASSEMBLY, Delco-Remy #1114356, Includes Ref. 3-10

1шт.

See local Delco-Remy Dealer for all parts illustrated but not listed.

1шт.

3

A42061

SWITCH

CONTACT ASSEMBLY

1шт.

4

A42059

SPRING

contact return

1шт.

5

A42060

HALF BLADE

BLADE contact

1шт.

6

129-16

NUT,#8-32

4шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

A40221

SPRING

plunger return

1шт.
