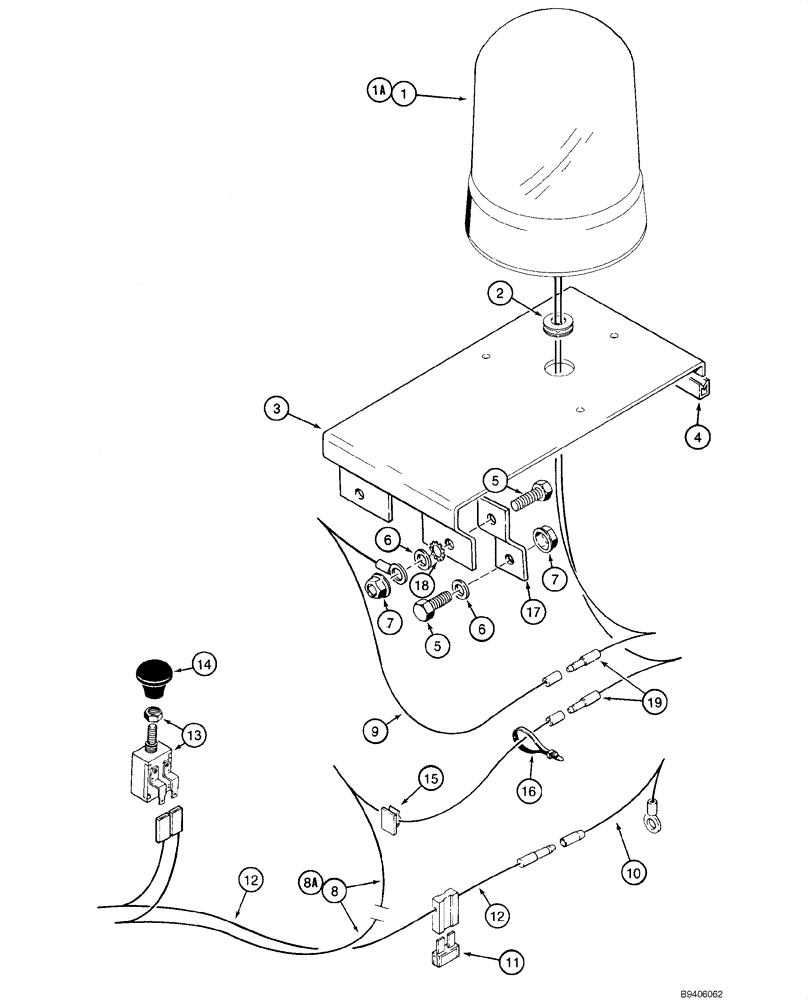

Запчасти Case 1845C (04-11) - BEACON, ROTATING (04) - ELECTRICAL SYSTEMS

1

E99128

BEACON ROTATING

BEACON Beacon, Rotating; Component Parts Not Serviced Separately

1шт.

1a

E134495

LIGHT, WARNING

Beacon, Rotating; Component Parts Not Serviced Separately; Italian D.G.M. Models

1шт.

2

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

3

109264A1

SUPPORT

1шт.

4

D60179

RUBBER STRIP

165 mm (6-1/2 in); Cut from F42827

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

8

142210A1

ELECTRICAL WIRE

WIRE Wire, Beacon to Switch; Replaces 102332A1

1шт.

8a

124881A1

ELECTRICAL WIRE

WIRE Beacon to Switch; Italian D.G.M. Models

1шт.

9

142209A1

ELECTRICAL WIRE

WIRE Beacon to Ground; Replaces 102333A1

1шт.

10

102330A1

ELECTRICAL WIRE

WIRE, Serial Range: Starter-Fuse

1шт.

11

A149800

FUSE,10 Amp

10 amp

1шт.

12

102331A1

ELECTRICAL WIRE

WIRE

1шт.

13

D74330

SWITCH

Rotating Beacon

1шт.

14

D92573

BUTTON

1шт.

15

H439303

CLIP

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

17

109265A1

BRACKET

1шт.

18

493-21033

LOCK WASHER,Int Tooth, 5/16"

1шт.

19

E20680

TERMINAL CONNECTOR,Male

2шт.

20

142212A1

SOCKET

Not Illustrated

1шт.

21

142211A1

SOCKET

Not Illustrated

1шт.
