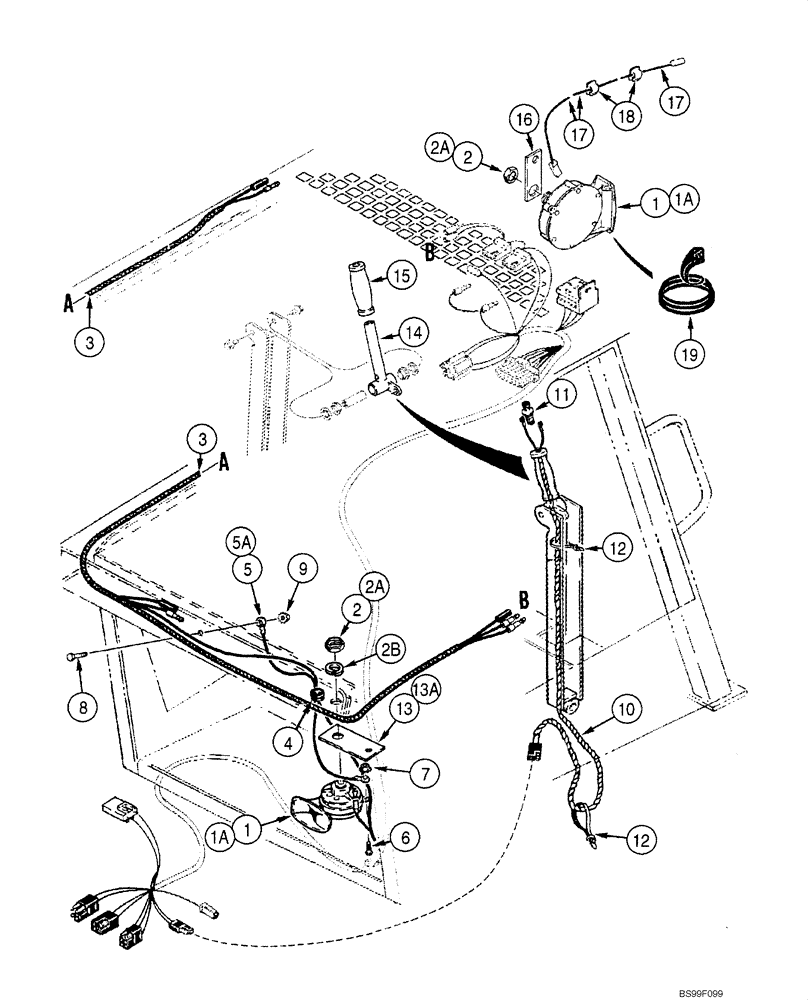

Запчасти Case 1845C (04-09A) - HORN, JAF0040228 - JAF0277352 (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12V; Rear; No Longer Available, For Service Order Ref 1A, Ref 13A, Ref 2B, Ref 2A; Also See Fig 04-09B

1шт.

1a

254130A1

HORN

12V

1шт.

2

L30866

LOCK NUT

7/8; Used with D123205

1шт.

2a

825-1406

NUT,M6, Cl 8

Used with 254130A1

1шт.

2b

493-41026

LOCK WASHER,Ext Tooth, 1/4"

Used with 254130A1

1шт.

3

D139709

HARNESS

Horn

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

Replaces 49566

1шт.

5

D134077

ELECTRICAL WIRE

WIRE Ground; Used with D123205

1шт.

5a

254251A1

ELECTRICAL WIRE

WIRE Ground; Used with 254130A1

1шт.

6

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

Used with D123205

1шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

Used with D123205

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

193-1009

NUT,Keps, w/LW, 5/16"-18

1шт.

10

D134076

HARNESS

Horn Switch

1шт.

11

D141486

SWITCH

Horn

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

13

D122734

SUPPORT

Used with D123205

1шт.

13a

253607A1

SUPPORT

Used with 254130A1

1шт.

14

D133283

LEVER

Control; Loader; Models with Horn; RH Side

1шт.

15

D133282

HANDLE

1шт.

16

113590A1

BRACKET

Front

1шт.

17

111161A1

ELECTRICAL WIRE

WIRE Ground

1шт.

18

H439303

CLIP

2шт.

19

D55218

SEAL, GLASS,76mm L

76 mm (3 in); Cut from F42827

1шт.
