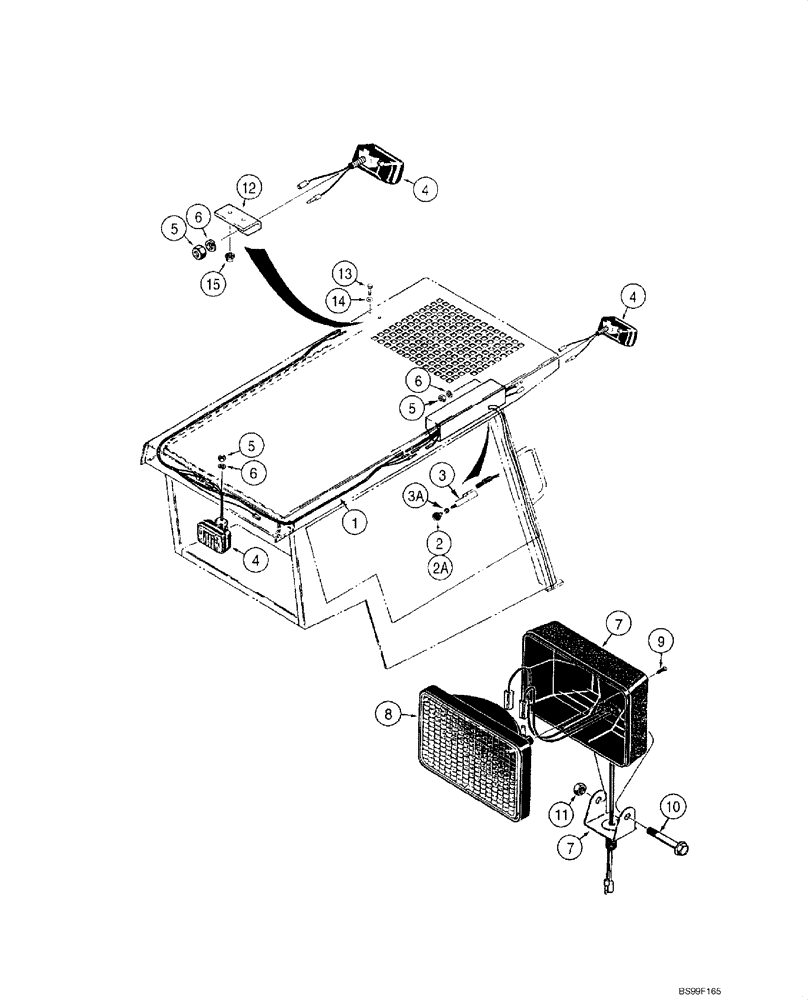

Запчасти Case 1845C (04-08A) - HARNESS - LAMPS, WORK, JAF0040228 - JAF0277352 (04) - ELECTRICAL SYSTEMS

1

D139709

HARNESS

Lamp

1шт.

2

D95781

BUTTON

Lamp; Switch with Lettering

1шт.

2a

108314A1

BUTTON

Lamp; Switch with Lamp Symbol

1шт.

3

D74330

SWITCH

Lamp; Incl. 3A

1шт.

3a

225-14210

NUT,#10-32

1шт.

4

D126237

HEADLIGHT

12V; Incl. 4 - 11

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

N13125

LAMP

Bulb

1шт.

9

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

10

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

11

231-1445

NUT,5/16"-18, GB

1шт.

12

H435451

BRACKET

LH Front; If used

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with H435451

2шт.

14

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Used with H435451

2шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Used with H435451

2шт.
