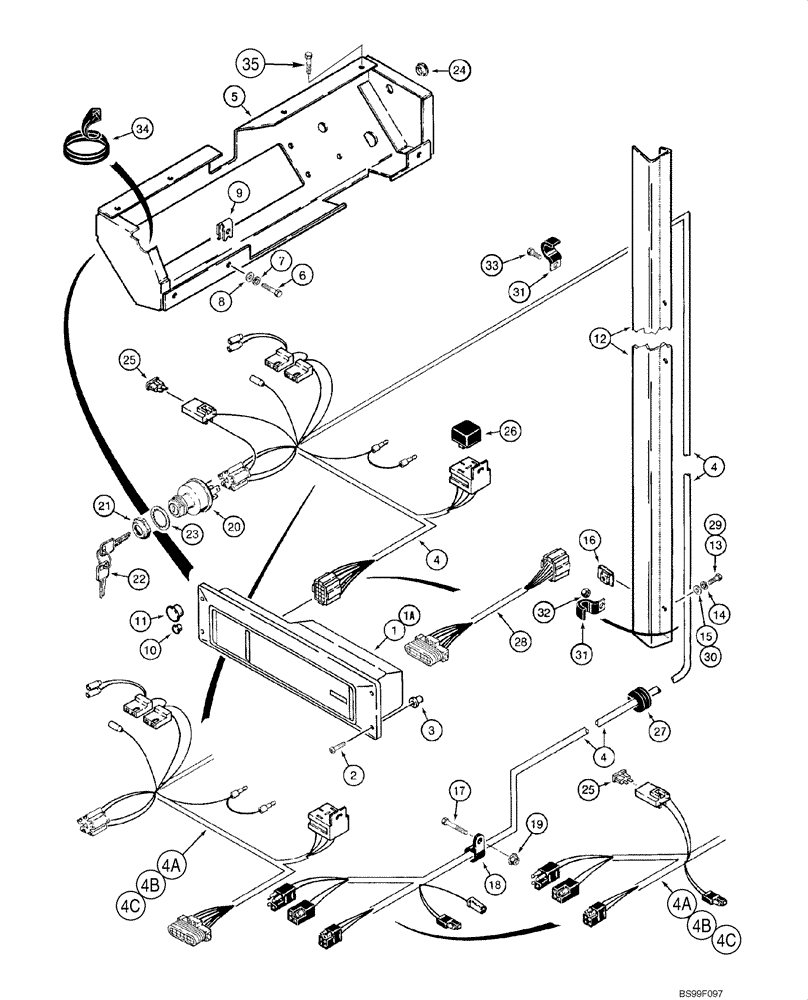

Запчасти Case 1845C (04-06A) - HARNESS - INSTRUMENT CLUSTER, JAF0040228 - JAF0277352 (04) - ELECTRICAL SYSTEMS

1

D139479

PANEL, INSTRUMENTS

PANEL, INSTRUMENT 12 Pin Connector; JAF0040228 - JAF0041368; No Longer Available; For Service Order H438451, Ref 1A, H439038, Ref 28

1шт.

1

H436507

CLUSTER, INSTR.

CLUSTER, INSTRUMENT 12 Pin Connector; JAF0041369 - JAF0081398; No Longer Available; For Service Order H438451, Ref 1A, H439038, Ref 28

1шт.

367530A1R

REMAN-INSTR CLUSTER

1845C (1/86-), Reman For New P/N H436507

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

1a

H438451

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument; 10 Pin Connector; JAF0081399 - JAF0276092

1шт.

367530A1R

REMAN-INSTR CLUSTER

1845C (1/86-), Reman For New P/N H438451

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

1a

367530A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument; 10 Pin Connector; JAF0276093 -

1шт.

367530A1R

REMAN-INSTR CLUSTER

1845C (1/86-)

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

4шт.

4

H438248

HARNESS

Instrument; 12 Pin Connector at Cluster; Replaces H436077; - JAF0081398

1шт.

4a

H439159

HARNESS

Instrument; 10 Pin Connector at Cluster; JAF0081399 -

1шт.

4b

303221A1

HARNESS

Instrument; 10 Pin Connector at Cluster; Emissions Certified Engine Models with Fuel Injection Pump J931397; See Fig 03-09

1шт.

4c

336227A1

HARNESS

Instrument; 10 Pin Connector at Cluster; Emissions Certified Engine Models with Fuel Injection Pump J935677; See Fig 03-10

1шт.

5

H674342

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Replaces H673414

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

492-11025

LOCK WASHER,1/4"

3шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

9

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used

1шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

12

D139504

COVER

If used

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

If used

3шт.

14

492-11025

LOCK WASHER,1/4"

If used

3шт.

15

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If used

3шт.

16

131-610

SPRING NUT,U, Ret, 1/4"-20

If used

3шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

282775A1

IGNITION SWITCH

Incl. 20 - 22; Replaces D134737 switch which used A77313 metal key without padding

1шт.

20

NSS

NOT SOLD SEPARAT

Switch Ignition

1шт.

21

A77314

NUT

1шт.

22

1964831C2

IGNITION KEY

Padded

1шт.

23

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

24

353-405

PLUG,Dome, .562" hole, Nylon

If used

1шт.

25

A149802

FUSE

20 amp; Yellow

1шт.

26

D128310

RELAY

30 amp

1-2шт.

27

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

If used

1шт.

28

H439038

HARNESS

Adapter; If used

1шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

30

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

31

H437729

CLIP

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

33

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

If used

1шт.

34

D52412

RUBBER STRIP

1270 mm (50 in); Cut from F42827

1шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

36

337264A1

SWITCH

Brake; European Models

1шт.
