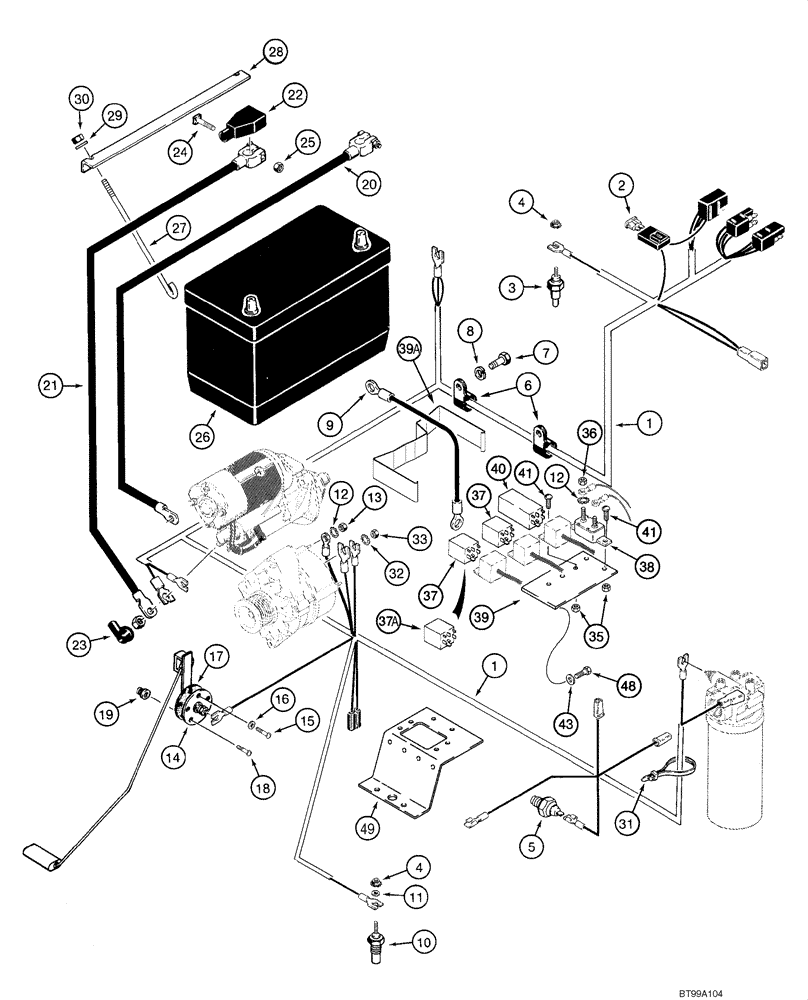

Запчасти Case 1845C (04-05A) - HARNESS, REAR - BATTERY AND CABLES, JAF0040228 - JAF0277352 (04) - ELECTRICAL SYSTEMS

1

H436078

HARNESS

Rear, Models W/ Non-Emissionized Engines

1шт.

1a

294065A3

HARNESS

Rear; Models W/ Emissions Certified Engine W/ Fuel Injection Pump J931397; See Fig 03-09; Not Illustrated

1шт.

3 sockets greyed out are part of harness 294065a3.

1шт.

1b

333577A1

HARNESS

Rear; Models with Emissions Certified Engine with Fuel Injection Pump J935677; See Fig 03-10; Not Illustrated

1шт.

2

A149804

FUSE

30 amp; Light Green

1шт.

3

H439301

SWITCH

Transmission Temperature; Replaces D132280

1шт.

4

193-1000

NUT,Keps, w/LW,#10-32

2шт.

5

A162297

SWITCH

Sender; Oil Pressure

1шт.

5a

277016A1

PRESSURE SWITCH

Oil, M10, JAF0289364 -; Not Illustrated

1шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

D87572

ELECTRICAL WIRE

WIRE Ground

1шт.

10

1983238C1

SENSOR,1/2" - 14

Engine Cooling

1шт.

11

195-513

WASHER,#10

7/32 x 1/2 x 3/64

1шт.

12

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

13

825-1405

NUT,M5, Cl 8

1шт.

14

426332A1

SENDER UNIT

SENDER Fuel Level; Replaces D125062; JAF0289364 -

1шт.

15

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

1шт.

16

D83885

WASHER

1шт.

17

528359R4

GASKET,3.05mm Thk

Replaces 104812C3

1шт.

18

H435859

SCREW,#10 - 32 x 3/4"

4шт.

19

H435860

INSERT

5шт.

20

D132217

CABLE

Negative

1шт.

21

H435586

CABLE

Positive; Incl. 22 - 25

1шт.

22

383619R1

COVER

1шт.

23

D128016

BOOT

1шт.

24

117-107

BOLT

5/16 x 1-1/2; 2

1шт.

25

425-105

NUT,5/16"-18, G5

1шт.

26

BMF31E

DRY BATTERY

12V

1шт.

27

D49723

BOLT

2шт.

28

D84224

BRACKET

1шт.

29

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

30

232-4116

NUT,3/8"-16, GC

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

32

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

33

825-1408

NUT,M8, Cl 8

1шт.

34

291241A1

HARNESS

Seat; Operator Present; Not Illustrated

1шт.

35

230-42409

NUT,#10-24, GA

5шт.

36

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

Replaces 230-42409

3шт.

37

D128310

RELAY

30 amp; If used

1-2шт.

37a

314451A1

RELAY

45 amp; Heavy Duty; If used

1шт.

37b

225077C1

TERMINAL CONNECTOR

For 1.0mm - 2.0mm Wire

1шт.

37c

225078C1

TERMINAL

Terminal For 3.0mm Wire

1шт.

38

A22877

BREAKER,40A

40 amp; Heavy Duty; Replaces 303886A1; If used

1шт.

39

300455A3

SUPPORT

Replaces 300455A2; - JAF0276092

1шт.

39a

315648A1

CLIP,ELECTRICAL

- JAF0276092

1шт.

40

300855A1

RELAY

Sealed Time Delay

1шт.

41

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2-5шт.

42

H439303

CLIP

Not Illustrated

1шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") - JAF0276092

1шт.

44

H435820

SWITCH

Neutral Start; Incl. Hardware; Not Illustrated

1шт.

45

H435814

U-BOLT

Not Illustrated

1шт.

46

193-1003

NUT,Keps, w/LW,#6-32

Not Illustrated

2шт.

47

H436183

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

48

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- JAF0276092

1шт.

49

331977A1

SUPPORT

1шт.
