Запчасти Case 1845C (04-03) - ALTERNATOR ASSY, JAF0068231 - (04) - ELECTRICAL SYSTEMS

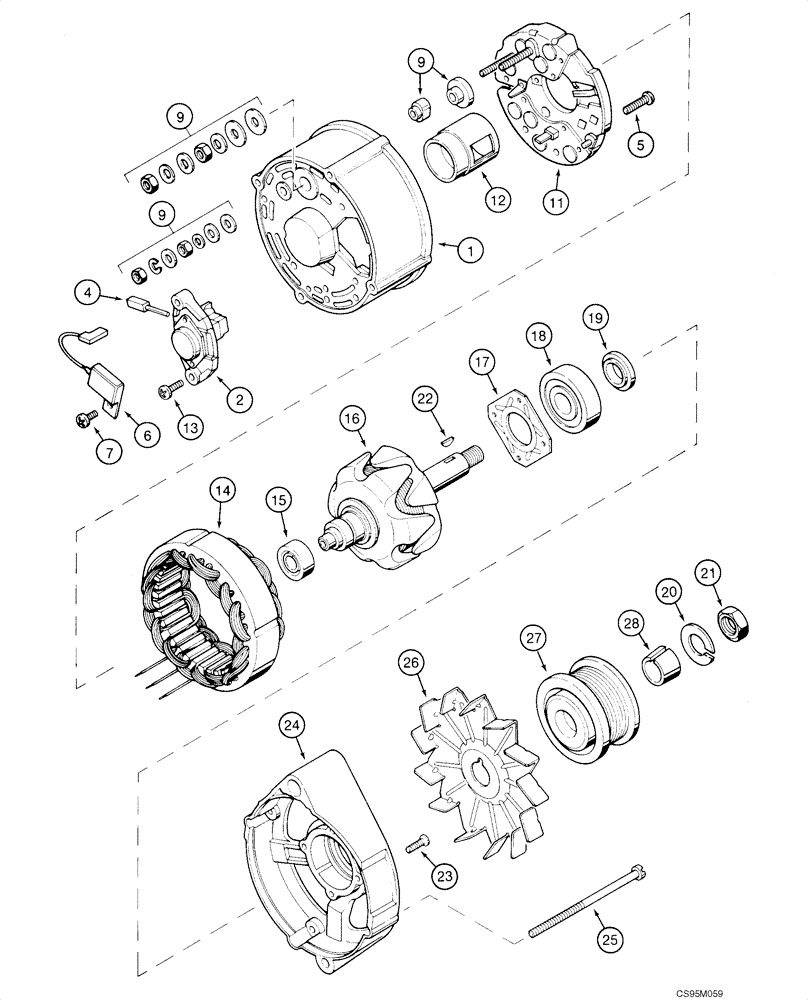

Схема запчастей Case 1845C - (04-03) - ALTERNATOR ASSY, JAF0068231 - (04) - ELECTRICAL SYSTEMS
24
27
2
15
11
19
13
12
17
22
26
5
9
9
20
18
1
9
23
6
14
4
21
28
25
7
16

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; Incl. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65 Amp

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

A187903

COVER

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set of 2

1шт.

5

A186194

SCREW,M4 x 18mm

Replaces 1530431C1 or A187898

2шт.

6

3079134R1

CAPACITOR

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

Replaces 1964969C1

1шт.

9

A187904

MULTIPOLE CONNECTOR

Terminal Connecting Parts

1шт.

11

360330A1

RECTIFIER

Replaces A187917

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

2шт.

14

A187995

STATOR

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

Small Inner; Replaces A186186

1шт.

16

1987499C1

ROTOR

Replaces 1964964C1

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Large Outer

1шт.

3078897R1

SET OF PARTS

Kit, Retainer; Incl. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A187994

HOUSING

Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Order Separately

1шт.

27

J908560

PULLEY

Order Separately

1шт.

28

J908563

RETAINER

Order Separately

1шт.

Выбрано товаров: 35
