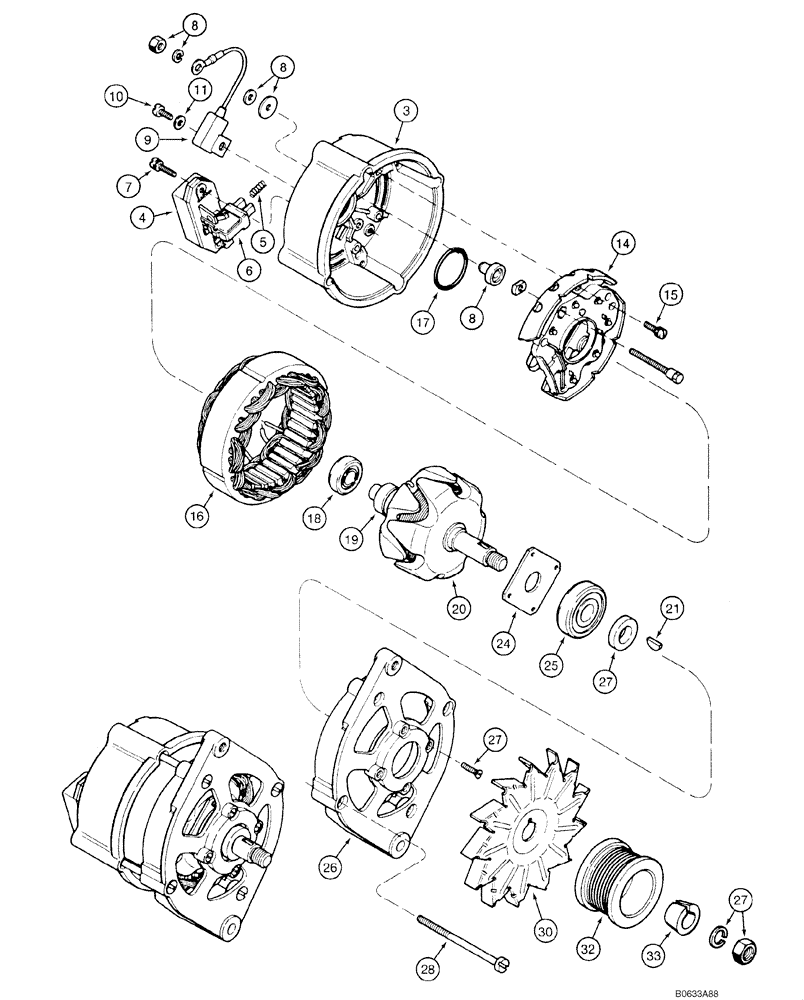

Запчасти Case 1845C (04-02) - ALTERNATOR ASSY, - JAF0068230 (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

Incl. 3 - 28; No Longer Available, Order A187873; See Fig 04-03; Also Order 12 - 16

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

3

A186187

HOUSING

1шт.

4

A186189

REGULATOR

Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

2шт.

6

NSS

NOT SOLD SEPARAT

Brush

1шт.

7

A186194

SCREW,M4 x 18mm

2шт.

8

3079135R1

TERMINAL CONNECTOR

Terminal

1шт.

9

A186195

CAPACITOR

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

1шт.

11

A186196

WASHER

1шт.

14

A186197

RECTIFIER

1шт.

15

A186188

SCREW

3шт.

16

A186192

STATOR

1шт.

17

3079386R1

O-RING

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

19

A186185

RING

1шт.

20

A186184

ROTOR

1шт.

21

NSS

NOT SOLD SEPARAT

Key; No Longer Used; Order 3078897R1, Ref 27

1шт.

24

3078379R1

COVER

Not Used

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

4шт.

26

A186182

HOUSING

Drive End

1шт.

27

3078897R1

SET OF PARTS

Kit, Retainer; See Fig 04-02, Ref 19 - 23

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

30

221425R1

FAN

Order Separately

1шт.

32

J908560

PULLEY

Order Separately

1шт.

33

J908563

RETAINER

Order Separately

1шт.
