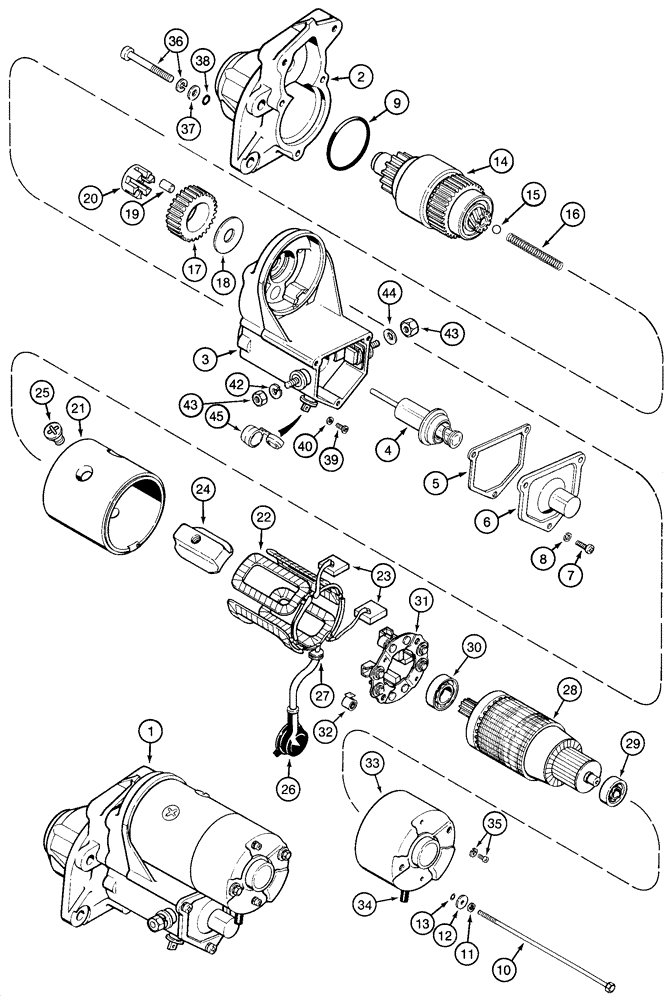

Запчасти Case 1845C (04-01) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

Incl. 2 - 45; No Longer Available, Order 1987559C1

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

AR170746

STARTING MOTOR

Remanufactured; North America Only; No Longer Available, Order 1987559C1

1шт.

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN AR170746

1шт.

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

AC170746

CORE-STARTER

Return Number

1шт.

1

1987559C1

STARTING MOTOR

Incl. 2 - 45; No Longer Available, Order 86982709, See Fig 04-01A

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

2

A46948

HOUSING

1шт.

3

A46949

IGNITION SWITCH

Incl. 4 - 8; Used with A170746

1шт.

3

104588A1

SOLENOID

Incl. 4 - 8; Used with 1987559C1

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Cover Sheet

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

3шт.

8

NSS

NOT SOLD SEPARAT

Washer

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47243

BOLT

Incl. 10 - 13

2шт.

10

A47128

BOLT

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

1шт.

REF

INSTRUCTION

Starter Assy

1шт.

14

A52396

DRIVE

Used with A170746

1шт.

14

104587A1

CLUTCH

Used with 1987559C1

1шт.

15

211-209

BALL

11/32; 24, CRS; Used with A170746

1шт.

15

211-1311

BALL,11/32" Dia

200, CRS; Used with 1987559C1

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

1шт.

18

A47234

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

Incl. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Coil Assy

1шт.

23

NSS

NOT SOLD SEPARAT

Brush

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe

4шт.

25

NSS

NOT SOLD SEPARAT

Screw

4шт.

26

NSS

NOT SOLD SEPARAT

Boot

1шт.

27

A47241

PLATE

1шт.

28

A47242

ARMATURE

Incl. 29, 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

Drive End

1шт.

31

A47239

HOLDER

Incl. 32

1шт.

32

A47249

SPRING

4шт.

33

A47237

FRAME

Commutator End

1шт.

34

A47238

COVER

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

Incl. Washer

2шт.

A47230

BOLT

Incl. 36 - 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

38

A47130

O-RING

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

Used with A170746

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

M5 x 8; Used with 1987559C1

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

Used with A170746

1шт.

40

892-11005

LOCK WASHER,M5

Used with 1987559C1

1шт.

42

492-11038

LOCK WASHER,3/8"

Used with A170746

1шт.

42

892-11010

LOCK WASHER,M10

Used with 1987559C1

1шт.

43

425-146

JAM NUT,3/8" - 16, Gr 5

Used with A170746

1шт.

43

825-1410

NUT,M10, Cl 8

1шт.

44

A10454

WAVE WASHER

1шт.

45

104589A1

BUSHING

Used with 1987559C1

1шт.
