(03-12) - FUEL INJECTION - NOZZLE, 4-390 ENGINE (7MM TIP)

Запчасти Case 1845C (03-12) - FUEL INJECTION - NOZZLE, 4-390 ENGINE (7MM TIP) (03) - FUEL SYSTEM

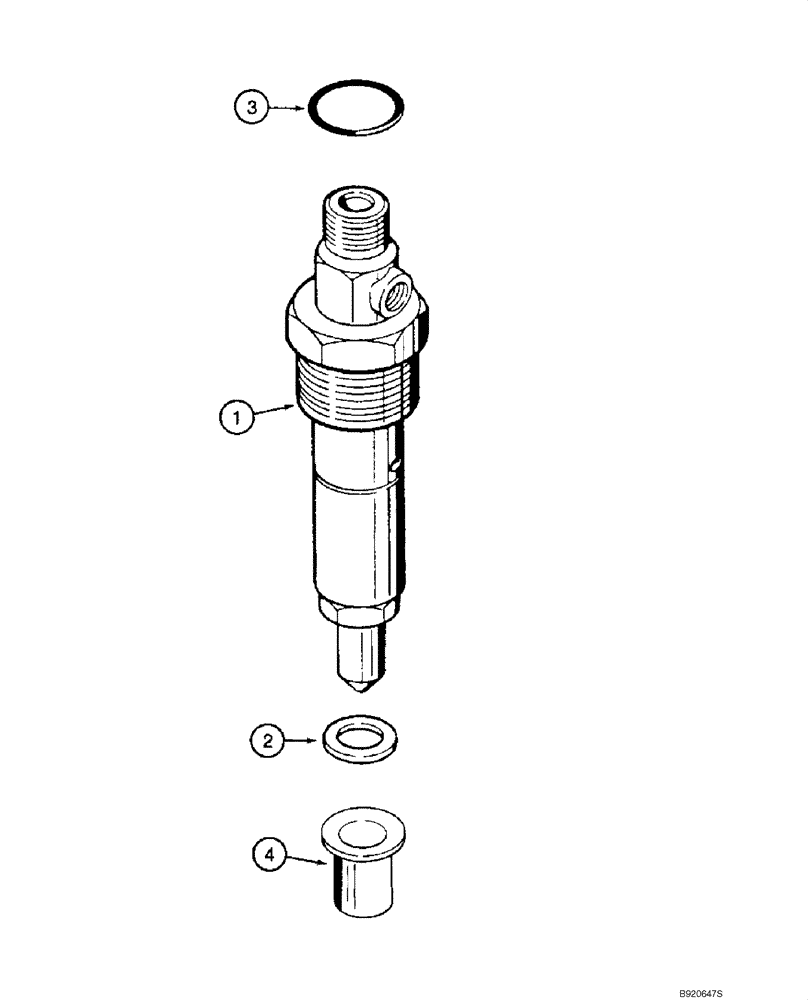

Схема запчастей Case 1845C - (03-12) - FUEL INJECTION - NOZZLE, 4-390 ENGINE (7MM TIP) (03) - FUEL SYSTEM
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919331

NOZZLE INJECTION

Incl. 2

4шт.

1

JR919331

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

4шт.

1

JC919331

CORE-FUEL INJECTOR

Return Part Number, injection pump

4шт.

2

J906659

SEAL

1.5 mm; Replaces J920174

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

4

J919358

ADAPTER

Adapts 7 mm Nozzle to 9 mm Hole; If used

4шт.
