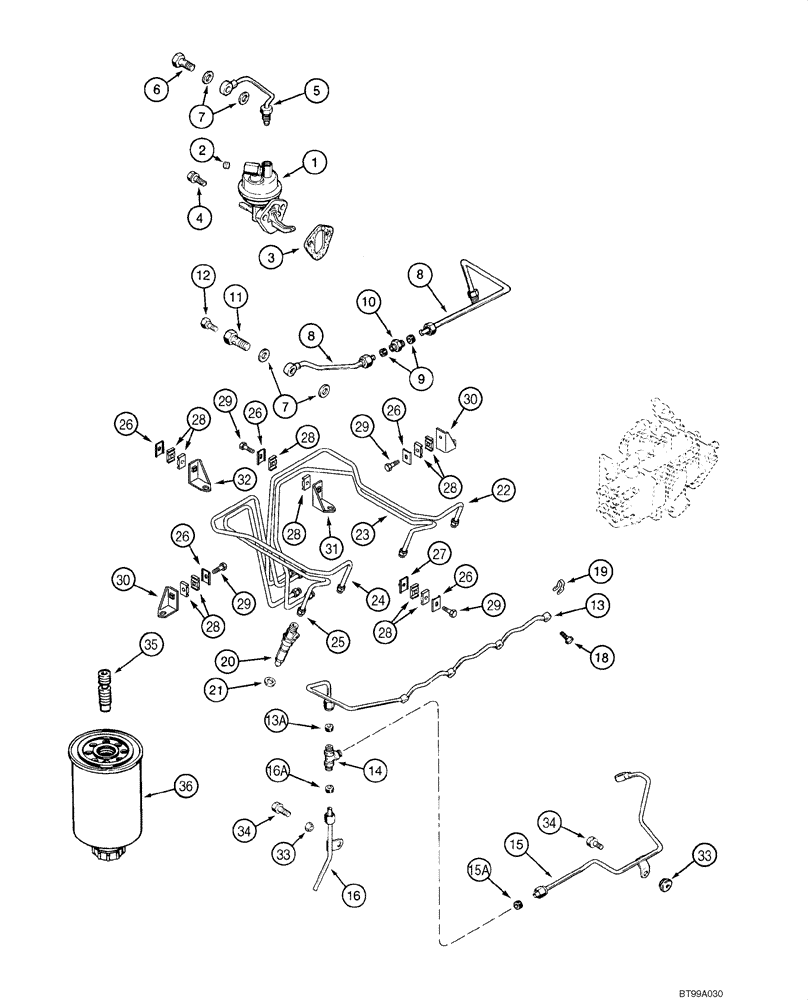

Запчасти Case 1845C (03-05) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (03) - FUEL SYSTEM

1

87416017

PUMP

Replaces J928143

1шт.

2

221-841

PLUG

1/4 PT

1шт.

3

J939258

GASKET,1.21mm Thk

Mounting; Replaces J931059

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

1шт.

6

J903035

BANJO BOLT

M12 x 24

1шт.

7

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm; Replaces J918191, J935171

4шт.

8

J918640

FUEL TUBE

Incl. 9, 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

5/16 OD

1шт.

J905860

BANJO BOLT

Incl. 11, 12

1шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

M6 x 10

1шт.

13

J909695

FUEL TUBE

Incl. 13A

1шт.

13a

222-101

SLEEVE,3/16" Tube

1шт.

14

222-121

TEE,3/16", Flex Tubing

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

Incl. 15A

1шт.

15a

222-101

SLEEVE,3/16" Tube

1шт.

16

J905692

FUEL TUBE

Incl. 16A

1шт.

16a

222-101

SLEEVE,3/16" Tube

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

19

J903380

SEAL

4шт.

20

J935213

INJECTOR ASSY.

See Fig 03-13, 03-14

4шт.

20

JR935213

REMAN-FUEL INJECTOR

REMANUFACTURED INJECTION NOZZLE

4шт.

20

JC935213

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

21

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm; See Fig 03-13, 03-14

4шт.

22

J935691

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

23

J935693

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

24

J935696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

25

J935698

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4

1шт.

26

CURJ904711

CLAMP

8шт.

27

J907546

BRACE

4шт.

28

J917746

CLAMP

16шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

8шт.

30

J935746

BRACE

2шт.

31

J935748

BRACE

1шт.

32

J935700

BRACE

1шт.

33

J928759

SEALING WASHER

4шт.

34

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Replaces 845-8016

4шт.

35

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

36

J931062

FILTER

Fuel; No Longer Available, Order J286503

1шт.

36

J286503

FUEL FILTER

1шт.
