Запчасти Case 1845C (03-04) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (03) - FUEL SYSTEM

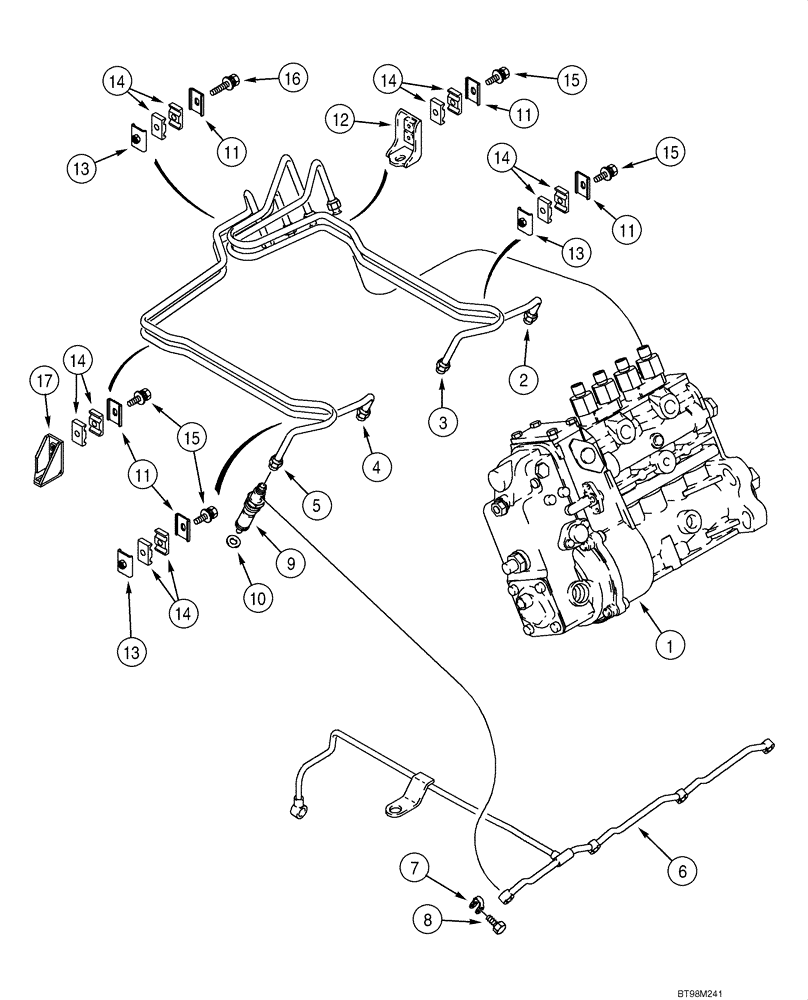

Схема запчастей Case 1845C - (03-04) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (03) - FUEL SYSTEM
11
14
8
11
2
14
5
15
4
17
1
12
13
3
11
15
15
14
6
9
11
14
13
7
10
14
13
16

Артикул

Название

Примечание

Количество

1

J931397

PUMP, FUEL INJECTION

PUMP, INJECTION See Fig 03-09

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J932160

FUEL TUBE,750 mm L

No. 4

1шт.

6

J927633

TUBE

1шт.

7

J903380

SEAL

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

9

REF

INSTRUCTION

Nozzle Assy; See Fig 03-13, 03-14

4шт.

10

REF

INSTRUCTION

Seal, 0.5 mm; See Fig 03-13, 03-14

4шт.

11

CURJ904711

CLAMP

5шт.

12

J282942

BRACKET

1шт.

13

J917717

BRACE

3шт.

14

J917746

CLAMP

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

1шт.

17

J919086

BRACKET

1шт.

Выбрано товаров: 17
