REF
INSTRUCTION

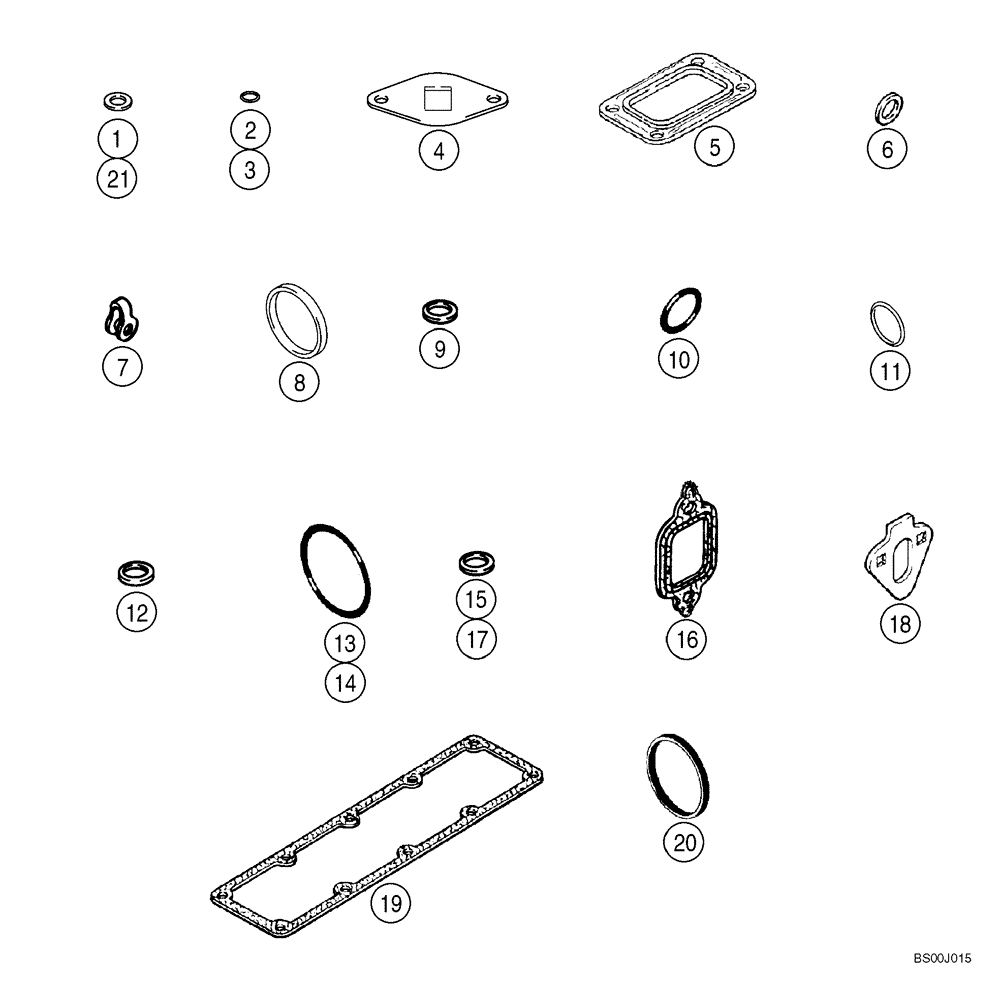

4T-390 EMISSIONS CERTIFIED ENGINE
1шт.
A77994
GASKET KIT
Incl. 1 - 21
1шт.
1
222-993
GASKET,3/8 Tube, Fl, Copper
Not Used in this Application
2шт.
2
238-5013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
See Fig 02-09A; Not Illustrated
2шт.
3
637-62081
O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro
See Fig 03-05, 03-05A
1шт.
4
J937706
GASKET,0.79mm Thk
Mounting; Not Used in this Application
2шт.
5
J919369
GASKET,0.5mm Thk
Mounting; Not Used in this Application
1шт.
6
J902425
SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk
See Fig 02-09A
1шт.
7
J903380
SEAL
See Fig 03-04
4шт.
8
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
See Fig 02-08
1шт.
9
J937142
SEAL,7mm ID x 15mm OD x 1.5mm Thk
1.5 mm; Replaces J906659; See Fig 03-04, 03-06
4шт.
10
J906696
SEAL,41mm ID x 43mm OD x 2.5mm H
38 mm ID
1шт.
11
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
50 mm ID; See Fig 02-11
1шт.
12
J909356
SEAL,Square, 1.68mm Thk x 15.6mm ID, -16
15.6 ID x 1.68 wide; See Fig 03-06
4шт.
13
J910517
O-RING
See Fig 02-15
1шт.
14
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING See Fig 02-17
1шт.
15
J923261
WASHER,7.2mm ID x 15mm OD x 2.5mm Thk
2.5 mm; Not Used in this Application
1шт.
16
J927154
GASKET,0.38mm Thk
Manifold; See Fig 02-09
4шт.
17
J930324
SEAL
0.5 mm; Not Used in this Application
1шт.
18
J939258
GASKET,1.21mm Thk
Mounting; Replaces J931059; See Fig 03-04A
1шт.
19
J938153
MANIFOLD GASKET,0.8mm Thk
Manifold; See Fig 02-09
1шт.
20
J935032
SEAL
See Fig 03-05, 03-05A
3шт.
21
87415913
SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk
12 x 19 x 1.5 mm; See Fig 02-05; Replaces J935171
4шт.
