Запчасти Case 1845C (02-46) - GASKET KIT - BASIC SERVICE ENGINE 349469A1, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

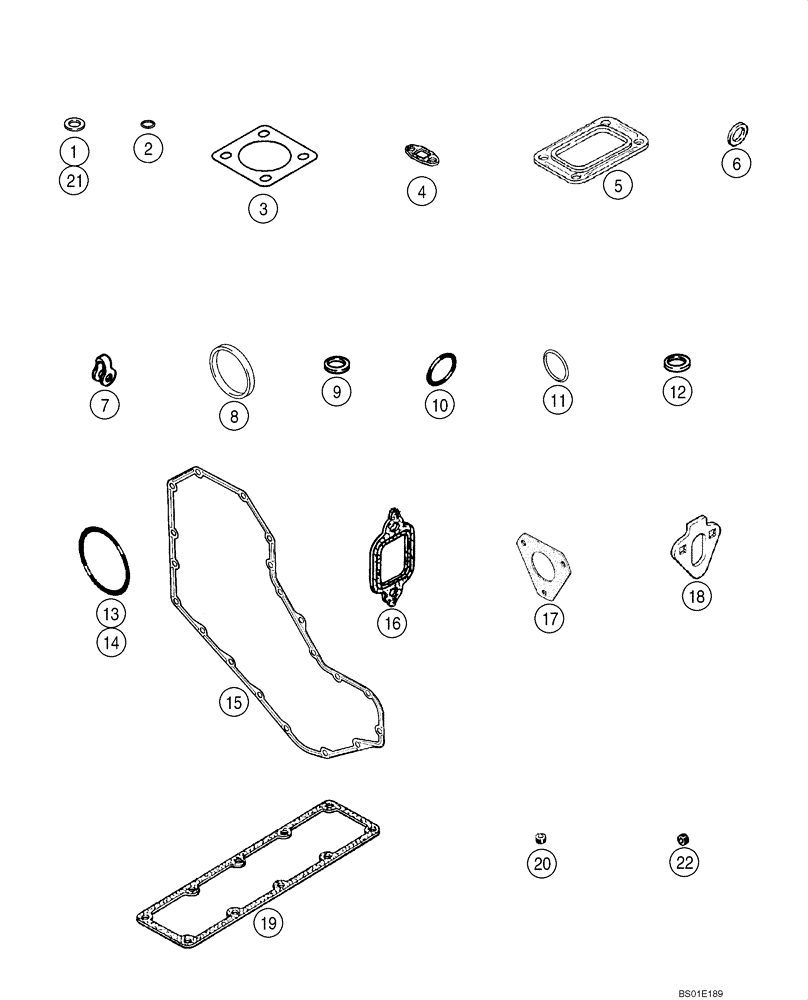

Схема запчастей Case 1845C - (02-46) - GASKET KIT - BASIC SERVICE ENGINE 349469A1, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE
16
13
8
14
17
4
7
22
5
2
1
12
11
18
20
6
3
9
15
19
10
21

Артикул

Название

Примечание

Количество

A77993

GASKET KIT

Incl. 1 - 21; Basic Service Engine 349469A1

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

Not Used in this Application

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Fig 02-06; Not Illustrated

2шт.

3

J912220

GASKET,0.4mm Thk

Pipe; See Fig 02-02

1шт.

4

J937706

GASKET,0.79mm Thk

Mounting; Not Used in this Application

2шт.

5

J919369

GASKET,0.5mm Thk

Mounting; Not Used in this Application

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Fig 02-08

1шт.

7

J903380

SEAL

See Fig 03-04, 03-05

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Fig 02-11, 02-12

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm; Not Used in this Application

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used in this Application

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Fig 02-28, 02-29

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Fig 03-13, 03-14

4шт.

13

J910517

O-RING

See Fig 02-28, 02-29

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Fig 02-33

1шт.

15

J914385

GASKET,1.02mm Thk

Cover; See Fig 02-12

1шт.

16

J927154

GASKET,0.38mm Thk

Manifold; See Fig 02-14

4шт.

17

87413428

GASKET,1.2mm Thk

Mounting; Replaces J931607; See Fig 03-10

1шт.

18

J939258

GASKET,1.21mm Thk

Mounting; See Fig 03-05, 03-07

1шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; See Fig 02-14

1шт.

20

222-101

SLEEVE,3/16" Tube

See Fig 03-05

3шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; Replaces J935171; See Fig 02-06, 03-05

4шт.

22

222-103

SLEEVE,5/16" Tube

See Fig 03-05

4шт.
