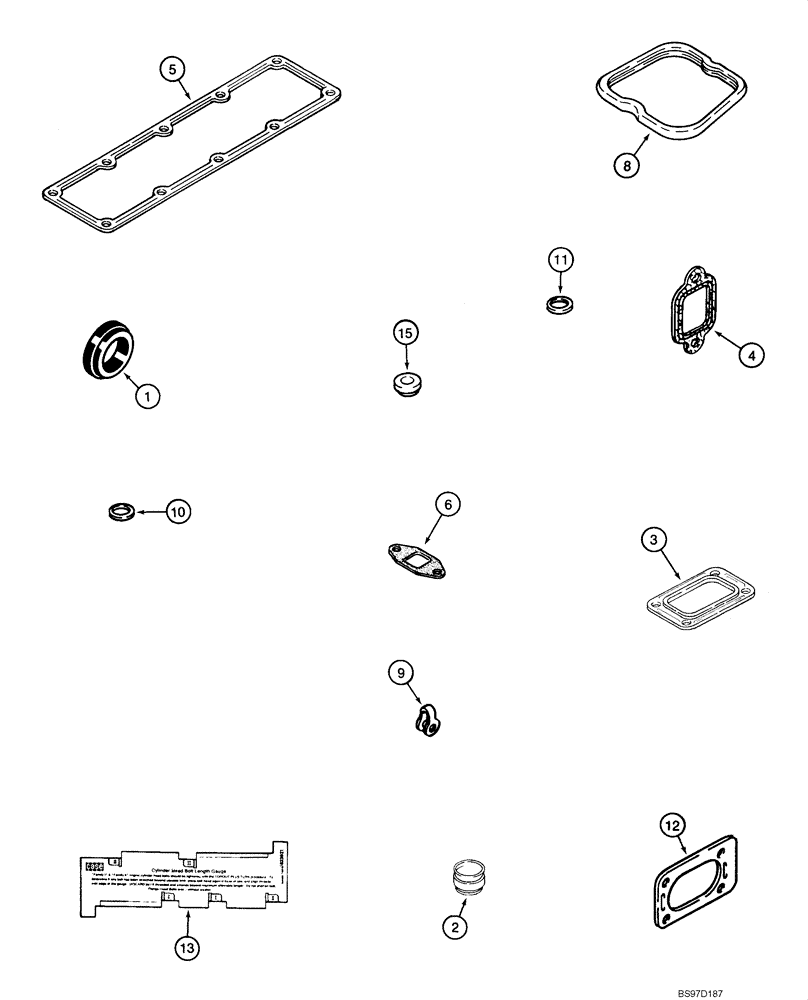

Запчасти Case 1845C (02-39) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J931397) (02) - ENGINE

A77870

SEAL PACKAGE

Engine No. - 45636368, 45705902 - ; Incl. 1 - 15; No Longer Available, Order 87434406, See Fig 02-42

1шт.

1

J923331

GASKET

Housing; See Fig 02-20

1шт.

2

J901097

SEAL

See Fig 02-23; No Longer Available; Order J921640

4шт.

2

J921640

SEAL

See Fig 02-23

4шт.

3

J919369

GASKET,0.5mm Thk

Not Used in this Application

1шт.

4

J905443

MANIFOLD GASKET

Manifold; See Fig 02-14; No Longer Available, Order J927154

4шт.

4

J927154

GASKET,0.38mm Thk

See Fig 02-14

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; Replaces J931605, J9140281; See Fig 02-14

1шт.

6

J931350

GASKET

Not Used in this Application

1шт.

8

J930906

GASKET

See Fig 02-20

4шт.

9

J903380

SEAL

See Fig 03-04

4шт.

10

J906659

SEAL

1.5 mm; See Fig 03-13

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Fig 03-13

4шт.

12

J914856

GASKET,1.02mm Thk

Not Used in this Application

1шт.

13

J823921

GAUGE

1шт.

15

J928406

ISOLATOR

Not Used in this Application

5шт.
