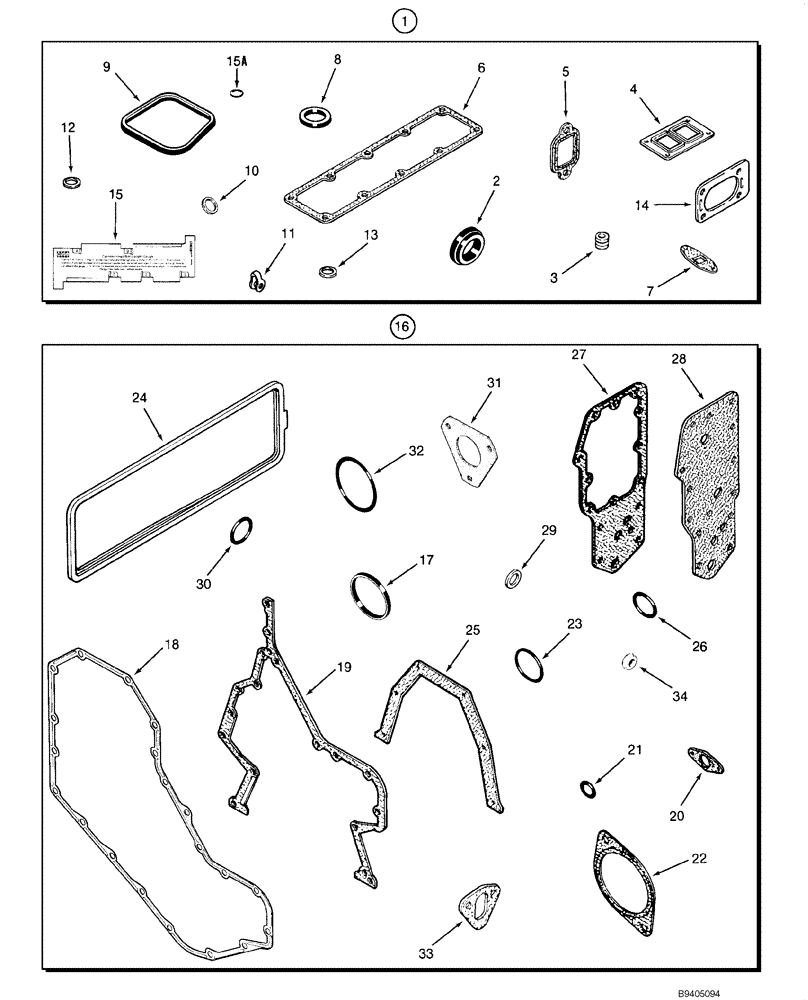

Запчасти Case 1845C (02-38) - GASKET KIT - VALVE GRIND, 4-390 ENGINE (02) - ENGINE

1

A77672

GASKET KIT

Incl. 2 - 12; No Longer Available, Order A77858

1шт.

1

A77858

GASKET KIT

Replaces A77672, A77792; Order 87434406, See Fig 02-42

1шт.

2

J923331

GASKET

Housing; Replaces J920020; See Fig 02-17

1шт.

3

J921640

SEAL

See Fig 02-21; Replaces J901097

8шт.

4

J919369

GASKET,0.5mm Thk

Replaces J901356; Not Used in this Application

1шт.

5

J905443

MANIFOLD GASKET

Manifold; See Fig 02-13; No Longer Available, Order J927154

4шт.

5

J927154

GASKET,0.38mm Thk

See Fig 02-14

4шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; See Fig 02-13; Replaces J931605, J9140281

1шт.

7

J931350

GASKET

Replaces J914388, J928919; Not Used in this Application

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

See Fig 02-10

1шт.

9

J930906

GASKET

Replaces J902666, J929795; See Fig 02-19

4шт.

10

J900808

SEAL

See Fig 03-11

4шт.

11

J903380

SEAL

See Figs 03-03, 03-11

4шт.

12

J906659

SEAL

1.5 mm; See Fig 03-12

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Used with A77858; See Figs 03-11, 03-12

4шт.

14

J914856

GASKET,1.02mm Thk

Used with A77858; Not Used in this Application

1шт.

15

J823921

GAUGE

1шт.

15a

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Replaces J282133; See Fig 02-19

4шт.

15b

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Used with A77858; Not Used in this Application; Not Illustrated

4шт.

16

A77860

GASKET KIT

Incl. 17 - 34; Replaces A77671

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Fig 02-10

1шт.

18

J914385

GASKET,1.02mm Thk

See Fig 02-10

1шт.

19

J938156

GASKET,0.79mm Thk

Replaces J916131, J931351; See Fig 02-10

1шт.

20

J905595

GASKET

Not Used in this Application

1шт.

21

J913994

O-RING

See Fig 02-10

1шт.

22

J929751

GASKET

Replaces J913192, J919601; See Fig 02-10

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Fig 02-08

1шт.

24

J283767

GASKET,7.4mm Thk

Replaces J904056, J922078; See Fig 02-26

1шт.

25

J938159

GASKET

Replaces J928493, J914386, J928493; See Fig 02-30

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Fig 02-26

1шт.

27

J942914

GASKET

Replaces J914387, J918256; See Fig 02-15

1шт.

28

J929792

GASKET,1.2mm Thk

Replaces J912532, J918257; See Fig 02-15

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Fig 02-17

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used in this Application

1шт.

31

J931607

GASKET

Replaces J914389; See Fig 03-08

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Fig 02-32

1шт.

33

J939258

GASKET,1.21mm Thk

Replaces J914304, J931059; See Fig 03-03

1шт.

34

J928759

SEALING WASHER

Replaces J900267; See Fig 02-26

4шт.
