(02-32) - FLYWHEEL AND HOUSING, 4-390 ENGINE

Запчасти Case 1845C (02-32) - FLYWHEEL AND HOUSING, 4-390 ENGINE (02) - ENGINE

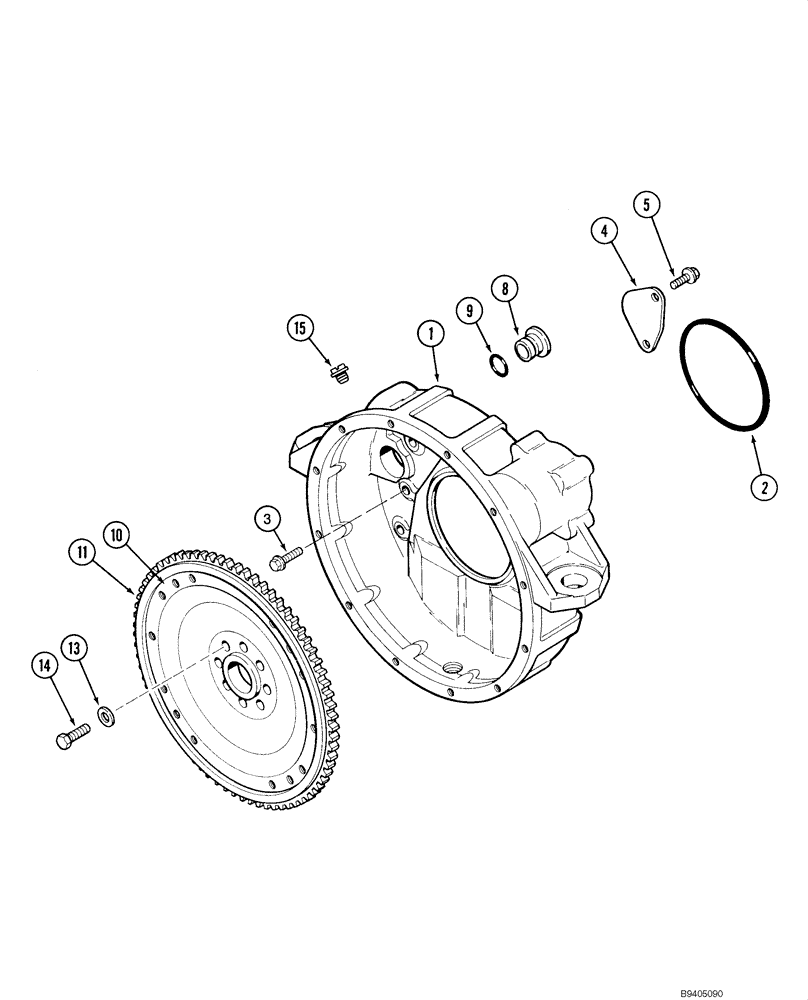

Схема запчастей Case 1845C - (02-32) - FLYWHEEL AND HOUSING, 4-390 ENGINE (02) - ENGINE
13
2
3
15
9
14
4
11
8
1
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J931714

HOUSING

Replaces J903287

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

Replaces J908095

1шт.

5

J912072

SELF-TAP SCREW

M8 x 21; Replaces J902735

2шт.

8

J910248

PLUG

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Replaces 253070R1

1шт.

10

J287009

FLYWHEEL

Incl. 11; Replaces J910283

1шт.

11

J901774

GEAR,Flywheel

159 T

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.
