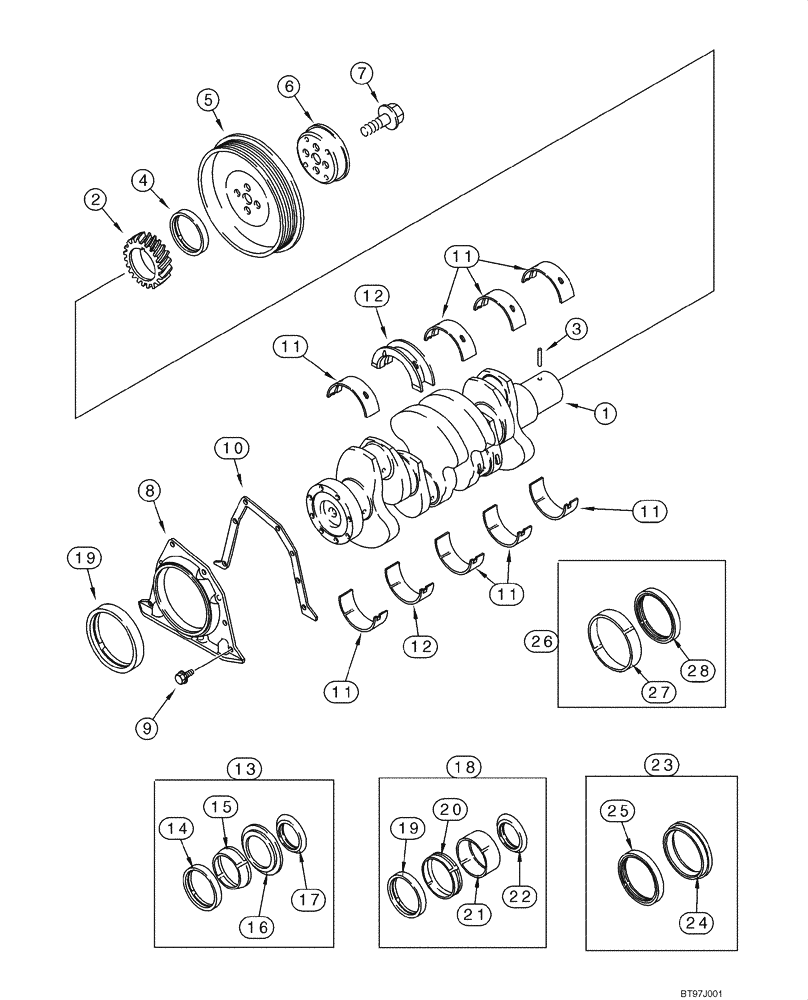

Запчасти Case 1845C (02-31) - CRANKSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

JR908031

CRANKCASE

Remanufactured; North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

1845C EMISSIONS, ASN JAF0250483 (1/86-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

1845C EMISSIONS, ASN JAF0250483 (1/86-), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Order A77889, Ref 13

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

Replaces J921043

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9; Replaces 845-6015

6шт.

10

J938159

GASKET

Replaces J928493

1шт.

11

J804940

BEARING SET

Standard

4шт.

11

A77472

BEARING SET

Undersize 0.25 mm

4шт.

11

A77474

BEARING SET

Undersize 0.50 mm

4шт.

11

A77476

BEARING SET

Undersize 0.75 mm

4шт.

11

A77478

BEARING SET

Undersize 1.00 mm

4шт.

12

A77895

THRUST BEARING,KIT

Standard

1шт.

12

A77473

THRUST BEARING

Undersize 0.25 mm

1шт.

12

A77475

THRUST BEARING

Undersize 0.50 mm

1шт.

12

A77477

THRUST BEARING

Undersize 0.75 mm

1шт.

12

A77479

THRUST BEARING

Undersize 1.00 mm

1шт.

12

A77841

THRUST BEARING

Undersize 0.50 mm; Oversize 0.50 mm

1шт.

12

A77840

THRUST BEARING

Undersize 1.00 mm; Oversize 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

Front; Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Front; Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Rear; Incl. 24, 25; Replaces A77809, J353978

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Sleeve; Rear; Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
